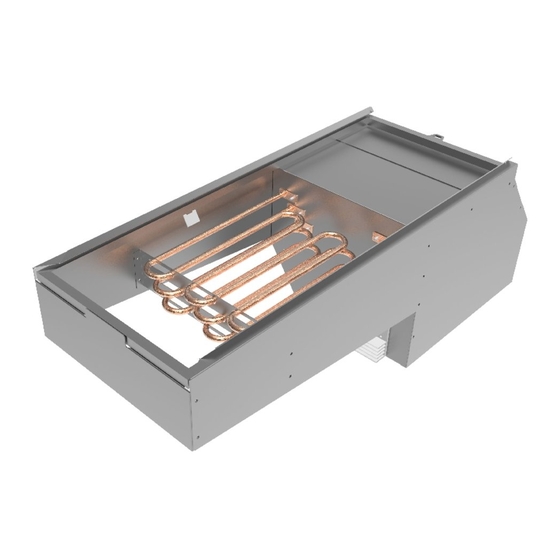

Topvex Series
Compact Air Handling Unit
HWC - Hot Water Coil
EPH - Electric Pre-Heater
Installation Instructions
Item#: 420353
2014-06-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Topvex Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SystemAir Topvex Series

Summary of Contents for SystemAir Topvex Series

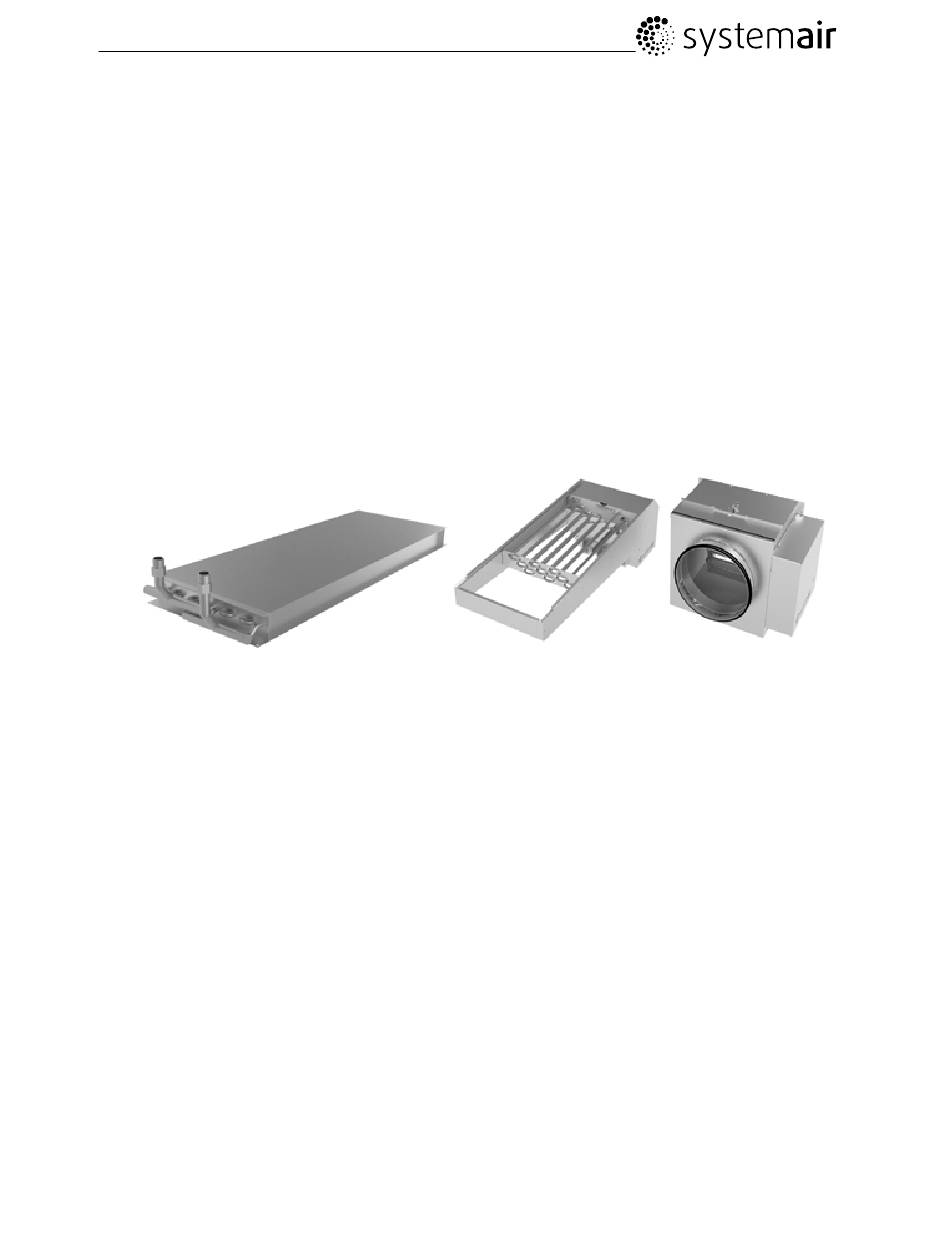

  • Page 1 Topvex Series Compact Air Handling Unit HWC - Hot Water Coil EPH - Electric Pre-Heater Installation Instructions Item#: 420353 2014-06-09...

  • Page 2: Table Of Contents

    Contents 1 Warnings ..............................1 2 Mounting of Water heating Coil ........................1 2.1 hW Installation in Topvex FR800-3800 (Re-heat) ...................1 2.2 hW Installation in Topvex TR800-4000 (Re-heat) ...................3 2.3 Configuring the Software for HW (Re-Heat) ....................5 2.4 hW Installation in Topvex FR800-3800 (Pre-heat) ..................7 2.5 hW Installation in Topvex TR800-4000 (Pre-heat) ..................9 2.6 Configuring the Software for HW (Pre-Heat) ..................11 3 Mounting of EL Pre-heater ........................14 3.1 EL Pre-heater Installation for Topvex FR800-3800 ................14...

  • Page 3: Warnings

    * Sealing grommets are required on outside of unit only. Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 4 • Take care not to damage the water battery when connecting water pipes to connectors. Use a spanner to tighten the connection. Connect all necessary accessories such as water valves and valve actuators. See enclosed wiring diagram for more information. HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 5: Hw Installation In Topvex Tr800-4000 (Re-Heat)

    2.2 HW installation in Topvex TR800-4000 (Re-Heat) Remove the cover plate by unscrewing 3 screws. Insert the water heating coil as illustrated in the figure. Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 6 • Take care not to damage the water battery when connecting water pipes to connectors. Use a Replace the cover plate and fasten it with 2 screws spanner to tighten the connection. (pos. 1). HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 7: Configuring The Software For Hw (Re-Heat)

    Go back 2 steps using the LEFT arrow button. 4 Configuration menu Man/auto Go to Configuration by using the UP/DOWN Settings arrow buttons. Select by pressing the RIGhT arrow button. →Configuration Access Rights Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 8 YYYY-MM-DD HH:MM the unit status display. SYSTEM: STOPPED ACT: ºF ↓ The unit is now ready to be used with the installed water heating coil. HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 9: Hw Installation In Topvex Fr800-3800 (Pre-Heat)

    Insert the water heating coil in front of the outdoor air connection and push the connection tubes through the prepared holes in the unit gable. Re-install the bag filter and frame. Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 10 • Take care not to damage the water battery when connecting water pipes to connectors. Use a spanner to tighten the connection. Connect all necessary accessories such as water valves and valve actuators. See enclosed wiring diagram for more information. HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 11: Hw Installation In Topvex Tr800-4000 (Pre-Heat)

    2.5 HW Installation in Topvex TR800-4000 (Pre-Heat) Insert the water heating coil as illustrated in the figure. Connect plug and outdoor air sensor onto existing bracket. Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 12 Connect all necessary accessories such as water valves and valve actuators. See enclosed wiring diagram for more information Replace the cover plate and fasten it with 2 screws (pos. 1). HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 13: Configuring The Software For Hw (Pre-Heat)

    Go back 2 steps using the LEFT arrow button. 4 Configuration menu Man/auto Go to Configuration by using the UP/DOWN Settings arrow buttons. Select by pressing the RIGhT arrow button. →Configuration Access Rights Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 14 Go back 1 step using the LEFT arrow button. 10 Universal input Go to UI by using the UP/DOWN arrow buttons. Select by pressing the RIGhT arrow button. →UI HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 15 Use the DOWN arrow button to select Control Unit: Heating mode extra and press OK. Select Heating by using the UP/DOWN buttons. Confirm by pressing OK. Go back 1 step using the LEFT arrow button. Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 16: Mounting Of El Pre-Heater

    • If the unit is installed in a cold place make sure that all joints are covered with insulation, and tape well • Duct connections/duct ends should be covered during storage and installation HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions • Do not connect tumble dryers to the ventilation system Systemair Inc.

  • Page 17: El Ptr-Heater Installation For Topvex Tr Models

    Connect pre-heater (pos. 8 figure 1) by removing • Beware of sharp edges during mounting and maintenance. Make sure that a proper lifting device is both protective caps used. Use protective clothing. Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Caution Systemair Inc.

  • Page 18: Configuring The Software For El Pre-Heater

    Go back 2 steps using the LEFT arrow button. 4 Configuration menu Man/auto Go to Configuration by using the UP/DOWN Settings arrow buttons. Select by pressing the RIGhT arrow button. →Configuration Access Rights HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 19 Go back 1 step using the LEFT arrow button. 10 Universal Inputs Go to UI by using the UP/DOWN arrow buttons. Select by pressing the RIGhT arrow button. →UI Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 20 →Extra control unit 15 Mode extra unit Mode Extra unit Press OK. Select Running if unit runs by Running if unit runs using the UP/DOWN arrow buttons. Confirm by pressing OK. HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 21: Topvex Fr Pre-Heater Electrical Components

    Contactor (K4) for On/Off control of pre-heater Automatic overheat protection reset (OT2) Manual overheat protection reset (ET2) heater control board (TTC2) heating rods pre-heater Filter Filter access point Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 22: Topvex Tr Pre-Heater Electrical Components

    Contactor (K4) for On/Off control of pre-heater Automatic overheat protection reset (OT2) Manual overheat protection reset (ET2) heater control board (TTC2) heating rods pre-heater Filter HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 23: Topvex Fr Hw Pre-Heater Components

    Fig. 4 Topvex R HW Pre-heater components Table 3: Description of HW pre-heater components Position Description Filter hydronic Coil Sensor harness (Temperature sensor and Frost pevention sensor) Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.

  • Page 24: Topvex Tr Hw Pre-Heater Components

    Table 4: Description of HW pre-heater components Position Description Filter (1 pcs in TR800/1300/1800) (2 pcs TR4000) hydronic Coil Sensor harness (Temperature sensor and Frost pevention sensor) HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 25 Notes Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 26 Notes HWC - Hot Water Coil, Topvex Series ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 27 Notes Topvex Series HWC - Hot Water Coil, ELP - Electric Pre-Heater installation instructions Systemair Inc.
  • Page 28 Systemair Inc. reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair Inc. 50 Kanalflakt Way Bouctouche, NB E4S3M5, Canada Phone + 1 519 550 3307 10048 Industrial Blvd KS, 66215 United States Phone +1 517 648 2863...

This manual is also suitable for:

Topvex frTopvex trTopvex fr hwTopvex tr hw
