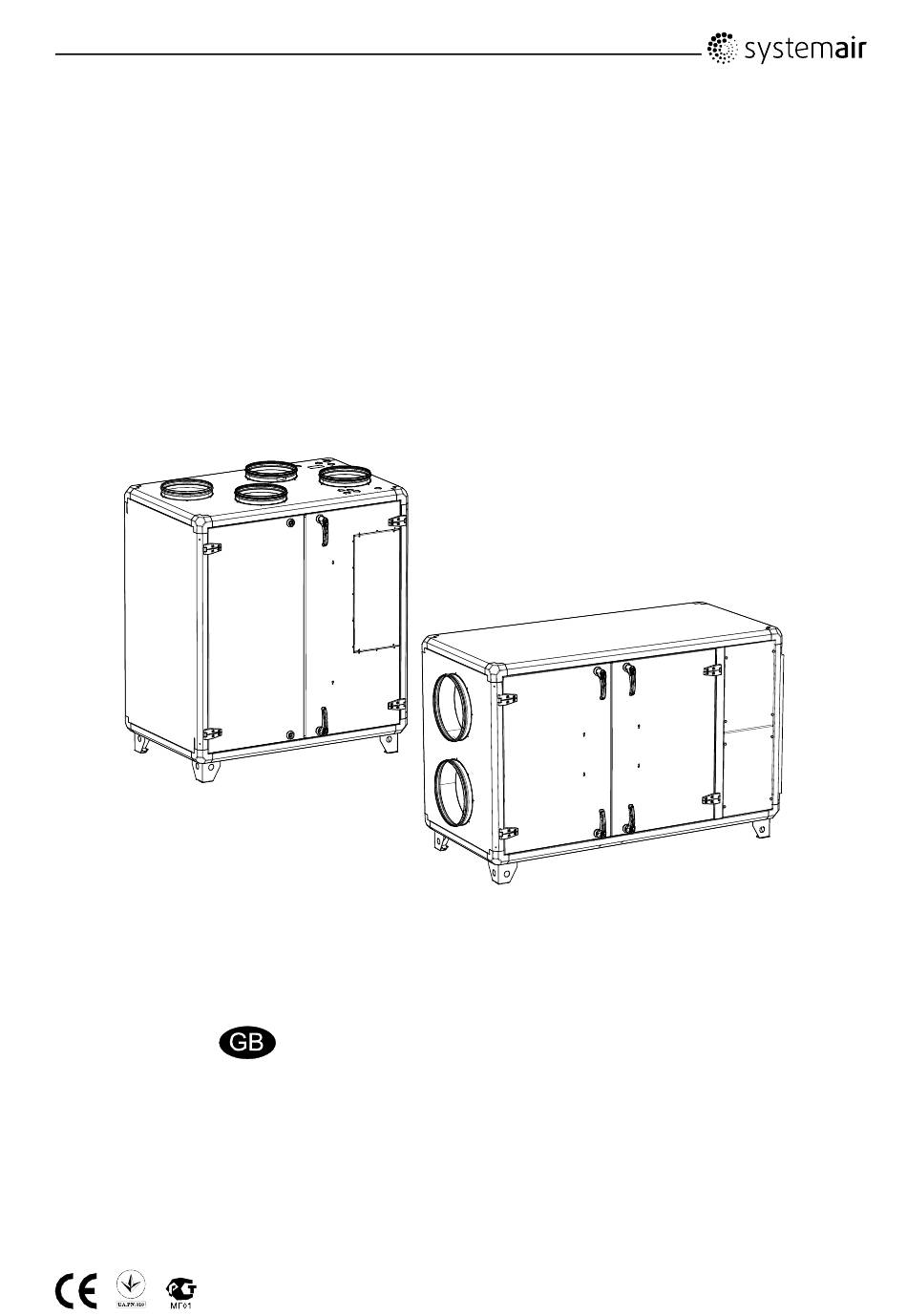

- Page 1 Topvex SR/TR03, SR/TR04, SR/TR06 Compact Air Handling Unit Installation instructions 206901-EN_GB Document in original language 02-04-2014 A007...
-
Page 2: Table Of Contents
Contents 1 Declaration of Conformity ......................1 2 Warnings........................... 2 3 Product information........................2 3.1 General ........................... 2 3.2 Technical Data ......................... 3 3.2.1 Dimensions and weights Topvex SR 03–06 .............. 3 3.2.2 Dimension and weights Topvex TR 03–06 ..............5 3.2.3 Electrical data Topvex SR/TR 03–06 ................ -
Page 3: Declaration Of Conformity
Industrivägen 3 SE-739 30 Skinnskatteberg SWEDEN Office: +46 222 440 00 Fax: +46 222 440 99 www.systemair.com hereby confirms that the following products: Air handling units Topvex SR03 EL Topvex SR06 EL Topvex TR04 EL Topvex SR03 Topvex SR06 Topvex TR04... -
Page 4: Warnings
3 Product information 3.1 General This installation manual concerns air handling unit type Topvex SR/TR 03–06 manufactured by Systemair AB. Topvex SR/TR 03–06 include the following model options: • Model: SR03, SR04, SR06, TR03, TR04, TR06 •... -
Page 5: Technical Data
D (c/c) E (c/c) SR04 1600 1041 1468 SR06 1600 1128 1000 1468 Model SR04 SR06 Y: 15R 1/2″ Inner thread 3.2.1.1 Weights Topvex SR 03–06 Model Weight (kg) SR03 SR04 SR06 Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... - Page 6 3.2.1.2 Space required Topvex SR 03–06 Fig. 3 Space required Model M (mm) N (mm) SR03 SR04 SR06 Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
-
Page 7: Dimension And Weights Topvex Tr 03-06
3.2.2 Dimension and weights Topvex TR 03–06 Fig. 4 Dimensions (mm) TR03, TR04 (Drawn as a left hand unit) Model D (c/c) E (c/c) TR03 1180 1230 1048 TR04 1480 1280 1348 Model Ø TR03 TR04 Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... - Page 8 Fig. 5 Dimensions (mm) TR06 Y: 15R 1/2″ Inner thread 3.2.2.1 Weights Topvex TR 03–06 (Drawn as a left hand unit) Model Weight (kg) TR03 TR04 TR06 Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
-
Page 9: Electrical Data Topvex Sr/Tr 03-06
– – (None, 1016/1010 HWL/HWH) – SR/TR04 EL 1560/1538 3x16 3x20 SR/TR04 – – (None, 1560/1538 HWL/HWH) SR/TR06 EL 2066/2010 2246 3x16 3x25 SR/TR06 – (None, 2066/2010 2246 3x10 3x13 HWL/HWH) Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... -
Page 10: Transport And Storage
Systemair products. 4.2 Where/how to install Topvex SR/TR 03–06 are meant for indoor installation. Topvex SR03,SR04 and SR06 can be installed outside if weather protected. Use accessory ODS to size 04 and 06. Place the unit on a horizontal flat surface. -
Page 11: Installing The Unit
The unit must be installed in the following position (figure 8). Fig. 8 Installation position (left hand unit) Fig. 9 Installation position (right hand unit) Table 2: Symbol description Symbol Description Supply air Extract air Outdoor air Exhaust air Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... -
Page 12: Installation Procedure
• Make sure that the Mains supply to the unit is disconnected before performing any maintenance or electrical work! • All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... -
Page 13: Supply Air Sensor (Topvex Sr 03-06)
The pressure transmitters need to be mounted in the supply and extract air ducts (figure 11) and connected to terminals 40–42 (table 3). Fig. 11 VAV installation Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... -
Page 14: Connections
Use insulating covering (minimum 100 mm mineral wool) with plastic diffusion barrier. In areas with extremely low outdoor temperatures during the winter, additional insulation must be installed. Total insulation thickness must be at least 150 mm. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... -
Page 15: Mounting The Water Heating Battery
Make sure the threaded connections (pos.2 and 3) end up on the front side of the unit facing the gable as shown in the figure. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... - Page 16 Connect all necessary accessories such as water valves and valve actuators. See enclosed wiring diagram for more information. Use the control panel to program the unit for water heating. See chapter 4.6.3 how to do the software configuration. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
- Page 17 Connect the frost protection sensor (pos.3) to terminals 44 and 40 in the electrical connection box. Use the prepared internal lead throughs to draw the wiring between the compartments. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
-
Page 18: Configurating The Software For Water Heating
UP/DOWN buttons. Choose next digit by pressing the Right arrow button followed by OK Actual level: None when all 4 digits are put in. Go back 2 steps with the Left arrow button Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... - Page 19 Go back 2 steps to the main menu with the Left arrow button and up to the start screen with the UP/DOWN arrow buttons. The unit is now ready to be used with the installed water heating battery. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
-
Page 20: Electric Connections
• Make sure that the Mains supply to the unit is disconnected before performing any maintenance or electrical work! • All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... - Page 21 Contactor (K2) On/Off Pump control water (HW units only, not present in EL-units) Automatic fuse Electric heater frame Automatic fuse for heater Contactor (K3) for on/off control of EL heater Thermostat (EL units) Manual over heat protection reset (EL units) Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
- Page 22 Modbus, Exo-line connection Exo-line E Exo-line connection 53/63 DI 4 Extended running Normally open contact Use terminal 4 as reference DI 5 Fire alarm Normally open contact Use terminal 4 as reference Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
- Page 23 0–10V DC Maximum current load for all DO combined: 8A Connection to external pressure sensor in case of pressure controlled unit (VAV) These inputs may only be wired to voltage free contacts Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
- Page 24 Communication possibilities for controller E283 WEB. • RS485(Modbus): 50-51-52 or 60-61-62 • RS485(Exoline): 50-51-52-53 or 60-61-62-63 • TCP/IP Exoline • TCP/IP WEB • BACnet/IP Fig. 15 BMS connection on the controller Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
-
Page 25: Installing The Control Panel
Find an appropriate place to install the control panel. Maximum length between control panel and unit is 100 m. If needed, drill two holes in the wall to hang the control panel (center to center: 60 mm) (pos.1, figure 17). Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... -
Page 26: Additional Equipment
For information concerning additional external equipment such as valve actuators, motorized dampers, E-tool, roof units, wall grilles etc. see technical catalogue and their enclosed instructions. For electrical connections of external components see enclosed wiring chart. Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901... - Page 27 Topvex SR/TR03, SR/TR04, SR/TR06 Installation instructions Systemair AB 206901...
- Page 28 Systemair AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com 206901...
