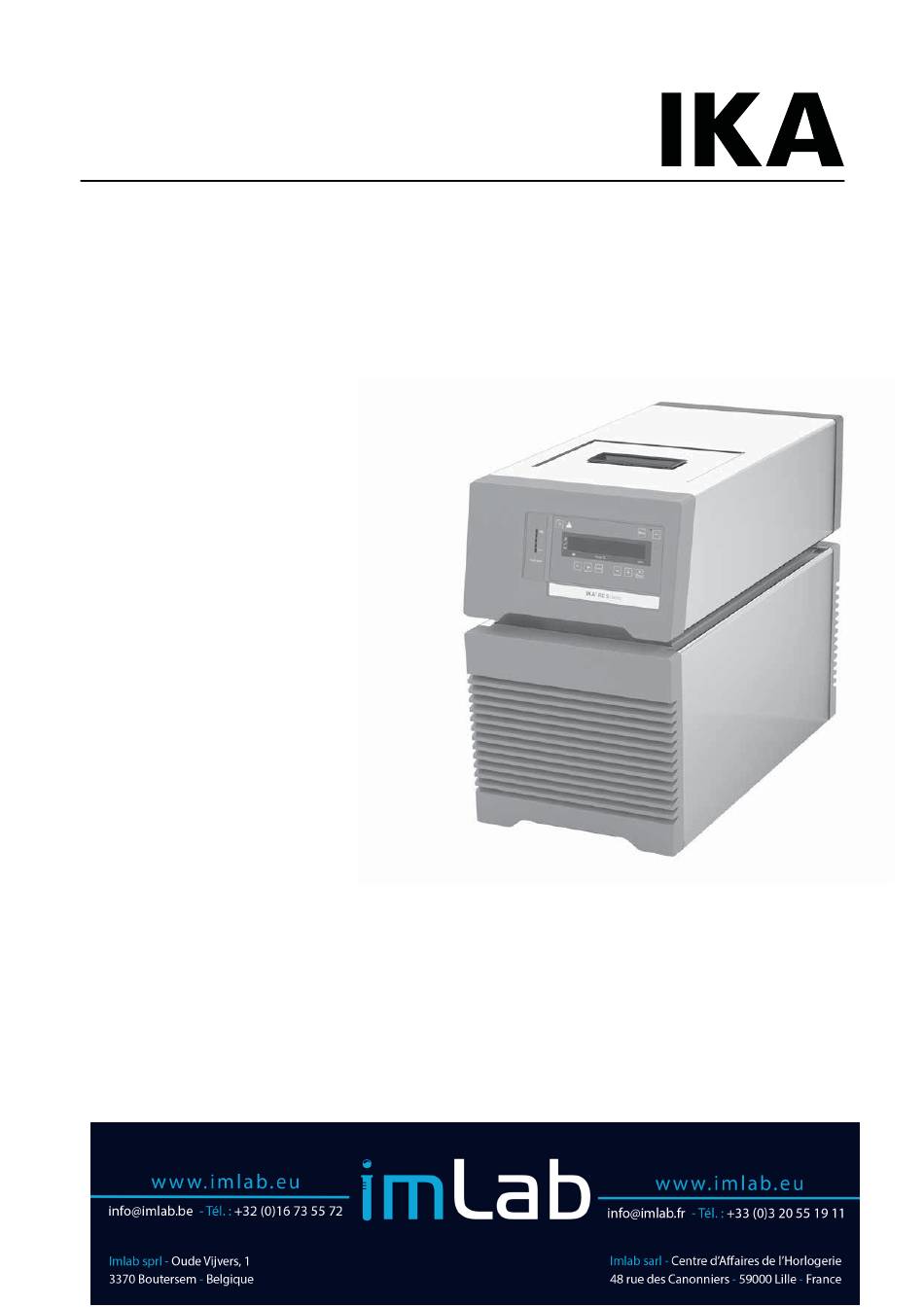

- Page 1 20000017145a RC 5 basic_062018 IKA RC 5 basic...
-
Page 2: Device Setup
Device setup Fig. 1 Item Designation Filling opening lid Operator panel and display Handle Venting grid RS 232 port USB port External temperature sensor socket Pump connector IN Pump connector OUT Power switch Power socket Backflow Overflow... -
Page 3: Table Of Contents
Preparations ............................. 7 Setting up ................................ 7 Connecting the tubings ............................ 7 Filling and draining ............................8 Fluid (Standard information for IKA fluid) ......................9 Moving the device ............................10 Operator panel and display ........................10 Commissioning and operating ........................ 11 Menu settings ............................ -
Page 4: Declaration Of Conformity
Declaration of Conformity We declare under our sole responsibility that this product corresponds to the regulations 2014/35/EU, 2006/42/EC, 2004/108/EC and 2011/65/EU and conforms with the standards or other normative documents: EN 61010-1, EN 61010-2-010, EN 61326-1, EN 60529, EN ISO 12100 and DIN 12876-1. Explication of warning symbols Indicates an (extremly) hazardous situation, which, if not avoided, will result in death, DANGER... -
Page 5: Safety Instructions
For ex- tional or local regulations ample, users can implement comprehensive monitoring equipment. • Process pathogenic material only in closed vessels under a suitable fume hood. Please contact IKA application sup- port if you have any question. -
Page 6: Fluids
The safety of the user cannot be guaranteed: - If the device is operated with accessories that are not sup- plied or recommended by IKA . - If the device is operated improperly or in contrary to the IKA specifications. -
Page 7: Unpacking
(SW 19)from the pump connection IN (8) and OUT (9). Check fluid heat expansion! - Connect the “Backflow” connector to IKA calorimeter Stopper with a suitable hose. When IKA calorimeter is not connected, please close the “Backflow” connector with included backflow cap. External system Union nut Fig. -
Page 8: Filling And Draining
• Filling and draining: - Before filling the fluid into the bath, open the venting grid as indicated in following figure. Low Level High Level Red (High Level) Red (Low Level) Fig. 5 Fig. 7 - Check and make sure that the drain valve is closed (ro- - To drain the fluid from the bath, connect a hose to the tate clockwise to the stop position, see Fig. -
Page 9: Fluid (Standard Information For Ika Fluid)
• Fluids (Standard information for IKA fluid): Operating temperature Operating temperature Safety temperature Flash point Designation range for open bath range for closed bath (°C) (°C) application applications (°C) (°C) CF.EG28.N10.80.8 -10 ... 80 -10 … 80 CF.EG39.N20.80.16 -20 … 80 -20 …... -
Page 10: Moving The Device
• Moving the device: Empty all fluid in the bath before moving device from one place to other place. The device must be lifted by two persons with the upper handles. It can also be moved on flat surface by lifting and push- ing the front of the device. -
Page 11: Commissioning And Operating
Commissioning and operation Note: Before commissioning, make sure that the device has Then the device enters standby status and is ready for not been moved for one hour. operation. Check whether the voltage specified on the type plate Change the temperature setting with “Temp (+)“ button matches the power voltage available. -
Page 12: Menu Settings
Maximum temperature (HIT): • The chosen fluid (No.) limits the maximum and mini- mum temperature. Customized fluid (No.: 8) enables the whole working temperature range. See Section “Fluids (Standard information for IKA fluid)”. The maximum adjustable value: 40 °C. -
Page 13: Temperature Control Type (Auto)
• Temperature control type (AUTO): Proportional coefficient of PID (Kp 1): The proportional coefficient Kp is the controller ampli- AUTO 1: AUTO 1 is the default setting. The default PID fication and determines how strongly the control devia- settings are used automatically. tion (the difference between the target temperature and Cooling down curve in auto-turning control (AUTO 1): actual temperature) directly affects the control variable... -
Page 14: Interface And Output
Install the driver by running the setup file. Then connect mission in start-stop mode. the IKA device through the USB data cable to the PC. - Type of transmission: full duplex. The data communication is via a virtual COM port. Con- figuration, command syntax and commands of the virtual... - Page 15 1.1). The NAMUR commands and the additional specific IKA co mmands serve only as low level commands for communication between the device and the PC. With a suitable terminal or communications programme these commands can be transmit- ®...
-
Page 16: Maintenance And Cleaning
Dirt Cleaning agent For repair, please request the “Decontamination Certifi- cate” from IKA, or download printout of it from the IKA Isopropyl alcohol website www.ika.com. Construction material Water containing tenside/isopropyl alcohol If you require servicing, return the instrument in its original... -
Page 17: Error Codes
PC 1.1 Cable (RS 232) H.SI.8 Silicone tube (nominal width 12) ® H.SI.12 Labworldsoft H.FKM.8 FKM tube (nominal width 8) H.FKM.12 FKM tube (nominal width 12) H.PUR.8 PUR tube (nominal width 8) PUR tube (nominal width 12) H.PUR.12 See more accessories on www.ika.com. -
Page 18: Technical Data
Technical data Operating voltage 230 ± 10 % 100–115 ± 10 % Frequency 50 / 60 Max. input power 1100 Working temperature range °C - 30 ... RT Operating temperature range (with external heating) °C - 30 ... + 80 Temperature stability –... -
Page 19: Warranty
Warranty In accordance with IKA warranty conditions, the warranty The warranty does not cover worn out parts, nor does it period is 24 months. For claims under the warranty please apply to faults resulting from improper use, insufficient contact your local dealer. You may also send the machine...
