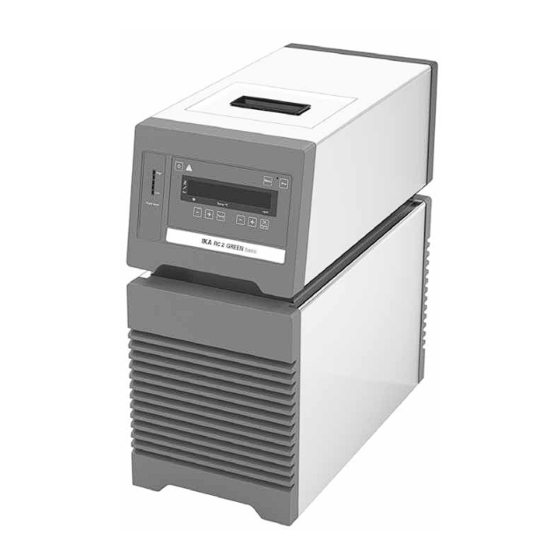

IKA RC 2 GREEN basic
Operating instructions
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RC 2 GREEN basic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IKA RC 2 GREEN basic

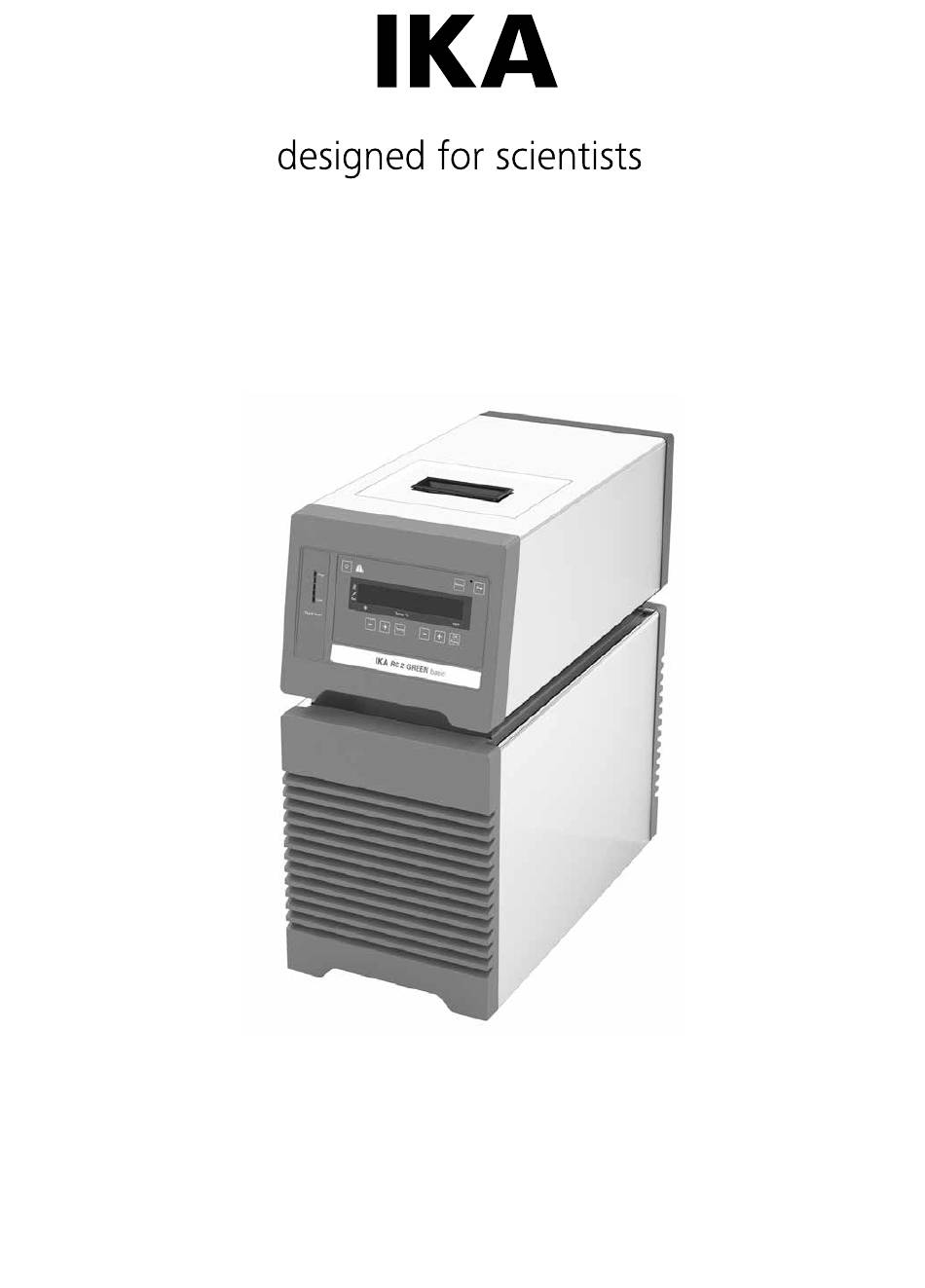

  • Page 1 IKA RC 2 GREEN basic Operating instructions...
  • Page 2: Device Setup

    Device setup Fig. 1 Item Designation Filling opening lid Operator panel and display Handle Venting grid RS 232 port USB port Pump connector IN Pump connector OUT Power switch Power socket Backflow Overflow...
  • Page 3: Table Of Contents

    Preparations ..............................7 Setting up �������������������������������������������������������������������������������������������������������������������������������������������������������������7 Connecting the tubings �����������������������������������������������������������������������������������������������������������������������������������������7 Filling and draining ������������������������������������������������������������������������������������������������������������������������������������������������8 Fluid (Standard information for IKA fluid) ������������������������������������������������������������������������������������������������������������10 Moving the device ����������������������������������������������������������������������������������������������������������������������������������������������11 Operator panel and display ........................11 Commissioning and operating ........................12 Menu settings ............................13 Menu structure ���������������������������������������������������������������������������������������������������������������������������������������������������13...
  • Page 4: Ec Declaration Of Conformity

    2011/65/EU and conforms with the following standards or normative documents: EN 61010-1, EN 61010-2-010, EN 61326-1, EN 60529, EN ISO 12100 and DIN 12876-1� A copy of the complete EU Declaration of Conformity can be requested at sales@ika�com� Explication of warning symbols...
  • Page 5: Safety Instructions

    • Set up the device in a spacious area on an even, stable, • Process pathogenic material only in closed vessels under a clean, non-slip, dry and fireproof surface� suitable fume hood� Please contact IKA application sup- • The device has been constructed to the requirements port if you have any question�...
  • Page 6: Fluids

    Refrigerant: • Do not transport or empty the bath while it is still cold� The device is not allowed to be • Always empty the bath before moving the unit� WARNING used in an ATEX (Atmosphere Exlo- Always empty the bath if the unit is sible) zone�...
  • Page 7: Intended Use

    Unpacking Unpacking: Delivery scope: - Unpack the device carefully� - RC 2 GREEN basic - Any damage should be notified immediately to the ship- - Power cables ping agent (post office, railway network or logistics com- - Hose olive NW 8 (2 pieces) pany)�...
  • Page 8: Filling And Draining

    Check fluid heat expansion! - Connect the power plug and turn on the device with - Connect the “Backflow” connector (11) to IKA calorim- power switch� eter with a suitable hose� - The low level warning message appear on the display� Mean-...
  • Page 9 Note: Pay attention to the fluid level information! Low Level High Level Red (High Level) Red (Low Level) Fig. 7 - To drain the fluid from the bath, connect a hose to the drain port and turn the drain valve in counter clockwise direction with a straight screwdriver�...
  • Page 10: Fluid (Standard Information For Ika Fluid)

    Fluids (Standard information for IKA fluid): Operating temperature Operating temperature Safety temperature Flash point Designation range for open bath range for closed bath (°C) (°C) application applications (°C) (°C) CF�EG28�N10�80�8 -10 ��� 80 -10 … 80 CF�EG39�N20�80�16 -20 … 80 -20 …...
  • Page 11: Moving The Device

    Moving the device: Empty all fluid in the bath before moving device from one place to other place� The device must be lifted by two persons with the upper handles� It can also be moved on flat surface by lifting and pushing the front of the device�...
  • Page 12: Commissioning And Operating

    Commissioning and operating Note: Before commissioning, make sure that the device has Then the device enters standby status and is ready for op- not been moved in one hour� eration� Change the temperature setting with “Temp (+)“ button (L) Check whether the voltage specified on the type plate or “Temp (-)“...
  • Page 13: Menu Settings

    Maximum temperature (HI T): The chosen fluid (No�) limits the maximum and minimum temperature� Customized fluid (No�: 8) enables the whole working temperature range� See Section “Fluids (Standard information for IKA fluid)”� The maximum adjustable value: 40 °C�...
  • Page 14: Temperature Control Type (Auto)

    Temperature control type (AUTO): Proportional coefficient of PID (Kp 1) The proportional coefficient Kp is the controller amplifica- AUTO 1: tion and determines how strongly the control deviation (the AUTO 1 is the default setting� The default PID settings are difference between the target temperature and actual tem- used automatically�...
  • Page 15: Reset To Factory Settings (Rst)

    Example: 2-point calibration: Input the calibration value from the reference measuring in- Dip the temperature sensor of the reference measuring in- strument (e�g� 10�1 °C) with “Pump (+)” button (I) or “Pump strument into the bath fluid� (-)” button (J)� Select 2-point calibration in the menu�...
  • Page 16: Interface And Output

    1�1)� The NAMUR commands and the additional specific IKA co mmands serve only as low level commands for communica- tion between the device and the PC� With a suitable terminal or communications programme these commands can be transmitted directly to the circulator equipment�...
  • Page 17 Commands: NAMUR Commands Function IN_PV_2 Read the internal actual temperature IN_PV_4 Read the pump actual speed IN_SP_1 Read the internal setting temperature IN_SP_4 Read the pump setting speed OUT_SP_1 xxx Set the internal setting temperature XXX OUT_SP_12@n Set the WD safety temperature with echo of the set (defined) value� OUT_SP_4 xxx Set the pump speed XXX OUT_SP_42@n...
  • Page 18: Maintenance And Cleaning

    The protective media stops the - manufacturing number, see type plate growth of algae, bacteria and other microorganisms� - item and designation of the spare parts, see www.ika.com - software version� To keep the full cooling performance, the dust filter of the cooler must be checked regularly and cleaned if necessary�...
  • Page 19: Error Codes

    Silicone tube (nominal width 12 mm) Labworldsoft ® H.PUR.8 PUR tube (nominal width 8 mm) H.PUR.12 PUR tube (nominal width 12 mm) H.FKM.8 FKM tube (nominal width 8 mm) H.FKM.12 FKM tube (nominal width 12 mm) See more accessories on www.ika.com�...
  • Page 20: Technical Data

    Technical data Operating voltage 230 ± 10 % 100 ��� 115 ± 10 % Frequency 50 / 60 Max� input power Working temperature range °C - 30 ��� + RT Operating temperature range (with external heating) °C - 30 ��� + 70 Temperature stability –...
  • Page 21: Warranty

    Warranty In accordance with IKA warranty conditions, the warranty The warranty does not cover worn out parts, nor does it ap- period is 24 months� For claims under the warranty please ply to faults resulting from improper use, insufficient care or contact your local dealer�...
  • Page 22 VIETNAM IKA Vietnam Company Limited Phone: +84 28 38202142 eMail: sales�lab-vietnam@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
