Summary of Contents for IKA Plate

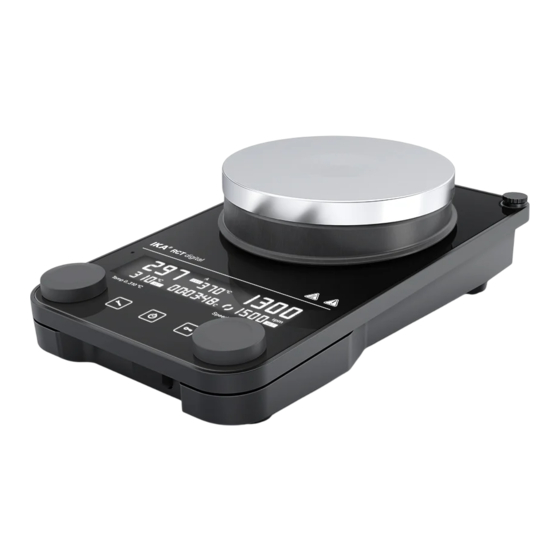

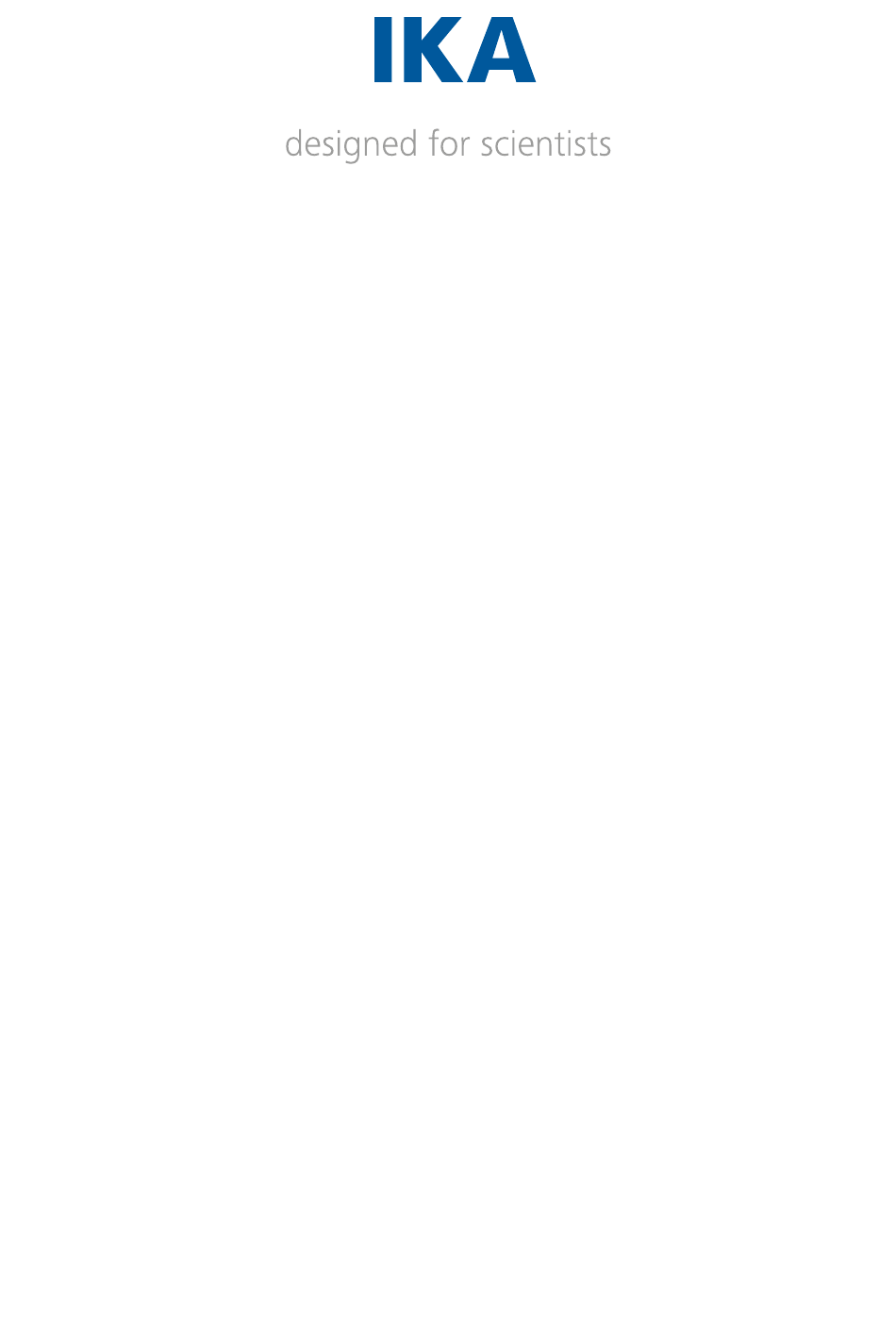

  • Page 1 IKA Plate (RCT digital) RCT 5 digital...
  • Page 2 ENGLISH...
  • Page 3: Table Of Contents

    EU Declaration of conformity �������������������������������������������������������������6 Explication of warning symbols ��������������������������������������������������������� 6 Safety instructions ����������������������������������������������������������������������������� 7 Intended use ����������������������������������������������������������������������������������� 10 Unpacking �������������������������������������������������������������������������������������� 11 Installation �������������������������������������������������������������������������������������� 12 Operator panel and display ������������������������������������������������������������� 15 Operation ��������������������������������������������������������������������������������������� 17 Interfaces and outputs �������������������������������������������������������������������� 29 Maintenance and cleaning �������������������������������������������������������������� 32 Accessories �������������������������������������������������������������������������������������...
  • Page 4: Eu Declaration Of Conformity

    Indicates the correct execution or the result of an action step� › The feet of the device must be clean and undamaged� › Ensure that the power cord set / temperature sensor cable does not touch the heating plate� Wrong ›...
  • Page 5 25 °C lower than the flash point of the media used� (acc� to EN 61010-2-010) › The heating plate can heat up due to the action of the magnets at high motor speeds, even › The device may only be opened by qualified and IKA approved experts�...
  • Page 6: Intended Use

    - if the device is operated improperly or contrary to the manufacture’s specifications, - if the device or the printed circuit board are modified by third parties� IKA Plate (RCT digital) / RCT 5 digital Power cord USB cord Temperature sensor PT 1000�60...
  • Page 7: Installation

    Installation /// Assembling support rod / extension etc� › Review the mounting and safety instructions of the IKA boss head clamp prior to using it� (see “Accessories”) › The device must not be suspended from the support rod! Risk of tipping! ›...
  • Page 8: Operator Panel And Display

    Rotating / pressing knob - Temperature USB Interface setting RS 232 Interface Rotating / pressing knob - Speed setting Connection for PT 1000 temperature “Menu“ button sensor series, temperature probes or contact plugs “Timer“ button Heating plate “Lock“ button Threaded hole for stand Display...
  • Page 9: Operation

    /// Display Operation /// Start-up 14 | 13 09 11 10 15 17 16 SAFE VISC (°C / °F) (rpm) Set speed value Operating mode Set temperature value Safety circuit temperature Motor running / rotation direction Viscosity trend value Timer / counter 13 | PT 1000 temperature sensor connected ETS-D5 / ETS-D6 connected...
  • Page 10 The safety temperature limit must always be set at least 25 °C lower than the flash point of the media to be processed! 0...1500 rpm The adjustable maximum heating plate temperature must always be set at least 15 °C under the SAFE set safety temperature limit�...
  • Page 11 › When the heating function is switched on, the “Heating function activated” symbol (°C / °F) displayed� › When the device is switched off while the heating plate temperature is higher than 50 °C, the display shows “Hot!” and the actual temperature value is shown, even if the device is switched off�...
  • Page 12 /// Menu structure /// Menu details Operating mode: Mode A: All settings will be stored if the device is switched off or disconnected from the power supply� Factory settings The stirring and heating functions will be set to OFF when the device is powered on� The safety Operating mode circuit can be set or modified�...
  • Page 13 Intermittent mode / Rotation direction: Safe / Visc: Intermittent mode: Once the “VISC / SAFE“ has been set to “VISC“, the viscosity trend value will be shown on the In intermitted mode, the stirring function is interrupted cyclically� The run time (0 / 10 sec – 10 display�...
  • Page 14 Probe cal. “EXT” temp. 1st temp. 1st speed SAFE SAFE SAFE SAFE SAFE = 1st temp. = 2nd temp. 2nd temp. “EXT“ temp. SAFE Software version: Turn the rotating / pressing knob (D) to change the menu item to ”Software version”� /// Timer / Counter ›...
  • Page 15: Interfaces And Outputs

    › From each state of the timer / counter, press the button (F) for 2 seconds to exit the timer / Install the driver by running the setup file� Then connect the IKA device to the PC via the USB counter�...
  • Page 16 The data transmission may be interrupted by, for example, a crash in the operating system, a power The NAMUR commands and the additional specific IKA commands commissioning serve only failure in the PC or an issue with the connection table between the computer and the device�...
  • Page 17: Maintenance And Cleaning

    › For cleaning disconnect the mains plug! Error code | Causes | Effect | Solutions › Use only cleaning agents which have been approved by IKA to clean the devices: Water containing surfactant / isopropyl alcohol� Er02 - Watchdog error ›...
  • Page 18 › contact customer service issue, the previous value can be reset by switching the device off and on again Er44 – Heating plate safety temperature is higher than the set safety temperature Er14 - External temperature sensor, short-circuit Causes ›...
  • Page 19: Technical Data

    650 W 900 W Temperature display set-value Power input standby 1�6 W Temperature display actual-value Self-heating of the heating plate by max� Temperature setting rotating / pressing knob + 13 °C stirring (RT:22° C / duration:1h) Temperature setting resolution of heating...
  • Page 20: Warranty

    Warranty › In accordance with IKA warranty conditions, the warranty period is 24 months� For claims under the warranty please contact your local dealer� You may also send the device direct to our factory, enclosing the delivery invoice and giving reasons for the claim� You will be liable for freight costs�...
  • Page 21 Phone: +84 28 38202142 Phone: +66 2059 4690 Phone: +90 216 394 43 43 eMail: sales�lab-vietnam@ika�com eMail: sales�lab-thailand@ika�com eMail: sales�turkey@ika�com Discover and order the fascinating products of IKA online: www.ika.com IKAworldwide IKAworldwide /// #lookattheblue @IKAworldwide Technical specifications may be changed without prior notice�...
