  • Page 1 EK-Quantum Momentum TRX40 Aorus Master MONOBLOCK USER GUIDE...
  • Page 2 The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
  • Page 3: Table Of Contents

    TABLE OF CONTENT PREPARING YOUR MOTHERBOARD REMOVING FACTORY PROVIDED BACKPLATE REMOVING STOCK COOLER APPLYING THERMAL COMPOUND CUTTING THERMAL PADS PLACING THERMAL PADS ON THE MOTHERBOARD PLACING THE BLOCK ON TO MOTHERBOARD ATTACHING BLOCK ON THE MOTHERBOARD CONNECTING THE D-RGB LED STRIP REQUIRED TOOLS SUPPORT AND SERVICE SOCIAL MEDIA...
  • Page 4: Preparing Your Motherboard

    PREPARING YOUR MOTHERBOARD REMOVING FACTORY PROVIDED BACKPLATE STEP 1 Remove all encircled screws. There are seven (7) screws on the back of the motherboard that needs to be removed. Please store away the factory backplate as it will be reused. STEP 1 - 4 -...
  • Page 5 STEP 2 After removing the mention screws also remove three (3) remaining screws from the front side of the motherboard(as shown on the photo) using Phillips head screwdriver and take off the factory provided backplate. STEP 2 - 5 -...
  • Page 6: Removing Stock Cooler

    REMOVING STOCK COOLER Remove all the encircled screws and standoffs (as shown on the photo) in order to remove I/O cover and mosfet heat pipe cooling solution. You can attach the I/O cover back, after you mount the Monoblock. - 6 -...
  • Page 7: Applying Thermal Compound

    APPLYING THERMAL COMPOUND Apply thermal compound on CPU heat spreader with enclosed thermal grease( as shown on the photo). There is no need to cover the whole IHS. Applying too much thermal grease will have negative impact on the cooling performance! CUTTING THERMAL PADS Thermal Pad F –...
  • Page 8: Placing Thermal Pads On The Motherboard

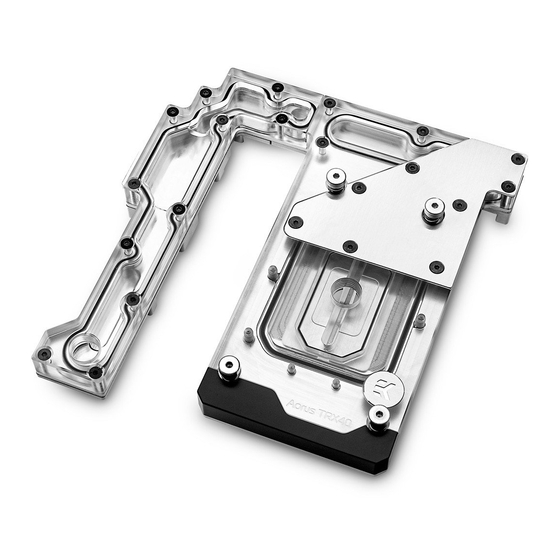

    PLACING THE BLOCK ON TO MOTHERBOARD Place the EK-Quantum Momentum TRX40 Aorus Master Monoblock series water block to the motherboard or vice versa (as shown on the photo). Make sure that mounting holes are aligned.
  • Page 9: Attaching Block On The Motherboard

    ATTACHING BLOCK ON THE MOTHERBOARD STEP 1 Prior to fastening the screws please make sure the mounting holes on the motherboard’s circuit board are aligned with the water block. CPU part: Carefully tighten all the marked screws carefully using 2.5 mm Allen Key.
  • Page 10 PART 2 Carefully place the backplate back on the motherboard and secure the Backplate screws mosfet part with Factory provided motherboard (backplate) screws. Factory provided backplate PART 2 STEP 2 EK-Fitting Tubing EK recommends the use of EK-Fittings. When using fittings other than EK series please use hose clamps or appropriate substitute Use this opening to secure the tubing to the barb.
  • Page 11: Connecting The D-Rgb Led Strip

    CONNECTING THE D-RGB LED STRIP Plug the 3-pin connector from Monoblock D-RGB LED strip to the motherboard. Please ensure that the arrow indicated on the connector is plugged into the +5V line as indicated on your motherboard. Failure to do so will damage your motherboard or LED strip. D-RGB Header RGB Header REQUIRED TOOLS...
  • Page 12: Support And Service

    SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
