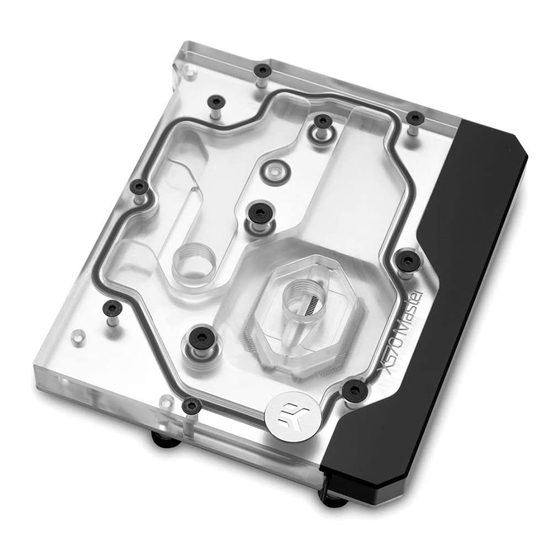

- Page 1 EK-Quantum Momentum Aorus X570 Master D-RGB – Plexi MONOBLOCK USER GUIDE...
- Page 2 The following instructions are subject to change without notice. Please visit our web site at www. ekwb.com for updates. Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
-
Page 3: Table Of Contents
TABLE OF CONTENT PREPARING YOUR MOTHERBOARD REMOVING FACTORY PROVIDED BACKPLATE REMOVING STOCK COOLER REMOVING OF THE ORIGINAL PLASTIC HOLD-DOWN AND THE FACTORY BACKPLATE APPLYING THERMAL COMPOUND CUTTING THERMAL PADS PLACING THERMAL PADS ON THE MOTHERBOARD PLACING THE BLOCK ON TO MOTHERBOARD ATTACHING BLOCK ON THE MOTHERBOARD CONNECTING THE D-RGB LED STRIP REQUIRED TOOLS... -
Page 4: Preparing Your Motherboard
PREPARING YOUR MOTHERBOARD REMOVING FACTORY PROVIDED BACKPLATE Mosfet screws From the back side of the motherboard, remove five (5) screws using Phillips head screwdriver. After removing the mention screws also remove two (2) remaining screws from the front side of the motherboard using Phillips head screwdriver and take off the factory provided backplate. -
Page 5: Removing Of The Original Plastic Hold-Down And The Factory Backplate
REMOVING OF THE ORIGINAL PLASTIC HOLD- DOWN AND THE FACTORY BACKPLATE UNC 6-32 Screws Using Philips-head screwdriver remove the four (4) UNC 6-32 screws securing the original plastic hold-down clamps around the socket as shown on the sketch. Remove the original backplate and the hold- down clamps. -
Page 6: Applying Thermal Compound
APPLYING THERMAL COMPOUND Thermal Pad F – 1.0 mm Apply thermal compound on CPU heat spreader (IHS) with enclosed EK-TIM Ectotherm thermal grease. The quantity of about two rice grains is just about right. There is no need to cover the whole IHS. Applying too much thermal grease will have negative impact on the Thermal Pad F –... -
Page 7: Placing The Block On To Motherboard
PLACING THE BLOCK ON TO MOTHERBOARD Place the EK-Quantum Momentum X570 Aorus Master Monoblock series water block to the motherboard or vice versa (as shown on the photo). Make sure that mounting holes are aligned. ATTACHING BLOCK ON THE MOTHERBOARD M2.5x5 AX1 Screw PVC washer STEP 1... -
Page 8: Connecting The D-Rgb Led Strip
STEP 2 For the EK-Quantum Momentum X570 Aorus Master series water IMPORTANT: block to operate properly the G1/4 port nearest to the right edge of Use this opening the water block MUST BE USED AS THE INLET PORT. as an Inlet Port! EK recommends the use of EK-Fittings. -
Page 9: Required Tools
REQUIRED TOOLS Phillips-head screwdriver Scissors Allen Key - 9 -... -
Page 10: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
