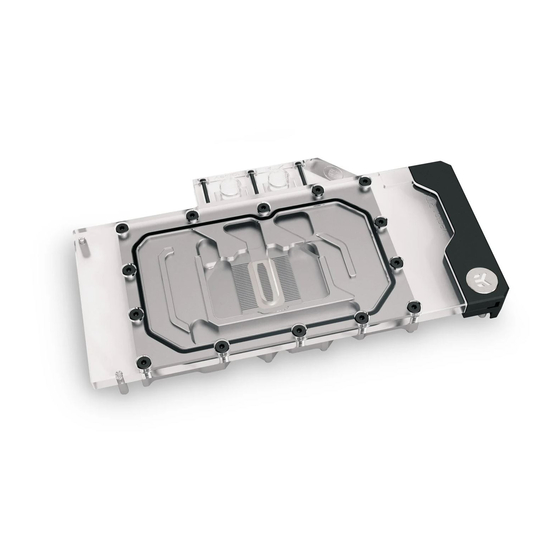

- Page 1 EK-Quantum Vector RTX 3080/3090 D-RGB GPU WATER BLOCK USER GUIDE...
- Page 2 Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process. Remove your graphics card from the computer for the safest mounting process, to prevent any possible damage to your GPU or its circuit board (PCB).
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE BLOCK TO THE GRAPHICS CARD CHECKING FOR CONTACT INSERTING THE GRAPHICS CARD INTO THE CHASSIS INSTALLATION OF FITTINGS AND TUBING... -
Page 4: Box Contents
BOX CONTENTS Mounting mechanism - You may not need all the screws, mounting mechanism is universal! EK-Quantum Vector RTX 3080/3090 D-RGB M2,5x4 AX1 Screw (16 pcs) M2,5x6 AX1 Screw (13 pcs) M2,5x8 AX1 Screw (2 pcs) Thermal Grease (1 pc) M2.5 PVC Washers (16 pcs) -
Page 5: Water Block Dimensions
WATER BLOCK DIMENSIONS 220.15 mm 120.70 mm 20.55 mm 91.70 mm - 5 -... -
Page 6: Preparing The Graphics Card
PREPARING THE GRAPHICS CARD STEP 1 REMOVING THE STOCK COOLER Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the EK-Quantum Vector RTX 3080/3090 D-RGB water block onto the graphics card. -
Page 7: Cutting And Placing Thermal Pads
CUTTING AND PLACING THERMAL PADS Thermal Pad F – 1.0 mm STEP 1 Your GPU water block comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components, such as COILs, MOSFETs, and drivers. 120 mm 1 mm You must remove the protective foil from both sides of the... -
Page 8: Applying Thermal Compound
APPLYING THERMAL COMPOUND STEP 1 Apply the enclosed EK-TIM Ectotherm thermal grease (thermal compound) on the CPU heat spreader – IHS – as shown in the image. The layer of the thermal compound must be thin and even over the entire surface of the IHS. The excessive or uneven application of thermal grease may lead to poor performance! For this Step, you will need: Thermal Grease, EAN: 3830046998446... -
Page 9: Attaching The Block To The Graphics Card
Then repeat Steps from the previous section to re-attach the block. In case you fail to obtain good contact, please check again or contact our support service at www.ekwb.com/support. INSERTING THE GRAPHICS CARD INTO THE CHASSIS Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCIexpress expansion slot. -
Page 10: Installation Of Fittings And Tubing
INSTALLATION OF FITTINGS AND TUBING STEP 1 Screw-in two (2) G1/4 threaded male fittings. Attach the liquid cooling tubes and connect the water block(s) to the cooling loop. Do not forget to plug the remaining two openings with enclosed EK-Plug G1/4 or its equivalent. You can use any opening as an inlet/outlet port. -
Page 11: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 12: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
