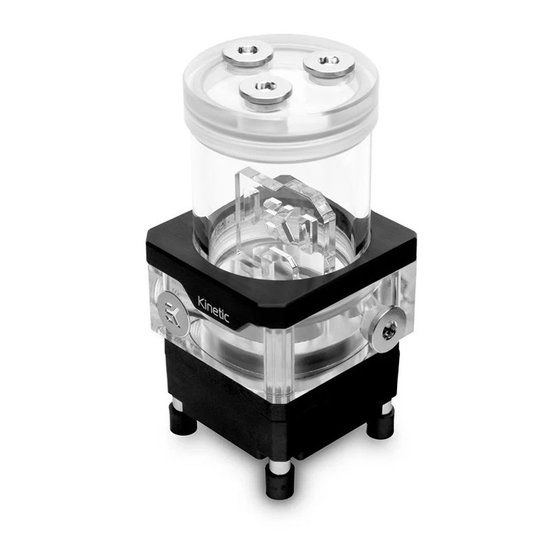

- Page 1 EK-Quantum Kinetic TBE 120/160 VTX PWM PUMP & RESERVOIR COMBO INSTALLATION MANUAL...
-
Page 2: Box Content
BOX CONTENT MOUNTING MECHANISM M4x4 DIN7984 Screws Gasket 10x1 (5 pcs) EK-Quantum MOUNTING MECHANISM Kinetic TBE 120/160 VTX PWM D-RGB Allen Key 2 mm Allen Key 2.5 mm Inlet Tube EK-Loop Multi Allen Key (6 mm, 8 mm, 9 mm) M4 PVC Washers (5 pcs) - 2 - - 3 -... -
Page 3: Installing The Assembly
INSTALLING THE ASSEMBLY EK-Quantum Kinetic TBE 120/160 VTX PWM EK-Quantum Kinetic TBE VTX can be used in any mounting configuration (position) apart from being mounted upside-down. Mounting the pump upside-down may result in the pump running dry and eventually lead to its failure! Sealing Gasket Pump Bracket VTX Pump... - Page 4 1. Installing the EK-Quantum Kinetic TBE 120/160 Using the Vertical EK-UNI Pump Bracket (sold separately): VTX combo unit using the EK-UNI Pump Bracket (sold separately): EK-Quantum Kinetic TBE VTX EK-Quantum Pump bracket - Kinetic TBE VTX Vertical Pump Bracket PVC Washer PVC Washer M4 X 4 Screw DIN 7984 M4 X 4 Screw DIN 7984...
- Page 5 2. Installing the EK-Quantum Kinetic TBE 120/160 VTX combo unit directly into the chassis: The assembly can be mounted on any flat surface inside your computer chassis. You must drill 4 (four) 4.2mm holes using the power drill in a 50 x 50mm square pattern.
- Page 6 USING TOP PORT AS INLET Fittings must be placed on the Top port before installing the Internal tube! In other scenarios, you can damage the Top. EK-Quantum Kinetic TBE 160 VTX combo unit: The internal tube, which is enclosed in a mounting Kit, EK-Fitting can be used for fluid intake into the reservoir.
- Page 7 ATTACHING THE FITTINGS EK recommends you use the EK-Quantum Torque EK-Plugs fittings with EK-Quantum Kinetic TBE VTX series G1/4 combo units. If you opt for barbs, make sure that tubes are securely attached using the hose clamps or an appropriate substitute. All unused ports should be blocked with enclosed G1/4 plugs.
-
Page 8: Connecting The Pump
CONNECTING THE PUMP The EK-VTX Pump has two connectors: 1. 4-Pin Molex – must be connected directly to your PSU at all times as it is used to power the pump; 2. 4-Pin PWM Fan – can be connected to your motherboard CPU Fan or designated water pump header. - Page 9 CONNECTING THE D-RGB LIGHTS Plug the 3-pin connector from the EK-Quantum Kinetic TBE VTX to the D-RGB header on the motherboard. . The LED will work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. Please ensure that the arrow on the connector is plugged into the +5V line, as indicated on your motherboard.
- Page 10 TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect the power to any other components! Turn on the PSU and let the pump run continuously.
-
Page 11: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA...
