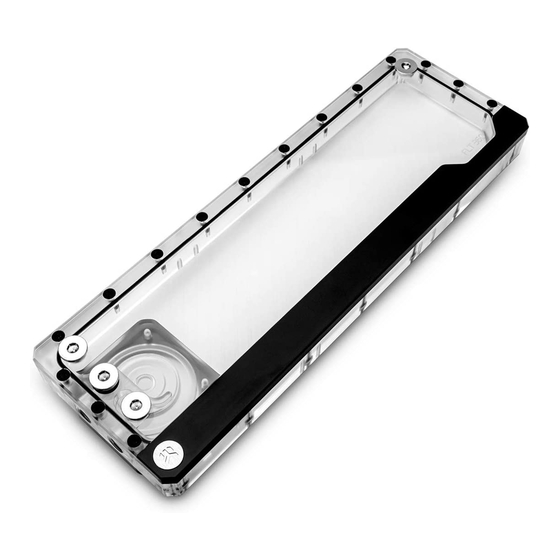

- Page 1 EK-Quantum Kinetic FLT D5/DDC Body D-RGB INSTALLATION MANUAL...
- Page 2 The use of corrosion inhibiting coolants is always recommended for any liquid cooling system. EKWB recommends any of the EK-Cryofuel for worry-free usage. There are many ways to install your EK-Quantum Volume/Kinetic FLT D5/DDC Body as it utilizes a standard fan mounting hole pattern with 15mm spacing, the same as all EK radiators.
-
Page 3: Table Of Contents
TABLE OF CONTENT D5 PUMP VERSION ATTACHING THE D5 PUMP ON TO THE RESERVOIR DDC PUMP VERSION ATTACHING THE DDC PUMP ON TO THE RESERVOIR CONNECTING THE D-RGB LED STRIP TESTING THE LOOP SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: D5 Pump Version
D5 PUMP VERSION ATTACHING THE D5 PUMP ON TO THE RES- M4X20 ERVOIR DIN7984 Screw STEP 1: Remove the preinstalled Pump Holder using 2.5mm Allen Key. Store the screws and pump holder for later use. Pump holder STEP 1 STEP 2: Make sure that the gasket( o- ring) is placed into the groove. -
Page 5: Ddc Pump Version
STEP 3 M4X20 Carefully attach the D5 Pump and Pump Holder(as shown on the DIN7984 photo). After that, secure all the parts together with M4X20 DIN Screw 7984 Screws. Tighten the screws using enclosed 2.5mm Allen Key. D5 Pump holder STEP 3 DDC PUMP VERSION ATTACHING THE DDC PUMP ON TO THE... -
Page 6: Connecting The D-Rgb Led Strip
STEP 2 Carefully attach the DDC pump and make sure that gasket (46x2.5) is placed correctly. Sealing gasket is included in additional bag. Secure M4 X 25 the pump with four (4) M4 X 25 7984DIN screws (see sample photo). DIN7984 Screw Tighten the screws using enclosed 2.5mm Allen Key. -
Page 7: Testing The Loop
TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components. -
Page 8: Support And Service
SUPPORT AND SERVICE For assistance please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
