- Page 2 Quick Start Guide SABRE Platform for Smart Devices Based on the i.MX 6 Series...

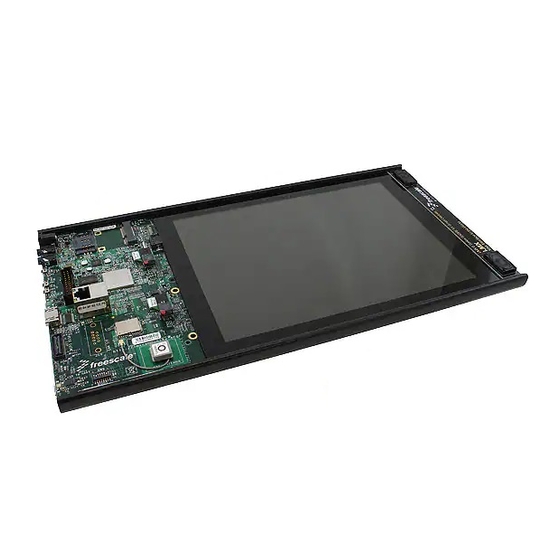

- Page 3 Quick Start Guide About the SABRE Platform for Smart Devices Based on the i.MX 6 Series The Smart Application Blueprint for Rapid The SABRE platform for smart devices can Engineering (SABRE) platform for smart be targeted towards any device requiring devices is the latest in a series of high- an intelligent display, connectivity, low performance, highly integrated development...
- Page 4 freescale.com The following features are available with • Two 3.5 mm audio ports the SABRE platform for smart devices (stereo HP and microphone) based on the i.MX 6 series: • Two board-mounted digital microphones • i.MX 6Quad applications processor 1 GHz or i.MX 6DualLite applications •...
- Page 5 Quick Start Guide Get to Know SABRE Platform for Smart Devices Based on the i.MX 6 Series J11–MIPI Display No Manual SD Switch Connector On SDP U19–GPS Module U14–SPI NOR Flash GPS Antenna J5–MIPI Camera Connector U17–Ambient Light CON2–DC Battery Connector Sensor External Speakers...
- Page 6 freescale.com J1–Mini PCIe Connector P1–DC Power Connector CON1–SIM Card Connector J2–Headphone Output Jack J13–Bluetooth ® Cable Connector J4–Microphone Input Jack SW1–Optional Power Button SW2–Board Reset Button SW4–Volume Up Button SW5–Volume Down Button J6–JTAG Connector J7–Ethernet Connector J8–HDMI Connector J9–DVP Camera Connector U18–Accelerometer U20–eCompass SW6-Boot Mode...
- Page 7 Quick Start Guide J500–SD2 AUX SDIO Socket BT500–Lithium Coin Cell Connector CON500–External J502–LVDS1 Speaker Connector Connector J503–LVDS0 Connector J504–LCD Expansion Port Connector J505–Micro USB Connector J506–22-Pin SATA J507–SD3 Connector Card Socket J508–EPDC Expansion Port Connector J509–Serial-To-USB Debug Port...
-
Page 8: Getting Started
freescale.com Getting Started This section describes how to use the SABRE platform for smart devices board and kit components. This section also describes the PC requirements to develop applications using the platform. Unpacking the Kit The SABRE platform for smart devices is shipped with the items listed in Table 1. Ensure the items listed in Table 1 are available in the i.MX 6 series development kit. - Page 9 Quick Start Guide Getting Started Download Software and Tools Download installation software and documentation under “Jump Start Your Design” at freescale.com/SABRESDP. Table 2 lists the documents available on the kit website. “Jump Start Your Design” Contents Item Description • Schematics, layout and Gerber files SABRE platform for smart •...
-
Page 10: Setting Up The System
freescale.com Setting Up the System Insert Connect Ethernet SD Card Cable (Optional) Insert the supplied SD card into socket Connect an Ethernet cable to the Ethernet SD3. jack J7. Connect USB Connect Debug Cable (Optional) Power Supply Connect the micro-B end of the supplied Connect the 5 V power supply cable to USB cable into debug port J509. - Page 11 Quick Start Guide Boot Process for Android Image Boot • When the boot process is complete, the Android operating system will be Process displayed. Insert the supplied SD card into socket • To work from the terminal window on SD3. the host PC, press enter at the terminal window to get the command prompt.
-
Page 12: Switch Functions
freescale.com Switch Functions Table 4 shows the functions of the four push button switches on the board. Button Operations Item Description SABRE platform for smart devices POWER button • Momentary depress of button will place the system in standby. • Long press of the button will display a software drive shutdown option menu. •... -
Page 13: Get Started
For more information, visit freescale.com/iMXSABRE Freescale and the Freescale logo are trademarks of Freescale Semiconductor, Inc., Reg. U.S. Pat. & Tm. Off. All other product or service names are the property of their respective owners. ARM is a registered trademark of ARM Limited (or its subsidiaries) in the EU and/or elsewhere.
