Table of contents Operator instructions ..........4 Symbols used in operating instructions ......4 Symbols on the discharging power pack ......5 Safety ................6 Intended use ..............7 Product overview............8 Install ................9 Operate ..............13 Normal operation ............13 Cyclic operation .............. 13 Troubleshooting ............
Operator instructions 1 Operator instructions Before installation and commissioning read these operating instruction in full. Always observe the safety instructions. These operating instruction is a part of the product; make sure you retain them for later use or subsequent owners. The discharging power pack is maintenance free and operationally safe when used as intended.
Operator instructions Never dispose of with household garbage. Caution, danger spot warning! 1.2 Symbols on the discharging power pack WARNING! High voltage ATTENTION! Only plug in/unplug the ionizing unit at the HV terminal when the discharging power pack is switched off.
Safety 2 Safety Only the persons authorized by the operator may carry out tasks on the discharging power pack. The installer must be a trained and qualified electrician and read the operating instructions in full. The operator must read the operating instructions in full. When working on the discharging power pack, switch off the voltage supply and secure against inadvertent switching on.
In combination with an ionizing unit, electrostatic charges are neutralized in a production process. Always observe the installation and operating conditions indicated in these operating instructions. Warranty only covers products, accessories or spare parts of HAUG GmbH & Co. KG.

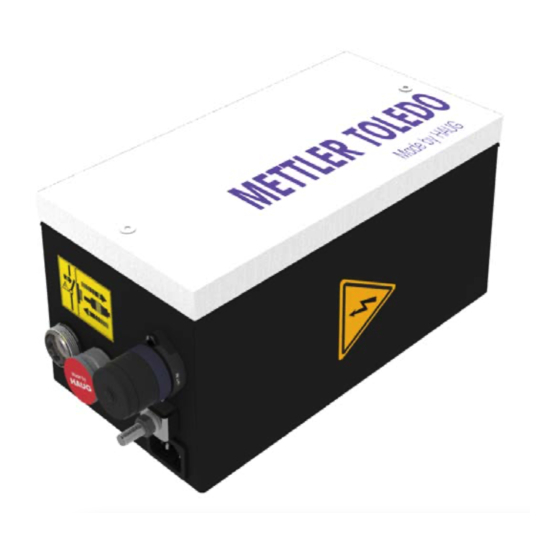

Product overview 3 Product overview A Power switch (is lit green if the discharging power pack is switched on) B Indicator light C Fuse holder with fuse (Replacing fuse, refer page D 2 x HV connection E Signalling socket with jumper plug F Earth connection (terminal) G Cooling unit connection...
• Never install at a location subject to direct solar irradiation. 1. Check the model plate of the discharging power pack against the ordering data. In the event of damage to the discharging power pack, contact HAUG GmbH & Co. KG. 2. Before connecting the cooling unit, ensure that the...
Page 10
Install 3. Place the discharging power pack at the desired place of use or attach it using the enclosed retainer plate. • The position of the discharging power pack has does not affect its function. • We recommend attaching the discharging power pack with the HV connections facing downwards...
Page 11
Install 6. Connect the discharging power pack to the supply voltage. Always use the supplied IEC power cord with its integrated ground wire. • Plug in the IEC power cord into the cold device connection of the discharging power pack. •...
Page 12
Install 8. If necessary, connect the signal line to the signal socket. • The discharging power pack can be cycled via the signal socket. Configuration of the signal socket: A External control voltage B External clock switch Pin 1 External control voltage (square wave signal, 1 kHz, 10 V, positive)
Operate 5 Operate Preconditions: The discharging power pack and the ionizing unit are connected and installed as specified in the operator instructions. 5.1 Normal operation There is no signal line connected to the signal socket. The jumper plug must be connected to the signalling socket. 1.
• Faults may only be eliminated by a trained and qualified electrician. NOTE: If the error cannot be removed in this way, return the discharging power pack and ionizing unit for checking to HAUG GmbH & Co. KG (the address is provided on the back of the envelope). Fault Cause...
Troubleshooting 6.1 Replacing fuse Damage to equipment! An incorrect fuse in the discharging power pack may cause a defect. This may result in a cable fire. • Only use fuses of the specified type. • Never use repaired fuses. • Never bridge the fuse. The unit type and the rated voltage are indicated on the nameplate.
Troubleshooting 6.2 Flow chart The indicator lamp does not illuminate. Switch off discharging power pack and unplug ionizing units. Disconnect signalling line from discharging power pack and screw jumper plug onto the signalling socket. Switch on the discharging power pack. Discharging power Indicator lamp stays off? pack is faulty...
Accessories/spare parts 7 Accessories/spare parts The supplier of accessories and spare parts is the authorized local sales agent of Mettler-Toledo. Article Order number Point electrode 11107765 Optional second electrode 11107762 U-Electrode universal 11107764 U-Electrode small 11140161 Ionizing kit Quantos System 11141829 Mains cable (country-specific) On request...
Technical data 8 Technical data 8.1 Key figures and specifications Reference temperature 23 °C HS connections High voltage 6.7 ±1 kV~ ≤ 5 mA Short-circuit current Square wave signal: Pulse width Cycle in > 40 % Tp/To Cycle out < 1 % Amplitude 10 V~ ±20 % Frequency...
Technical data 8.3 Ambient conditions Never use in areas with potentially explosive atmospheres. Must only be used indoors. Height above mean seal level to 2000 m Temperature: Rated application range +5 to +45°C Limit range for storage and -15 to +60°C transport Relative humidity: Rated application range...
Technical data 8.4 Housing Protection type IP 20 Protection class Excess power category Degree of pollution Mains connection via the IEC power cable Dimensions: Height 245 mm Width 128 mm Depth 125 mm Weight: 5 kg...
Taking out of operation 9 Taking out of operation Electric shock hazard! The discharging power pack is operated electrically and generates a high electric voltage. Improper decommissioning may result in electric shock. • Decommissioning may only be carried out by a trained and qualified electrician.
