- Page 1 Power Pack EN SL Version MT...
-
Page 3: Table Of Contents
Table of contents Notes on operating instructions ................. 5 Pictorial markings used ....................5 Safety ..........................6 Intended use ........................6 Danger sources ......................7 Installer qualifications ....................7 Operator qualifications ....................7 Description of unit ....................... 8 Installation ........................9 Important installation instructions ................. - Page 4 This page has been left intentionally blank.
-
Page 5: Notes On Operating Instructions

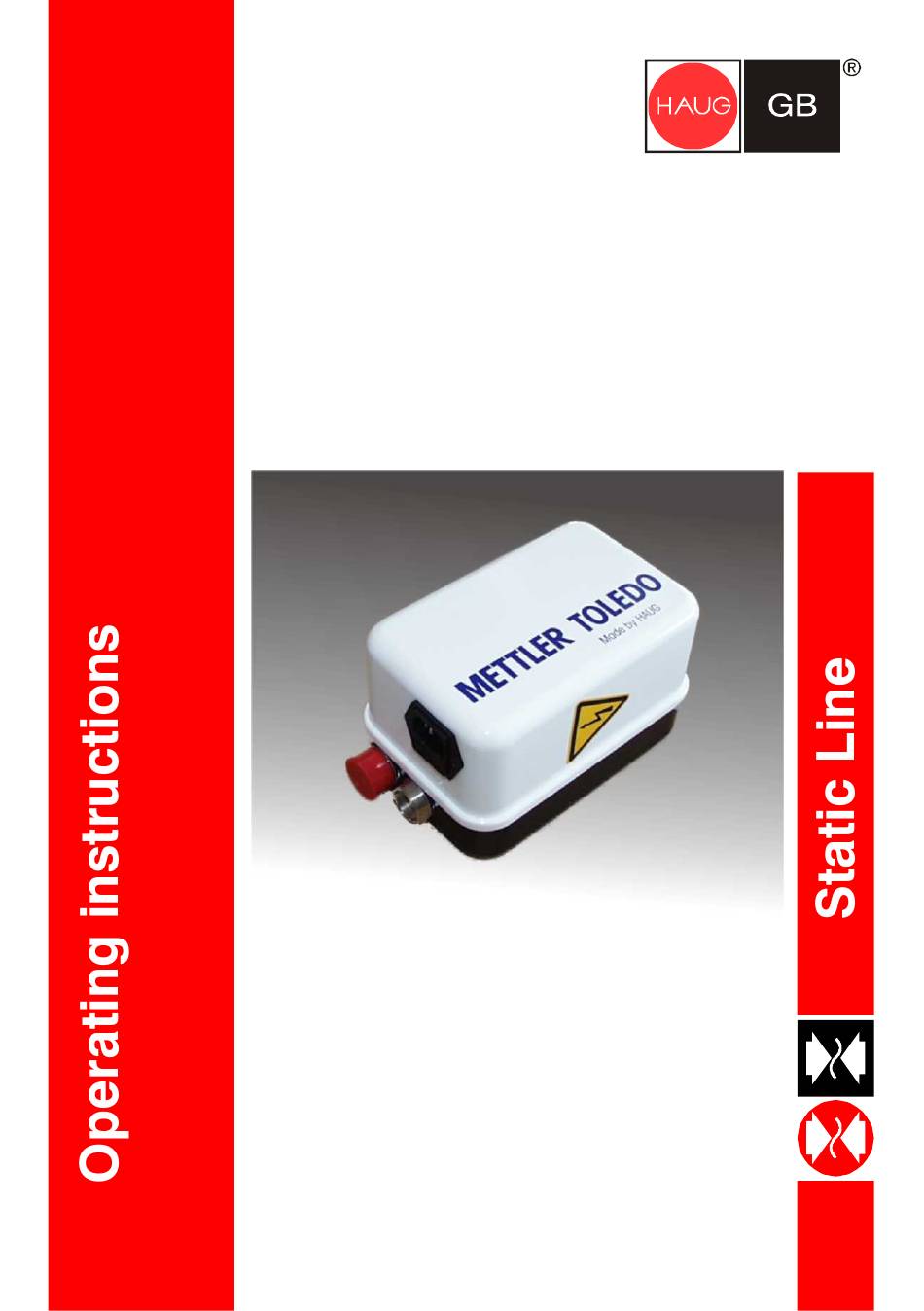

Notes on operating instructions Keep in a safe place for future reference! Types: EN SL (MT) 230 V 01.7906.005 EN SL (MT) 115 V 01.7907.005 EN SL (MT) 100 V 01.7907.055 Notes on operating instructions In these operating instructions, the power pack EN SL (MT) is also referred to as "unit". -
Page 6: Safety
Do not install or use the unit in areas subject to explosion hazards! The unit is intended exclusively for the high-voltage supply of HAUG ionizing units. It generates an alternating high tension of approx. 7 – 8 kV. It is intended, in connection with an ionizing unit, for the removal of electrostatic charges from, for example, glass, paper, plastics etc. -
Page 7: Danger Sources
Safety Danger sources ____________________________________________________________________________________ WARNING! High voltage! Danger of fatal accidents! Do not open unit! WARNING! Only plug in/unplug coaxial connector when the unit is switched off! ____________________________________________________________________________________ Defective high-voltage terminals and cables may lead to danger of electric shocks. Shut down the unit immediately in case of visible damage and suspected electrical defects. -
Page 8: Description Of Unit
Description of unit Description of unit Figure 1 Mains switch: Switch lights up green when the unit is switched on. Ground connection Figure 2 High-voltage terminals Check fuse (for replacement, refer to Chapter 7.1, page 14) Connection to supply voltage Page 8... -
Page 9: Installation
Installation Installation The unit may be installed by trained electricians only. The above mentioned person must have read the operating instructions and must follow the instructions, notes and safety advice. Important installation instructions ____________________________________________________________________________________ WARNING! High voltage! Danger of fatal accidents! Do not open unit! WARNING! Only plug in/unplug coaxial connector when the unit is switched off! -
Page 10: Setting Up, Connecting
Installation Setting up, connecting _____________________________________________________________________________________ WARNING! High voltage! Danger of fatal accidents! Do not open unit! WARNING! Only plug in/unplug coaxial connector when the unit is switched off! _____________________________________________________________________________________ Before connecting always check that the unit is suitable for the local mains voltage (the voltage is indicated on the name plate). -
Page 11: Application
The unit is intended exclusively for the high-voltage supply of HAUG ionizing units. It generates an alternating high tension of approx. 7 – 8 kV. It is intended, in connection with an ionizing unit, for the removal of electrostatic charges from, for example, glass, paper, plastics etc. -
Page 12: Remedy Of Defects
Remedy of defects Remedy of defects _____________________________________________________________________________________ WARNING! High voltage! Danger of fatal accidents! Do not open unit! WARNING! Only plug in/unplug coaxial connector when the unit is switched off! _____________________________________________________________________________________ CAUTION! The units include a thermal cut out. If the unit overheats at the ionizing unit due to short circuiting, the thermal cut out will switch off the unit. -
Page 13: Troubleshooting
Clean ionizing unit Check ionizing unit for damage. If damaged, immediately shut down and secure against restarting. If this does not remedy the fault, please return the unit with the ionizing unit to HAUG for checking (see reverse). Page 13... -
Page 14: Maintenance And Repairs
This unit does not include any parts which can be maintained or repaired by the operator. HAUG only is authorized to repair or calibrate the unit. Should the unit prove defective or if a defect is suspected, switch off unit immediately and secure against subsequent reuse. -
Page 15: Technical Data
Technical data Technical data Characteristics and specification Reference temperature 23 °C 2 HAUG High-voltage High-voltage terminals terminals High voltage U = approx. 7 - 8 kV Short-circuit current Ik ≤ 5 mA Cannot be used in pulsed mode Supply voltage... -
Page 16: Ambient Conditions
Technical data Ambient conditions Ambient temperature: Rated application range +5 °C to +45 °C Extreme range for storage and transport -15 °C to +60 °C Humidity: Rated application range 5 10 15 20 25 30 35 40 °C Air pressure: Rated application range 800 mbar to 1060 mbar Vibrations:... -
Page 17: Housing
Technical data Housing Degree of protection IP 20 Protection class Overvoltage category Pollution severity Mains cable via socket for Connection to supply voltage non-heating apparatus Dimensions: Height approx. 170 mm Width approx. 110 mm Depth approx 100 mm Weight: approx. 3,5 kg Page 17... -
Page 18: Disposal
Disposal Disposal Observe and maintain national and regional waste disposal regulations for the disposal of the unit! Page 18... - Page 20 HAUG GmbH & Co.KG Friedrich-List-Straße 18 D-70771 Leinfelden-Echterdingen Telefon 07 11 / 94 98 - 0 Telefax 07 11 / 94 98 - 298 www.haug.de E-Mail: info@haug.de HAUG Biel AG Postfach CH-2500 Biel / Bienne 6 Johann-Renfer-Strasse 60...
