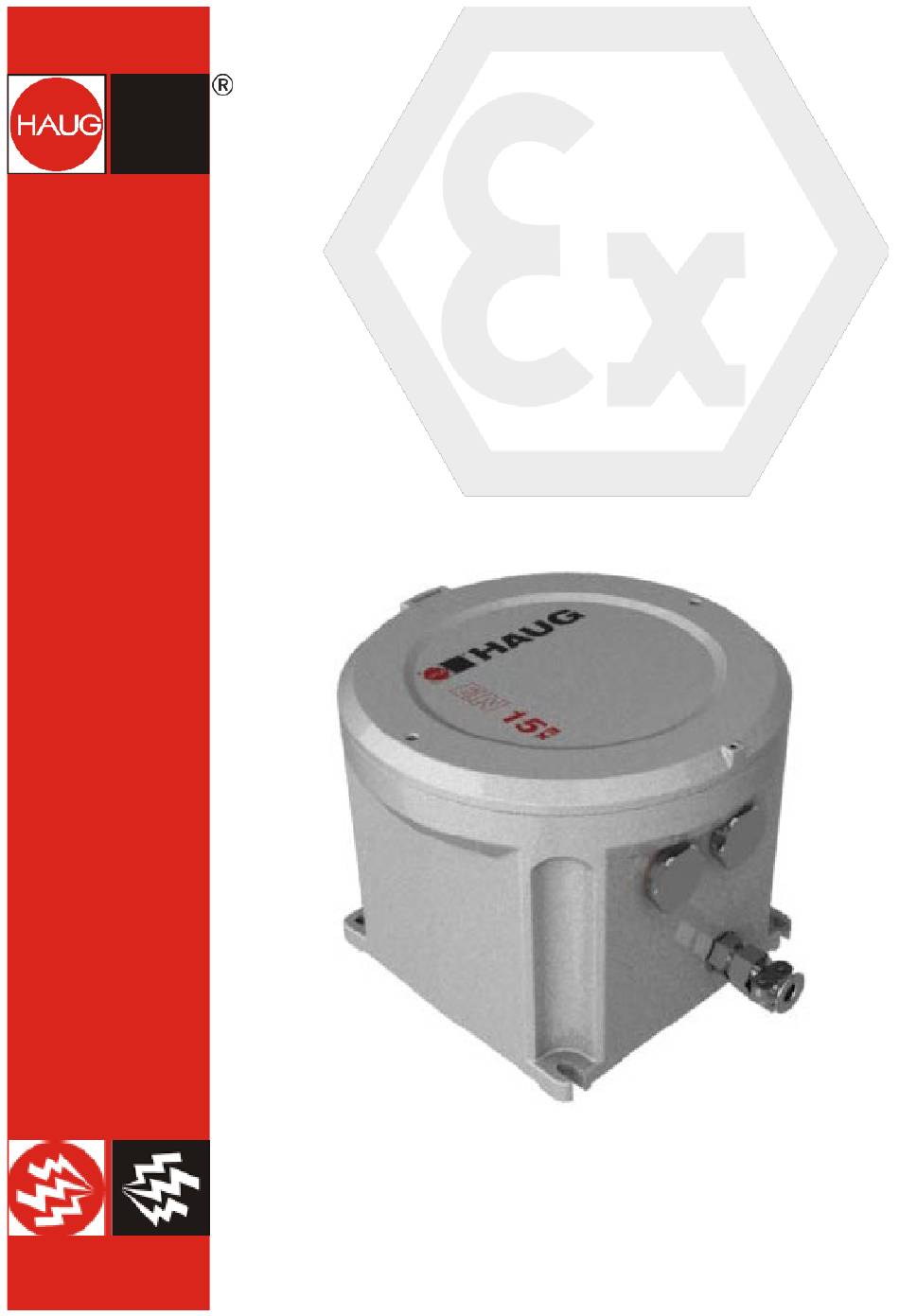

- Page 1 Instruction manual EN 15 Ex power pack Ident number: 01.7752.XXX (230 V), 01.7753.XXX (115 V) Keep for future reference! Ex Line...
- Page 3 Table of contents Lieferumfang ..............4 Benutzerhinweise ............5 Symbolik in der Bedienungsanleitung ....... 5 Sicherheit ..............7 Bestimmungsgemäß verwenden ........8 Geräteübersicht ............9 Installieren ..............11 Fehler beheben ............16 Sicherung austauschen ........... 17 Technische Daten ............18 Kenndaten und Spezifikationen ........
-
Page 4: Scope Of Delivery
1 Scope of delivery Check completeness of the scope of delivery before first use. – 1 EN 15 Ex – 2 screw-in handles – 1 D-0371-EN instruction manual If incomplete, contact HAUG GmbH & Co. KG. See back cover for address. - Page 5 User instructions 2 User instructions Read this instruction manual in full before installation and commissioning. Always observe the safety information. This instruction manual is part of the product and must therefore be kept for later use or for subsequent owners. Approved for installation and use in zone 1, zone 2, zone 21 and zone 22 potentially explosive areas.
- Page 6 User instructions Never dispose of in household waste. Caution, warning concerning a hazard point!
- Page 7 Safety 3 Safety Only persons authorised by the operator may carry out work on the power pack. The installer must be an electrician and must be trained in the installation regulations and country-specific installation regulations for potentially explosive areas. They must read the instruction manual in full.
- Page 8 Connection of other equipment invalidates the operating licence. The power pack is used exclusively to supply HAUG Ex ionizing units with an X-2000 Ex connector. In combination with an Ex ionizing unit, electrostatic charge is neutralised in a manufacturing process.
-
Page 9: Device Overview
Device overview 4 Device overview A 4 x Fixing eyelets for M 10 screws B Housing cover C Housing cover clamping screw (M 5) D 2 x Holes for enclosed screw-in handles E Input for mains supply line F 2 x Input for HV connection G Earth connection (terminal) - Page 10 Device overview H Protective earth (PE) Bridge Mains connection (N) Mains connection (L) L HV connection M Fuse holder with fuse N Earth connection (terminal)
-
Page 11: Installation
22 potentially explosive areas. NOTE: There is an operating licence for the power pack (ATEX). Only HAUG Ex ionizing units which are listed in the declaration of conformity may be connected. Connection of other equipment invalidates the operating licence. - Page 12 Installation 1. Check that the power pack matches the order data. In the event of damage to the power pack, contact HAUG GmbH & Co. KG. 2. Before connection, always check whether the correct supply voltage is available for the power pack.
- Page 13 Installation 5. The housing cover must be removed in order to connect the mains supply line and/or an ionizing unit. • First, loose the clamping screw on the housing cover. • Turn the housing cover counter-clockwise using the screw-in handles provided and lift off.
- Page 14 Installation 7. Guide the mains supply line through the input and connect it. A PE = Green/yellow braid B N = No. 2 braid C L = No. 1 braid D Mains supply line shielding • Tighten the cable gland with the specified torque.
- Page 15 Installation 9. Connect the power pack to the supply voltage. Always connect the protective earth (green/yellow) to a functioning mains protective earth. • Connection of the protective earth through part of the machine body is not sufficient. • L = No. 1 braid •...
-
Page 16: Troubleshooting
Always carry out troubleshooting outside the potentially explosive area. NOTE: If the fault cannot be remedied through this, send the power pack and the ionizing unit to HAUG GmbH & Co. KG for examination (see back cover for address). Fault Cause... -
Page 17: Replacing The Fuse
Troubleshooting 6.1 Replacing the fuse Equipment damage! An incorrect fuse in the power pack may result in a fault. This can cause a cable fire. • Use only fuses of the specified type. • Never use repaired fuses. • Never bypass the fuse. The device type and nominal voltage are specified on the type plate. -
Page 18: Technical Data
Technical data 7 Technical data 7.1 Characteristics and specifications Reference temperature 23 °C HV connections High voltage 6.7 ±1 kV~ Short circuit current < 5 mA Maximum connection length 18 m (ionizing bar + HV cable) 7.2 Supply voltage Frequency Power Device type Nominal value... -
Page 19: Tightening Torque
Technical data 7.4 Tightening torque Cable gland A Thread reducer B Cable gland C Cable input A Thread reducer 50 Nm B Cable gland 20 Nm C Cable input 10 Nm M 32 blind plugs 50 Nm... -
Page 20: Environmental Conditions
Technical data 7.5 Environmental conditions Use indoors only. Temperature: Nominal operating range +5 °C to +45 °C Limit for storage and transport -15 °C to +60 °C Humidity: Nominal operating range 20% to 65% RH Limit for storage and transport 0% to 85% RH Air pressure: Nominal operating range... - Page 21 Take out of operation 8 Take out of operation Risk of electric shock! The power pack is operated with electrical voltage and generates a high electrical voltage. Improper decommissioning may result in an electric shock. • Decommissioning may only be carried out by an electrician. 1.
- Page 24 made by...
