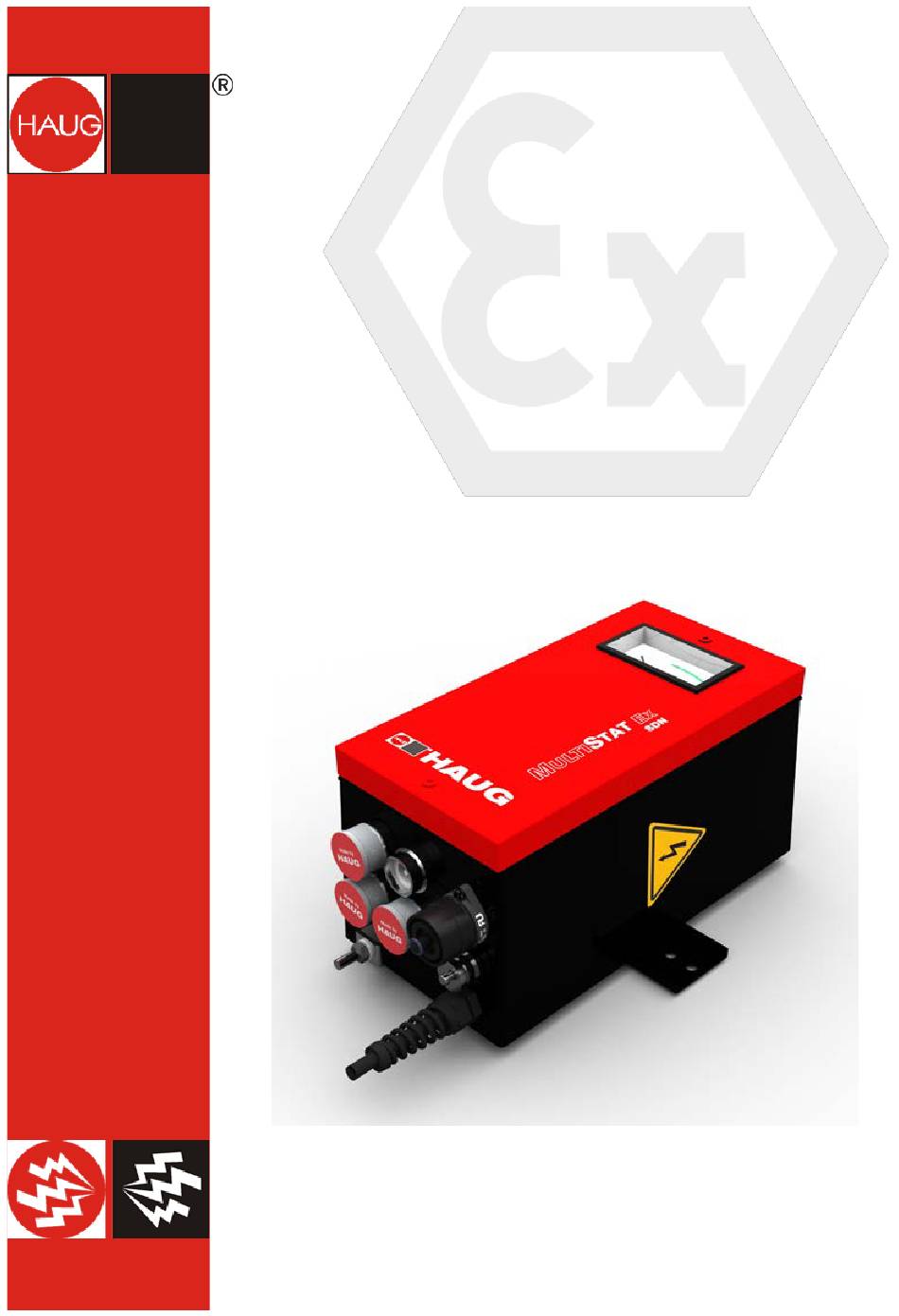

Haug Multistat Ex SDN Operating Instructions Manual

Discharging power pack

Advertisement

GB
Operating instructions
Discharging power pack
Multistat Ex SDN
Ident number: 01.7960.000 (230 V), 01.7961.000 (115 V)
Keep for future use!
Ex Line

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multistat Ex SDN and is the answer not in the manual?

Questions and answers

Summary of Contents for Haug Multistat Ex SDN

  • Page 1 Operating instructions Discharging power pack Multistat Ex SDN Ident number: 01.7960.000 (230 V), 01.7961.000 (115 V) Keep for future use! Ex Line...
  • Page 3: Table Of Contents

    Table of contents Operator instructions ..........4 Symbols used in operating instructions ......4 Symbols on the discharging power pack ......5 Safety ................6 Intended use ..............7 Product overview............8 Install ................9 Operate ..............15 Normal operation ............15 Using the K6 signal socket for the operation....16 Using the K1 signal socket for the operation....
  • Page 4: Operator Instructions

    Operator instructions 1 Operator instructions Before installation and commissioning read these operating instruction in full. Always observe the safety instructions. These operating instruction is a part of the product; make sure you retain them for later use or subsequent owners. The power pack is installed outside the EX-hazardous zone.
  • Page 5: Symbols On The Discharging Power Pack

    Operator instructions Never dispose of with household garbage. General hazard! 1.2 Symbols on the discharging power pack WARNING! High voltage ATTENTION! Only plug in/unplug the ionizing unit at the HV terminal when the discharging power pack is switched off.
  • Page 6: Safety

    Safety 2 Safety Only the persons authorized by the operator may carry out tasks on the discharging power pack. The installer must be a trained and qualified electrician and be acquainted with the construction rules and country-specific installation regulations for areas with potentially explosive atmospheres.
  • Page 7: Intended Use

    NOTE: An operating authorization (ATEX) exists for the discharging power pack. Only the HAUG Ex ionizing units listed in the operating authorization must be connected. If other units are connected, the operating authorization will become null and void.
  • Page 8: Product Overview

    Product overview 3 Product overview Multistat Ex SDN A fuse holder with fuse (Replacing fuse, refer page B Reset button with fault lamp C Power switch (is lit green if the power pack is switched D K1 signal socket (for...
  • Page 9: Install

    • Never install at a location subject to direct solar irradiation. NOTE: An operating authorization (ATEX) exists for the discharging power pack. Only the HAUG Ex ionizing units listed in the operating authorization must be connected. If other units are connected, the operating authorization will become null and void.
  • Page 10 Install 1. Check the model plate of the discharging power pack against the ordering data. In the event of damage to the discharging power pack, contact HAUG GmbH & Co. KG. 2. Before connecting, make sure that the correct supply voltage is available for the discharging power pack.
  • Page 11 Install 5. The ground socket of the discharging power pack must be connected to ground potential in line with applicable standards. • Grounding cables of at least 1,5 mm must be used. 6. Connect the discharging power pack to the supply voltage.
  • Page 12 Install Contact and separation spark-overs! When the ionizing unit is plugged in or unplugged while the discharging power pack is switched on, spark-overs will occur at the HV connection. This may result in defects in the discharging power pack. • Switch off discharging power pack before plugging in/unplugging ionizing unit.
  • Page 13 Install Damage to equipment! Destructive electrical charges on the contacts of the K6 signalling socket during the connection of the K6 signalling line may result in defects in the discharging power pack. • To protect the electronic system of the unit, self-discharge shall be ensured by means of contact with grounded machine parts.
  • Page 14 Install Damage to equipment! Destructive electrical charges on the contacts of the K6 signalling socket during the connection of the K6 signalling line may result in defects in the discharging power pack. • To protect the electronic system of the unit, self-discharge shall be ensured by means of contact with grounded machine parts.
  • Page 15: Operate

    Operate 5 Operate Preconditions: The discharging power pack and the ionizing unit are connected and installed as specified in the operator instructions. NOTE: After a fault has occurred, the error lamp starts blinking. The power pack switches off the HV. The following occurances may have triggered the fault: •...
  • Page 16: Using The K6 Signal Socket For The Operation

    Operate 5.2 Using the K6 signal socket for the operation Connecting the signal line K6 (accessory) to the K6 signals socket is mandatory. 1. Use the power switch to turn on the power pack. • To verify this, the green power switch is illuminated. •...
  • Page 17: Using The K1 Signal Socket For The Operation

    Operate 5.3 Using the K1 signal socket for the operation Connecting the signal line K1 (accessory) to the K1 signals socket is mandatory. 1. Use the power switch to turn on the power pack. • To verify this, the green power switch is illuminated. •...
  • Page 18: Application Example Of A K1 Signal Socket

    Operate 5.4 Application example of a K1 signal socket Example 1: A Relay contact for mains failure B Relay contact for HV failure C1 Bridge 1 C2 Bridge 2 D Output E Input High-voltage Continuity (D and E) Normal operation Malfunction Example 2: A Relay contact for mains...
  • Page 19: Troubleshooting

    • Faults may only be eliminated by a trained and qualified electrician. NOTE: If the error cannot be removed in this way, return the discharging power pack and ionizing unit for checking to HAUG GmbH & Co. KG (the address is provided on the back of the envelope). Fault Cause...
  • Page 20: Replacing Fuse

    Troubleshooting 6.1 Replacing fuse Damage to equipment! An incorrect fuse in the discharging power pack may cause a defect. This may result in a cable fire. • Only use fuses of the specified type. • Never use repaired fuses. • Never bridge the fuse. The unit type and the rated voltage are indicated on the nameplate.
  • Page 21: Flow Diagram 1

    Troubleshooting 6.2 Flow diagram 1 Proceed with troubleshooting of all components exclusively outside of the Ex zone. The error lamp is blinking. Switch off the discharging power pack and unplug the ionizing units. Switch on the discharging power pack. Discharging power pack defective Is the error lamp blinking? Switch off the discharging power pack and plug in an...
  • Page 22: Flow Diagram 2

    Troubleshooting 6.3 Flow diagram 2 Proceed with troubleshooting of all components exclusively outside of the Ex zone. Error message Switch off the discharging power pack and unplug the ionizing units. Switch on the discharging power pack. Discharging power pack defective Error message? Switch off the discharging power pack and plug in an ionizing unit.
  • Page 23: Accessories/Spare Parts

    Accessories/spare parts 7 Accessories/spare parts Accessories and spare parts can be sourced from your authorized sales partner or directly from HAUG GmbH & Co. KG (the address is provided on the back of the envelope). Order Article Illustrations number Circular plug (K1) X –...
  • Page 24 Accessories/spare parts Order Article Illustrations number Control plug (K6) X – 7807 5 m shielded signalling line K6 with 06.8976.000 assembled plug 10 m shielded signalling line K6 with 06.8976.001 assembled plug 20 m shielded signalling line K6 with 06.8976.002 assembled plug Combicheck 12.7231.000...
  • Page 25: Technical Data

    Technical data 8 Technical data 8.1 Characteristics and specification Reference temperature 23 °C HV terminals High-voltage 6,7 ±1 kV~ Short-circuit current < 5 mA Maximum connected length 18 m (ionizing bar + HV cable) Reset pulse > 0,5 s Cannot be used in pulsed mode Relay contact rating K1/K6 max.
  • Page 26: Ambient Conditions

    Technical data 8.3 Ambient conditions Never use in potentially explosive atmospheres. Use indoors only. Temperature: Rated range of use +5 to 45°C Limit range for storage and -15 to 60°C transport Relative humidity (RH): Rated range of use 20% to 65% RH Limit range for storage and 0 % to 85 % RH transport...
  • Page 27: Housing

    Technical data 8.4 Housing Protection type IP 54 Protection class Mains supply approx. 2,6 m fixed on unit Dimensions: Height 245 mm Width 130 mm Depth 130 mm Weight: 5 kg...
  • Page 28: Taking Out Of Operation

    Taking out of operation 9 Taking out of operation Electric shock hazard! The discharging power pack is operated electrically and generates a high electric voltage. Improper decommissioning may result in electric shock. • Decommissioning may only be carried out by a trained and qualified electrician.
  • Page 30 NOTES: ....................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 32 made by...
