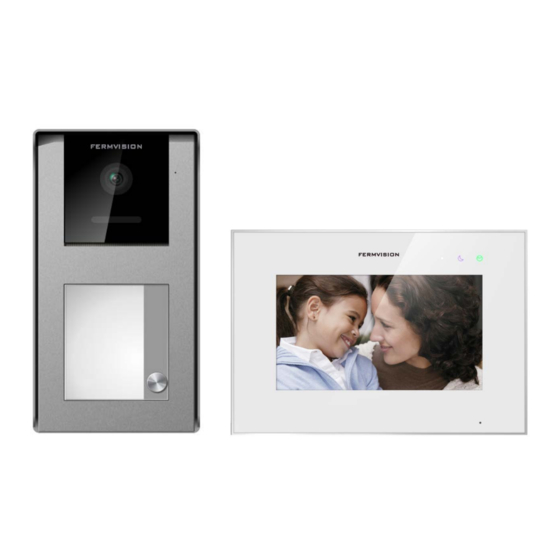

- Page 1 2 WIRE SYSTEM FVQ-6040APP KIT & FVQ-6040 KIT VIDEO DOOR PHONE SYSTEM INSTALLER MANUAL FVQ-6022 FVQ-6013/9013WIFI Please read the manual carefully before using the product. Please note that images and sketches in this manual may be different from the actual products...
-
Page 2: Table Of Contents
Contents Monitor Description ..............................3 Door Station Description ............................... 3 Door Station programming ............................5 Addressing the monitors (When using more than one monitor): ................6 Impedance Switch ................................. 6 Viewing Multiple Door Stations On The Monitor ......................7 Wiring Diagrams ................................9 Lock Wiring .................................. -
Page 3: Monitor Description
Monitor Description Name Description Micro SD Socket for Micro SD Power Indicator White LED when power on Do Not Disturb Purple LED when function is enabled Message Indicator Green LED when you have missed calls Microphone Screen 7 Inch Digital TFT LCD Switch Bit 1- Bit 5 –... - Page 4 Name Camera LED Lights Speaker Name plate Microphone Push button Weatherproof foam cover Testing point Waterproof rubber ID Card plug Reset ID card settings Volume Adjustment Dip Switch for Address, unlock, ringtone Connection for bus, lock, exit button...
-
Page 5: Door Station Programming
Door Station programming Address of Door station This is controlled by dip switch 1 & 2 Type Dip Switch Setting Door 1 Door 2 Door 3 Door 4 Exit Button Control Type Dip Switch Setting Lock 1 Lock 2 Ring Alert Type Dip Switch Setting Ringtone Disabled... -
Page 6: Addressing The Monitors (When Using More Than One Monitor)
Addressing the monitors (When using more than one monitor): This is controlled by dip switch 6 & 7 on the back of the monitor Type Dip Switch Setting Master Monitor Slave Monitor 1 Slave Monitor 2 Slave Monitor 3 Impedance Switch Only turn to the on position when the monitor is the end of line. -
Page 7: Viewing Multiple Door Stations On The Monitor
Viewing Multiple Door Stations On The Monitor When using multiple door station you need to activate the door station to view on the monitors. Using the settings menu on each individual monitor type in the following code depending how many door station you have. -
Page 9: Wiring Diagrams
Wiring Diagrams Notes: When using more than 1 door station you require a 4 branch Door station module FVQ-6012D When using more than 1 monitor in star configuration you require a 4 branch monitor module FVQ-6011M Door Station is addressed as number 1 by default... - Page 10 1 Door Station to 4 Monitors (Star Configuration)
- Page 12 1 Door Station to 3 Monitors (Series)
- Page 14 4 Door Station to 4 Monitors (Star Configuration)
- Page 16 4 Door Station to 3 Monitors (Series)
-
Page 18: Lock Wiring
Lock Wiring The system has 2 Locks • Lock 1 – 12 VDC (250mA) Output on exit or door release o Lock 1 is only power to unlock Lock 2 – Dry Collector Normally Open • The Exit button can be configured in 2 modes (Default is Lock 1) Only Lock 1 (DEFAULT MODE) •... - Page 19 Power to Unlock Power to Lock Lock 1 Lock 2 Exit Button To Open Lock 1 Lock 2...
- Page 20 Power to Unlock Power to Lock Lock 1 Lock 2 Exit Button To Open Lock 1 Lock 2 ...
- Page 21 Power to Unlock Power to Lock Lock 1 Lock 2 Exit Button To Open Lock 1 Lock 2 Independent Exit button...
-
Page 22: Wi-Fi Configuration
Wi-Fi Configuration For latest up to date instructions please visit www.fermaxaus.com.au Please download the Fermvision Wifi Smart phone application... - Page 23 Notes • Slots or openings in the back of the monitor are provided for ventilation and to ensure reliable operation of the video monitor or equipment and to protect it from overheating. These openings must not be blocked or covered. All parts should be protected from violence vibration.
