2 WIRE SYSTEM
FVI-6010-V2
VIDEO DOOR PHONE SYSTEM
USER MANUAL
RF CARD
FVI-6015P2
FVI-6013MEM
• Please read this manual carefully before using the product you purchase,and keep it well for future
use.
• Please note that images and sketch maps in this manual may be different from the actual product.
-1-
Advertisement
Table of Contents
Related Manuals for Fermax FVI-6010-V2
Summary of Contents for Fermax FVI-6010-V2
- Page 1 2 WIRE SYSTEM FVI-6010-V2 VIDEO DOOR PHONE SYSTEM USER MANUAL RF CARD FVI-6015P2 FVI-6013MEM • Please read this manual carefully before using the product you purchase,and keep it well for future use. • Please note that images and sketch maps in this manual may be different from the actual product.
-
Page 2: Table Of Contents
CONTENTS Front panel ..........................4 Terminal Description ......................5 Mounting ..........................7 Quick Guide .......................... 8 Screen........................... 11 Answering a call ........................12 Pan-tilt & Zoom ........................14 Adjusting screen&volume ....................15 Door release ......................... 16 Calling other monitors ......................16 Monitoring .......................... - Page 3 Functions Setting Up ......................39 Setting Door Station Address .................... 40 Setting Unlock Mode ......................41 Setting Unlock Time ......................41 Setting Nameplate Illumination Mode ................42 Setting Night View LED Illumination Mode ............... 42 Setting Ring-back Tone ....................... 43 Registering ID Card ......................
-
Page 4: Front Panel
Front panel SD card Key functions Item Description • See the next page for details Digital LCD touch screen • Display the visitors' image • Press to communicate hands free with visitor Talk/Mon button • Press to view the outdoor condition in standby mode Menu button Press to open main menu in shortcut Unlock button... -
Page 5: Terminal Description

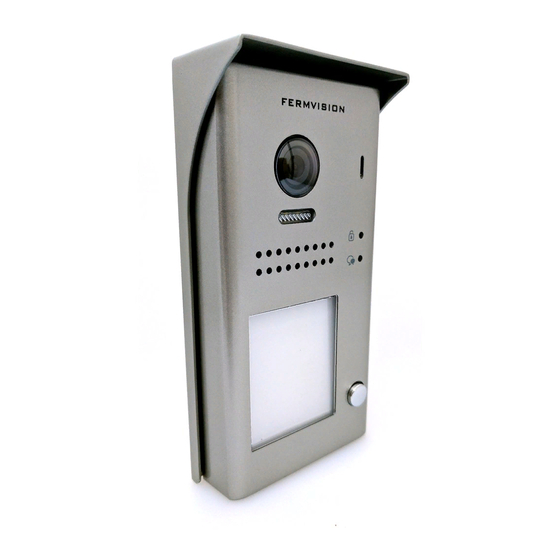

[10] [11] [12] [13] [1] Microphone [5] Nameplate [10] Rainy cover [2] UNLOCK indicator [6] Front panel [11] Mounting hook [3] CALL indicator [7] Speaker [12] Connection port [4] Call button [8] Night view LED [13] Screw hole [9] Camera lens Terminal Description L1,L2: Bus line terminal. - Page 6 Lock Control Jumper PIR Motion Detector Connect Port P L S + L 1 L 2 Main Connect Port Lock Control Jumper: To select the lock type. Motion Detector Connect Port: To connect external PIR motion detector. Main Connect Port: To connect the bus line and the electronic locks.
-
Page 7: Mounting
Mounting Mounting box (size:86x86mm) The unit Mounting screw x 2(included) 2 wire cable Mounting bracket The installation height is suggested to 145~160cm. 1. Use screws to fasten the mounting bracket to the wall with mounting box. 2. Connect the 2 wire cables to the unit. 3. -
Page 8: Quick Guide
Quick Guide 1. Accessing to programming menu – Monitors Turn on monitor, press the Fermvision logo located at the bottom left of the screen (Figure 1), and then hold down the key button (right hand side of the main button) (Figure 2) until a new menu comes up, which is shown on Figure 3. - Page 9 Bit-6 switch setting Bit state Setting Bit state Setting ON(1) OFF(0) When monitor is not When monitor is at at the end of bus line. the end of bus line. 1 2 3 4 5 1 2 3 4 5 3.
- Page 10 5. Programming Door Station address (When using more than one door station) See Figure 1, press KEY_SET button, then press KEY_ X once (where X goes from 1-4), wait 10 seconds or press KEY_SET button LED_UNLOCK four times to save the settings. LED_TALK E.G.: KEY_SET...
-
Page 11: Screen
Screen Main Menu The Main menu is your starting point for using all the applications on your monitor. You can cus- tomize your Main menu to display your logo. Touch anywhere of the screen on monitor in standby mode, the Main menu will appear as follow: MESSAGE MONITOR Touch it to write messages or... -
Page 12: Answering A Call
Answering a call • When there is a call from a video door station.The call tone sounds, an image will be dis- played on the screen. • Touch icon on screen or press TALK/MON button on the panel, begin communicat- ing hands free with the visitor for 90 seconds. - Page 13 Adjusting image scale while being called/talking It’s available to adjust image scale while being called. Total 3 image modes can be selected. Follow the steps: 00:10 DS-1 00:10 DS-1 00:10 DS-1 Normal Compare the difference of these 3 image modes: To complete communication TALK/MON button on the panel to complete the communi- • Touch...
-
Page 14: Pan-Tilt & Zoom
Pan-tilt & Zoom It is available to adjust the display mode for viewing images at a fish-eye door station by using the 5 direction pad button. When an image at a door station is displayed,move to the desired position by touching on the screen to view the image in zoom mode. -
Page 15: Adjusting Screen&Volume
Adjusting screen&volume While receiving a call from door station, or monitoring /communicating with the visitor,you can adjust the screen and speaker volume. Follow the steps: 00:10 DS-1 00:10 DS-1 Normal Brightly Soft User Adjusting images Total 4 scene modes can be selected in sequence:Normal, Brightly, Soft and User.Whichever mode you choose, there will be a corresponding value for contrast,brightness and color. -
Page 16: Door Release
Door release It is available to release the door during a call-in, communication,or while monitoring a door station. 00:10 DS-1 Touch either icon on the screen or press UNLOCK button on the the panel to release door. The door lock is released for the set door release time. -
Page 17: Monitoring
Calling other monitors in the same system Touch [Name list Call] icon on monitor, the users in the same system will be displayed. Just select one target, touch icon to call the corresponding user. If the call is answered,conversation is activated. Note: Name List * Use "... -
Page 18: Recording
Video Quad Monitoring: If the system installs multi cameras via QSW. Video quad monitoring is available. • On Monitor select page, touch “ > “ icon to scroll next page. • Select “QUAD-1” item to activate video quad monitoring, see the following steps: 00:10 DS-1 Monitor Select... -
Page 19: Viewing Images/Videos
The recorded images are stored in the built-in memory first. * Max.118 pictures can be stored in inner memory * If a micro-SD card is installed, images can be copied to SD card. * Max. 32G Micro SD card is supported. Note: * Automatic recording function cannot be cancelled. * Automatic recording is not available while monitoring a door station. -
Page 20: Formating An Sd Card
Formating an SD card Micro-SD cards need to be formatted when using them in this monitor for the first time. * When formatting an micro-SD card, all existing data on card is erased. * To EXPORT RECORDED IMAGES, refer to following item on this page. * To VIEW SD CARD INFO, on main menu page, touch Multimedia->Memo information. 1.On main menu page,touch Multimedia->Format SD Card. -
Page 21: Leaving Messages
Leaving messages This function is very useful when you are away home. Must insert a micro SD card to support this function. To activate the function, please follow the steps: 00:10 DS-1 Call Scenario Normal Do Not Disturb Leave a Message,Immediately Leave a Message,If No Answer Divert, Simultaneously Divert, If No Answer... -
Page 22: Mute Function
You can review who is visiting at some time. 1. Touch one of the visiting list. 2. Touch icon to show the caller's image. Current page Total page Visitor Message 01/N Playback visitor's video&audio When touch the 06-23 15:22 DS-1 item,"... -
Page 23: Viewing Calling Records
Viewing calling records All calls from door station or other monitors will be recorded and can be reviewed afterwards. On main menu page, touch[Call Record] icon, the most recent call records are displayed. Current page Total page Call Record 01/05 Be called in 06-23 15:22... -
Page 24: Message Function
Message function The messages received or sent out can be reviewed on monitor, and you can write messages between monitors. 1.Reviewing received messages: • On main menu page,touch [Message]->[Inbox] icon,the most recent received messages will be displayed. • Select one of the messages to view the contents. 2.Reviewing sent out messages: • On main menu page,touch [Message]->[Outbox] icon,the most recent sent out messages will be displayed. -
Page 25: Openning Staircase Light
Sending address Keypad type abc- Alphabet keypad [02] 123-Number keypad Cursor Edit box Delete the last character Press to send the SMS Switch the keypad between alphabet and numbers Space key Exit current page Insert a space. Enter key Move the cursor. Opening staircase light Note: The staircase light should be connected on the system, and this function should be sup- ported by RLC. -
Page 26: Motion Detect Function
Motion detect function This function is available only if the setting of Motion Detect Enable is selected. This function should make effective by door station with motion detection. Follow the steps: 00:10 DS-1 • Detection off: close all motion detections of door station. • Detection on: activate the motion detect function,the door station motion detection should be activated individually. -
Page 27: Setting Date And Time
Setting door station detection: The following is taken door station1 for example. 1.On main menu page,touch icon. 2. Touch DS1 Detection item.(the door station with motion detector should be online) Save settings and exit Unsave and exit Should be selected to activate door station1 motion detection The reaction for monitor... -
Page 28: Setting Ring Tone
Setting ring tone The ring call tone can be set individually to distinguish different calling sources. Total 20 tones can be selected. 1.On main menu page, touch settings icon ->[Sounds]. 2.Touch the setting target of door tone,intercom tone,door bell tone and alert tone individually, then touch icon to change the tone. -
Page 29: Enabling/Disabling The Operation Sound
Enabling/Disabling the operation sound You can make a beep sound for the monitor when touching the screen. 1.On main menu page, touch settings icon ->[Sounds]. 2.Click Touch Key Sound On setting item, when “ “ symbol is displayed in the frame the setting is activated.Click the item again to cancel. -
Page 30: Setting Monitor Time
Setting monitor time The monitor time can be changed at any time. It's available to set 30s,40s,50s,1min,2min,3min, 4min,5min,6min,7min,8min,9min,10min. * 30s is the default monitor time. 1.On main menu page, touch settings icon ->[More...]. 2.Select Monitor Time Set item. 3.Touch icon to adjust the levels. Settings will perform immediately. Enabling/Disabling motion detect function You can make it possible (ENABLE) or not (DISABLE) to activate motion detect function from this monitor. -
Page 31: Enabling/Disabling Intercom Function
Enabling/Disabling intercom function You can enable or disable intercom function from this monitor. 1.On main menu page, touch settings icon ->[More...]. 2.If select Intercom Disable item,the intercom function is forbidden. *In default setting, intercom function is enable for the monitor. Changing the display language The default language can be customized.But you can change it to the language you need at any time. -
Page 32: Restoring To Default Setting
Restoring to default setting The restore to default function allows the user to recover the settings to factory setting. • On main menu page, touch settings icon ->[About]. • Touch icon, a message of "Restore To Default?" will be asked. • Touch icon to start the restore. - Page 33 Entering Help page Input the key “? and ok” to open Help instructions menu. Refer to the followings: INSTALLER SETUP Help 01/04 2412:Reset to Default Setting ? + OK: Help Menu 2499:Format Memory @ + OK: Address Setting Menu 2810:MCU Code Update 2811:TFT,UI Code Update 2812:Consumer Tune Update 2813:Format SD Card...
- Page 34 Setting slave monitor panel on In default mode,when receiving a call,the master and slave monitors will ring at the same time,and just the master monitor can display the image while the slave monitors will not. But the settings can be changed,you can set the master monitor and all the slave monitors to panel on at the same time when being called.
- Page 35 Manual Input Address It’s available to input the address manually for this monitor. • Total 32 numbers to be set, from 00~31. • When multi monitors need to be installed in one apartment, these monitors should use the same user code, and the master/slave mode should be set on the monitor. (Details refer to the section of Setting Slave Monitor) 1.On Address setting page,select Manual Input Address setting mode, then touch icon, a...
-
Page 36: Connecting Basic One-To-One
Connecting Basic One-to-one ID=0 Code=0, DIP6=on 100~240VAC FVI-6017PC6 RF CARD BUS(IM) BUS(DS) L1 L2 PL S+ S- DIP Switches 1 2 3 4 5 6 • The door station is also compatible with other monitors which are provided by our company. Connecting Multi Door Stations door station door station... -
Page 37: Connecting Multi Monitors
Connecting Multi Monitors Basic IN-OUT Wiring • The door station is also compatible with other monitors which are provided by our Code=15, DIP6=on company. • Distributor is unnecessary in full audio system, and IN-OUT mode is recom- mended. Code=14, DIP6=off • For the last monitor connected to the system, DIP6 should set to ON. - Page 38 Star Topology Wiring With FVI-6011DBC4A Code=12, DIP6=on Code=13, DIP6=on Impedance OFF ON switch Code=15, DIP6=on Code=14, DIP6=on Code=0, DIP6=on Code=1, DIP6=on Impedance OFF ON switch Code=3, DIP6=on Code=2, DIP6=on 100~240VAC FVI-6017PC6 FVI-6011DBC4A BUS(IM) BUS(DS) Optional functional module BDU bus amplifier module RLC staircase light controller module FVI-6011DBC4A 2/4 inputs branch distributor RF CARD...
-
Page 39: Functions Setting Up
Functions Setting Up This section explains the settings of each function,please refer to the following table: To perform the settings for the function LED_UNLOCK you want,you should move away the met- LED_TALK al front panel. Please refer to the sketch KEY_SET KEY_4 map. -
Page 40: Setting Door Station Address
Setting Door Station Address Total 4 addresses can be configured. It can be modified either before or after installation. 0 is default, to change the setting, please follow the steps: ID=0,1 door station ID=1,2 door station ID=2,3 door station ID=3,4 door station In standby mode, press UNLOCK Indicator:OFF Buzzer Beep+, Beep KEY_SET button once TALK Indicator:OFF Press KEY_1 button to set Press KEY_2 button to set... -
Page 41: Setting Unlock Mode
Setting Unlock Mode There are 2 unlock modes, Normally opened and Normally closed. Normally opened is default, to change the setting, please follow the steps: In standby mode, press Press KEY_1 button to set Press KEY_1 button again KEY_SET button three the unlock mode to to set the unlock mode to times. -
Page 42: Setting Nameplate Illumination Mode
Setting Nameplate Illumination Mode There are 3 illumination modes for nameplate indicator, Normally on,Normally off and Auto. Normally on is default, to change the setting, please follow the steps: Press KEY_3 button to set Press KEY_3 button again Press KEY_3 button again In standby mode, press KEY_SET button three the nameplate illumination... -
Page 43: Setting Ring-Back Tone
Setting Ring-back Tone If allow ring-back tone, press the call button to call monitor, a ring-back call tone can be heard from door station. There are 3 ring-back call tones, Ringing one time,Ringing continuously and No ring-back tone. Ringing one time is default, to change the setting, please follow the steps: In standby mode, press Press KEY_1 button to set Press KEY_1 button again... - Page 44 Authorizing master cards: By default,there are two master cards marked MASTER CARD ADD and MASTER CARD DELETE ,but you should know that the master card can be authorized by users at any time. That means any two user cards can be authorized to master cards,When registered new master cards, the old master cards will be invalid automatically.
- Page 45 Adding User Cards: Show the master card of Show user cards to be Show the master card of MASTER CARD ADD to ID added in sequence. MASTER CARD ADD again card window in standby. to exit. UNLOCK Indicator:OFF UNLOCK Indicator:OFF UNLOCK Indicator:OFF TALK Indicator:ON TALK Indicator:Blink one time...
-
Page 46: Connecting Electric Lock
Connecting Electric Lock Door Lock Controlled with Internal Power 1 2 3 1.Electronic lock of Power-on-to-unlock type should be used. Jumper position on 2&3 2.The door lock is limited to 12V, and holding current must be less than 250mA. PL S+ S- 3.The jumper should be placed on position 2 and 3 before connecting. -
Page 47: Cables And Requirments
Cables and Requirments The maximum distance of the wiring is limited in the DT system. Using different cables may also affect the maximum distance which the system can reach. Basic IN-OUT Wiring Mode Cable and distance(unit:m) Cable Usage ≤2 IM ≤16 IM Twisted cable 2x0.75mm Twisted cable 2x1mm... - Page 48 Star Topology Wiring Mode With FVI-6011DBC4A FVI-6011DBC4A FVI-6017PC6 Cable and distance(unit:m) Cable Usage Twisted cable 2x0.75mm Twisted cable 2x1mm RF CARD -48-...
-
Page 49: Specification
Specification Power supply: DC 24V Power consumption: Standby 0.27W; Working 7W(Indoor Station) Standby 0.8W; Working 3W(Outdoor Station) Camera: Color CMOS, 520TVL 1/4’’ camera,105 wide angle Unlocking Time: 1~99s Lock Power supply: 12Vdc, 280mA(Internal Power) Number of relay circuits: 2(the second lock need external device to support) Screen: 7 Inch digital color TFT Display Resolutions:... - Page 50 Note -50-...
- Page 51 -51-...
- Page 52 FVI-6010-V2 The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. -52-...
