Monitor Description; Door Station Description - Fermax FVQ-6040APP KIT Installer Manual

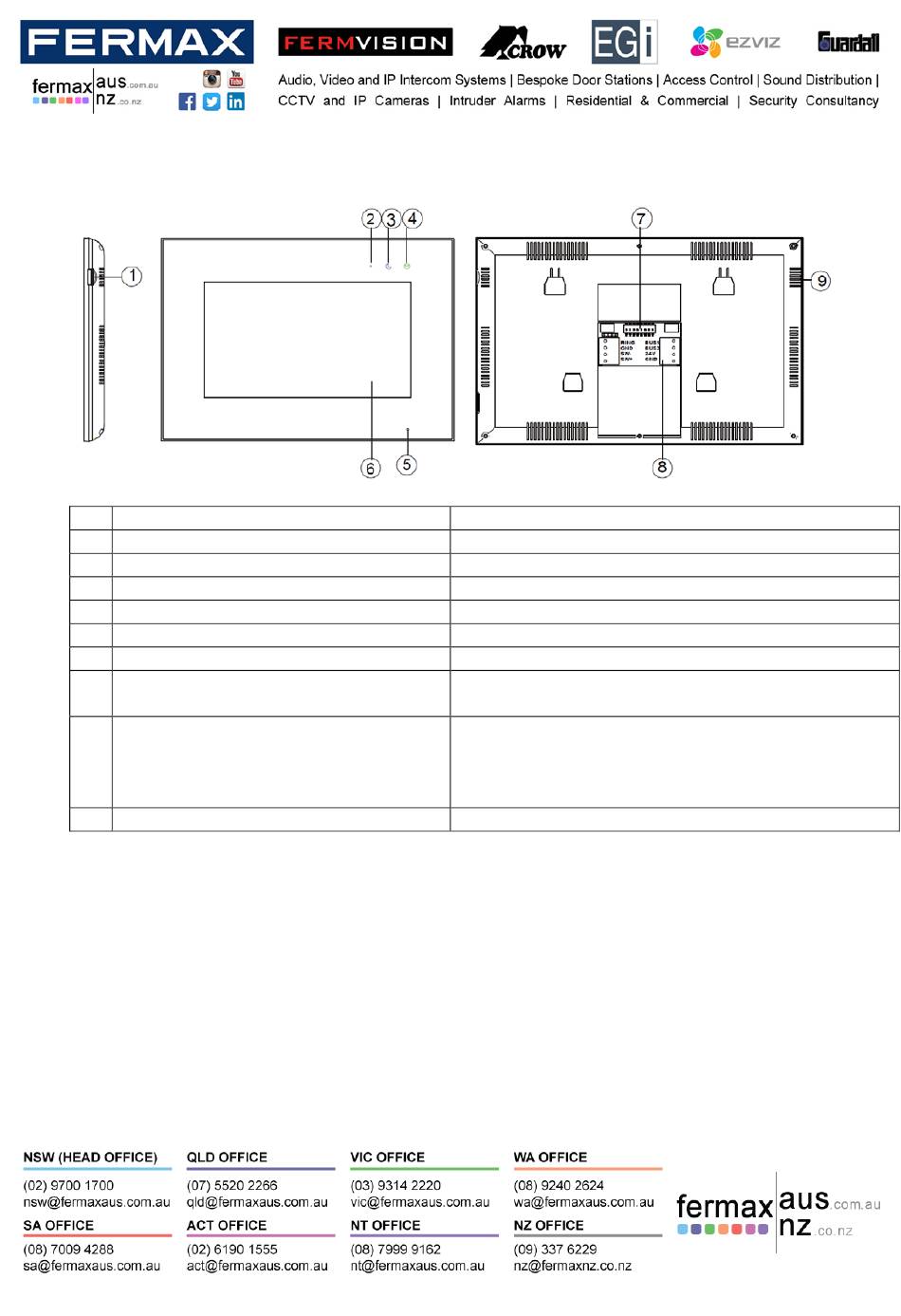

Monitor Description

NO
1
2
3
4
5
6
7
8
9

Door Station Description

Name
Micro SD
Power Indicator
Do Not Disturb
Message Indicator
Microphone
Screen
Switch
Connection Point
Speaker
Description
Socket for Micro SD
White LED when power on
Purple LED when function is enabled
Green LED when you have missed calls
7 Inch Digital TFT LCD
Bit 1- Bit 5 – Home address
Bit 6 – Bit 7 – Master and slave selection
BUS1&BUS2 – System connection bus
24V & GND – External Power supply (Not needed)
COM & NO – Connector for external speaker
SW+ & SW- : Connector for external door bell
3
