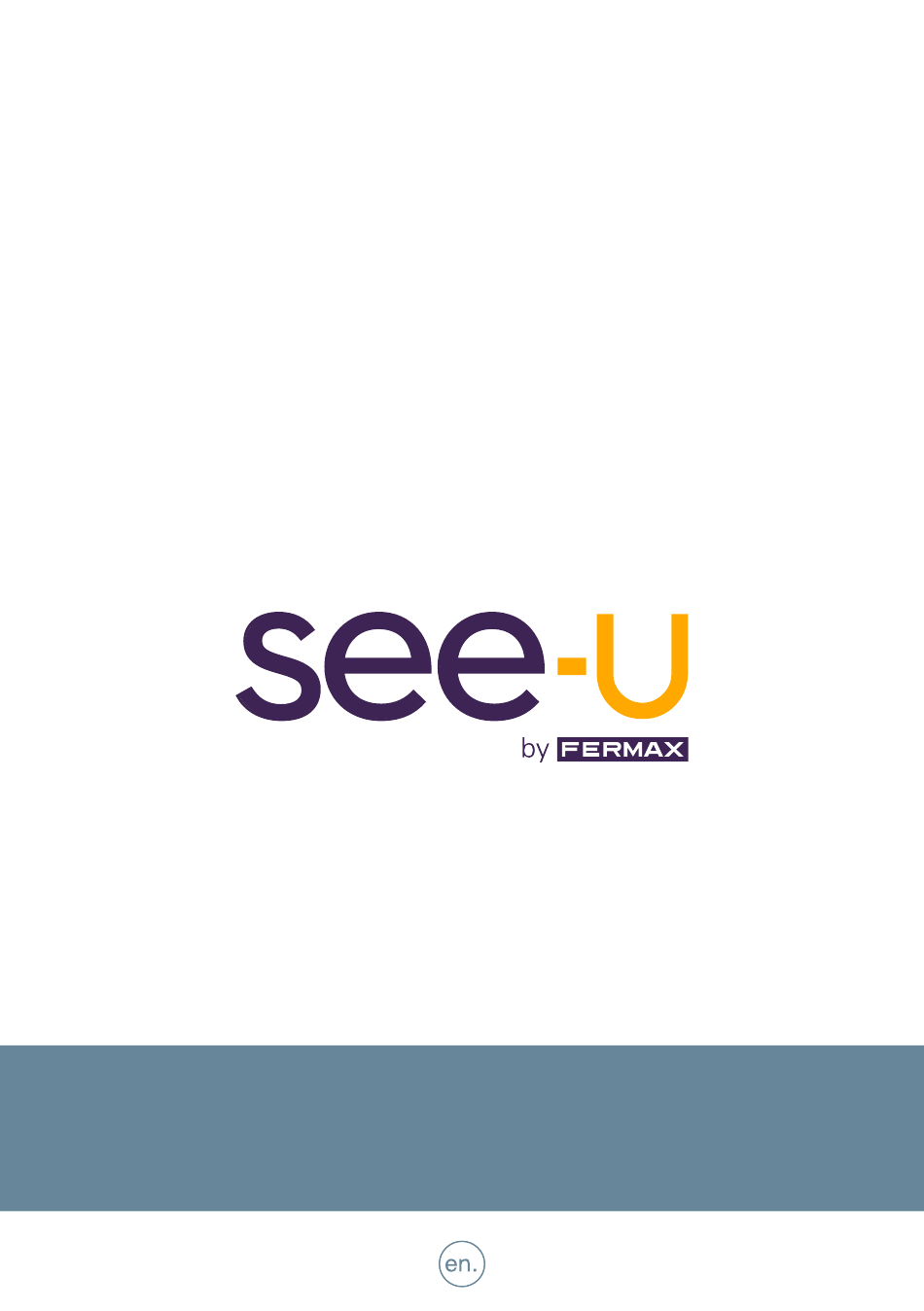

  • Page 1 SEE-U 7'' 1L KIT ADVANCED INSTALLATION MANUAL...
  • Page 2 Technical publication for information purposes released by FERMAX ELECTRÓNICA S.A.U. FERMAX ELECTRÓNICA applies a continuous improvement policy, therefore it reserves the right to modify the contents of this document, as well as the product features hereof at any time and without prior notice.

  • Page 3: Table Of Contents

    CONTENTS 1. DESCRIPTION 2. INSTALLATION 2.1 Monitor Installation 2.2 Installation of the Panel 2.3 Connection Diagrams 3. CONFIGURATION 3.1 Monitor Configuration 3.1.1 Notification LEDs 3.1.2 Navigation Mode 3.1.3 Standby Mode 3.1.4 Call Mode 3.1.5 Rear of the Monitor 3.2 Configuration Panel 3.3 Use of the Panel SEE-U 7'' 1L KIT...

  • Page 4: Description

    1. DESCRIPTION PRODUCT AND CONTENT REF: F01392 7” Monitor REF: F01395 Panel REF: F01390 Power Adapter SEE-U 7'' 1L KIT...

  • Page 5: Installation

    2. INSTALLATION 2.1. INSTALLATION OF THE MONITOR Location of the monitor installation The standard installation height of the monitor is approximately 1600 mm, where the centre of the screen is at eye level; in this case, the centre of the metal installation fixture is 1450 mm above the floor.

  • Page 6: Connection Diagrams

    2.3. CONNECTION DIAGRAMS 1 panel 1 monitor 15 Vdc / 1.5A 22.5W Panel 1 NTSC BUS BUS COM NO/NC EXIT GND S+ CCTV GND Doorbell BELL Hallway exit button Lock 12 Vdc SOURCE Max.250mA automatic gate Note: - Compatible with PAL encoding system cameras. - Do not connect door locks with an operating voltage other than 12 Vdc or higher than 250mA.

  • Page 7: Configuration And Use

    Table of distances depending on the type of cable. Main panel (A) + Panel- Cable Panel-Camera Panel-Lock Monitor-Source (B) Hallway exit button 2 x 0.75 mm 120 m = A+B 100 m 20 m 20 m RVV Parallel Cable 2 x 1 mm 120 m = A+B 100 m 20 m...

  • Page 8: Navigation Mode

    3.1.2 Navigation Mode Notification LEDs Tone and melody settings and melodies Call Parameter volume configuration Switch off/on Confirm Left Right Selection Screen Note: As the screen is not touch-sensitive, the equivalent of each button corresponds to the physical icons on the monitor (as shown in the picture). Ringtone Volume Select the ringtone level with the Left and Right buttons of the navigation button.

  • Page 9: Parameter Configuration

    Parameter configuration Selecting this allows you to enter the additional function configurations from the monitor. It is subdivided into 3 extra configurations: Monitor Configuration Additional configurations Factory Reset Additional configurations: In this section, you may customise video door station functions such as: Door release time Gate release time Opening selection...

  • Page 10: Factory Reset

    MASTER Monitor: Secondary monitors - Master Monitor: This is the main monitor in the apartment. One monitor must be programmed as the Master (and one only). If no monitor is programmed as the Master, the panel will not receive power. - Secondary monitors: Monitors other than the Master will be secondary and will be programmed with an address (1-3) in order to allow internal intercom calls.

  • Page 11: Standby Mode

    - Dipswitch 1: • In ON state: Activates video impedance matching. Activation of this adaptation is required when the monitor is the last one on the bus. • In OFF state: Used for intermediate bus monitors. - Dipswitch 2: It does not fulfil any function. Power adaptor connector: This is where the power supply is connected.

  • Page 12: Call Mode

    3.1.5 Call mode During a call, the buttons on the monitor indicate the following: Monitor settings: this will control settings regarding ringtone and audio volume (if picked up) and display settings such as: brightness, contrast and colour. Camera switching function: This will switch the camera according to the set configuration of the system (Position JP2).

  • Page 13: Panel Configuration

    3.2. PANEL CONFIGURATION Illumination LEDs Loudspeaker Camera Call button / Card holder Microphone DOOR 2 DOOR 1 RELAY DOOR Bus: For the connection of the communication bus. Relay connection: For connecting the door relay with an additional power supply. For example: For a Gate.
  • Page 14 -Consult the dealer or an experienced radio technician The equipment you have purchased is identified ac- cording to Directive 2012/19/EU on Waste Electrical and Electronic Equipment. For more information, visit www.fermax.com Contact: tec@fermax.com www.fermax.com/contact APPENDIX A EXAMPLE OF SUPPLIER'S DECLARATION OF CONFORMITY — COMPLIANCE INFORMATION STATEMENT INCLUDED WITH AN END PRODUCT AT THE TIME OF MARKETING OR IMPORTATION NOTE:The commission does not have a required SDoC format.
  • Page 15 FERMAX ELECTRONICA S.A.U Avenida Tres Cruces, 133 46017 Valencia, Spain...
