Summary of Contents for Clarke Strong-Arm CFT5

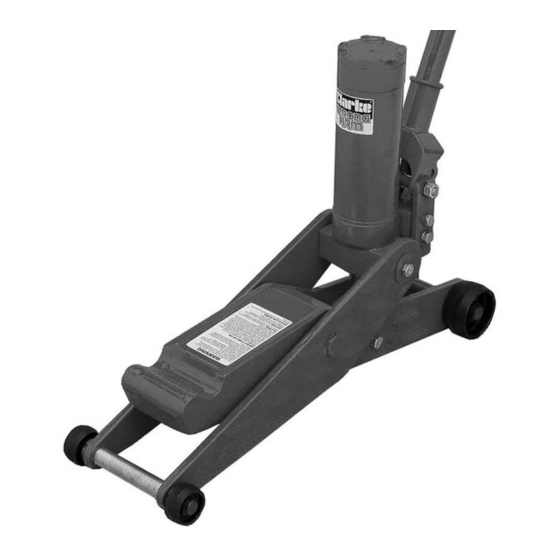

- Page 1 TRACTOR JACK MODEL NO: CFT5 PART NO: 7624005 OPERATION & MAINTENANCE INSTRUCTIONS GC0915...
- Page 2 GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase.
- Page 3 2. Do not allow personnel to operate the jack unless they have read these safety precautions. 3. Ensure that the jack is in good working order. Have any damaged parts repaired or replaced immediately. Use genuine Clarke parts only. The use of unauthorised parts may be dangerous and will invalidate the guarantee.
- Page 4 Visually inspect all components to ensure that no damage was suffered in transit. Any deficiencies should be reported to your CLARKE dealer immediately. IMPORTANT: Due to the weight of the components, we recommend that you get assistance during assembly.
- Page 5 mounting, sufficient to allow the ram to be located at ‘D’, Fig. 1. The securing bolt may then be tightened. 2. Stand the jack upright and fit the handle as follows: 3. Unscrew the bolt, on the side of the jack handle housing, sufficient for the grooved end of the handle to be inserted fully, and for the drive, in the end of the handle, to engage with the tapered square end of the valve operating connecting rod.
- Page 6 7. Keep all parts of the jack well lubricated to prevent any possibility of corrosion. 8. Store in a dry place where it cannot be attacked by the elements. PARTS LIST The following user serviceable parts are available from your Clarke dealer or Clarke International Spares department. 1. Handle 2. Handle Extension 3.
- Page 7 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
