Clarke CFJ48 Operating & Maintenance Instructions

PARTS LIST
No. Description Part No.
1 Large Runner HT48001
2 Column HT48002
3 Connecting Rod HT48003
4 Handle HT48004
5 Washer HT48005
6 Nut HT48006
7 Pin HT48007
8 Screw HT48008
9 Washer HT48009
10 Reversing Latch HT48010
11 Reversing Switch HT48011
12 Bolt HT48012
13 Nut HT48013
14 Washer HT48014
15 Base HT48015
16 Bolt HT48016
17 Bolt HT48017
18 Spring HT48018
19 Pin HT48019
20 Locking Pin HT48020
21 Spring HT48021
22 Spring HT48022
23 Washer HT48023
24 Nut HT48024
25 Small Runner HT48025
26 Spring Lock Washer HT48026
SPARE PARTS and SERVICE CONTACTS
Please contact your nearest dealer, or CLARKE International as follows:
PARTS & SERVICE TEL: 020 8988 7400
or e-mail as follows:
PARTS: Parts@clarkeinternational.com
SERVICE: Service@clarkeinternational.com
SPECIFICATIONS
Maximum Working Height ............... 1090mm (43 inches)
Minimum Height ............................... 100mm (25.5 inches)
Maximum Load ................................. 2,000kg (4400lbs) measured at a height of 1 foot
Minimum Load (for lowering) .......... 50kg (110lbs)
Net Weight ........................................ 13.6kg (30lbs)

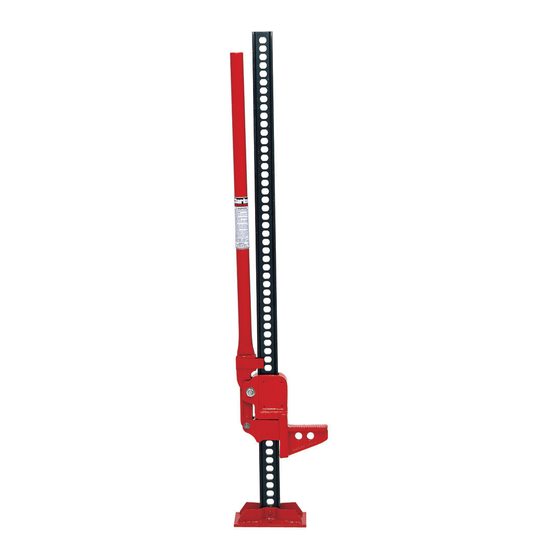

48" FARMJACK
Model No. CFJ48
Part No. 3400300
OPERATING & MAINTENANCE
INSTRUCTIONS
GUARANTEE
This CLARKE product is guaranteed against faulty
manufacture for a period of 12 months from the date
of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have
been abused in any way, or not used for the purpose
for which it was intended. Faulty goods should be
returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
.
