Summary of Contents for Clarke STRONG-ARM CFJ48B

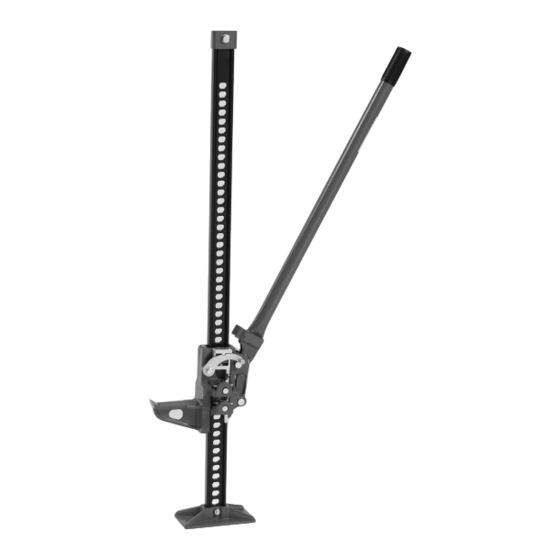

- Page 1 48” FARM JACK MODEL NO: CFJ48B PART NO: 3400305 USER INSTRUCTIONS ORIGINAL INSTRUCTIONS GC01/23...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Farm Jack. Before attempting to use this product, please read these instructions carefully. In doing so you will ensure your safety and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. ALWAYS inspect the jack before use. Inspect for distortion of the column and locking pins and the security of all parts. Check all parts are in good condition and operating smoothly and that no cracks or distortion is apparent. - Page 4 16. DO NOT use additional bars/tubes in conjunction with the handle to provide extra leverage. Use hand power only. 17. NEVER carry the jack by the handle as the column may drop and cause harm to persons or property. 18. ALWAYS ensure that the lifting head climbing pin is located and locked in a hole in the steel beam before releasing the pumping handle otherwise the lifting head will automatically lower, causing the handle to move up and down rapidly presenting a risk of serious injury.
- Page 5 OPERATING INSTRUCTIONS OVERVIEW RAISING A LOAD WARNING: BEFORE LIFTING ENSURE SAFETY PRECAUTIONS ARE READ AND UNDERSTOOD. 1. Before lifting assess the correct jacking point for the load. If the load is a vehicle, consult the vehicle manufacturer's handbook for the correct lifting point. 2.
- Page 6 • The foot of the jack should be immediately below the chosen lifting point so that the lifting action is vertical. DO NOT attempt a lift with the jack at an angle. 3. Raise the lifting toe to the jacking point on the load. The lifting head can be raised manually into position.
- Page 7 2. Trip the reversing latch so that it is in the down position with the indentation on the latch disengaged from the notch on the reversing switch (see fig.2). Keeping a firm grip on the handle, commence lowering by pumping the handle steadily up and down.
-
Page 8: Maintenance
When repositioning heavy items such as machinery, consideration should be given to how the load will move once it is set in motion and sufficient precautions taken to restrain the item from moving too far or in an unpredictable way. Similar caution needs to be exercised when choosing attachment/pushing/pulling points on machinery. -
Page 9: Component Parts
COMPONENT PARTS Description Description Large runner Washer Column Base Connecting link Bolt Handle Bolt Washer Spring Locking Pin Screw Spring Washer Spring Reversing latch Washer Reversing switch Bolt Small runner Spring locking washer Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 10 DECLARATIONS OF CONFORMITY - UK Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 11 DECLARATIONS OF CONFORMITY - CE Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
