Introduction
FEATURES:
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD
Master Audio transmission
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products*
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.
#
EDID function added to products from Revision B onward.
Contact:
support@blustream.com.au
HEX11WP-TX
Quick Reference Guide

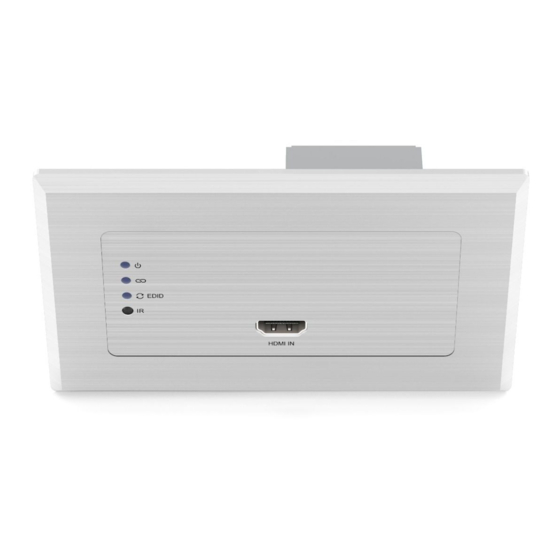

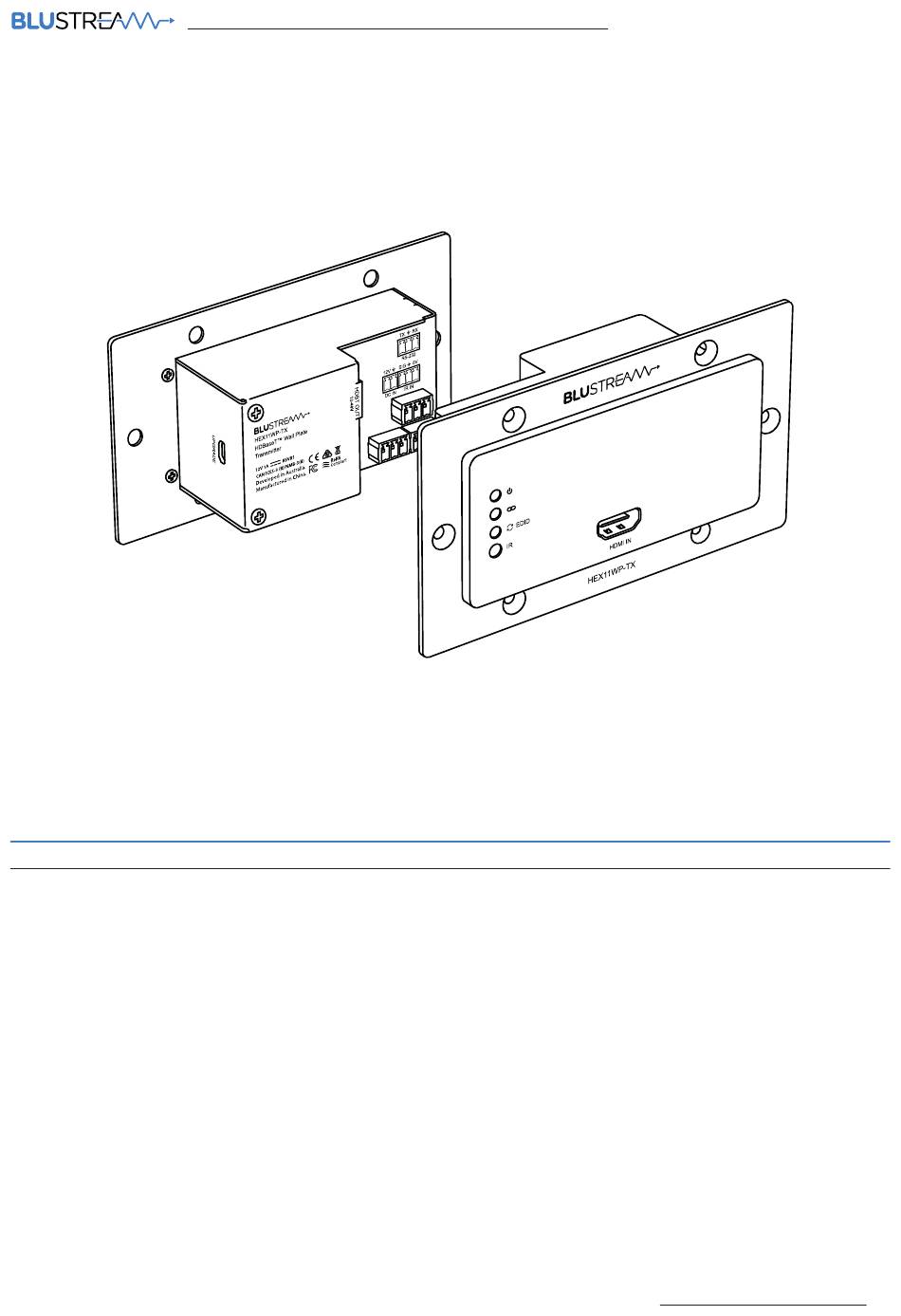

Our HEX11WP HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends
HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WP-TX has been
designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be
installed in both UK and European backboxes and can be powered locally or from
compatible Blustream HDBaseT™ products.
|
support@blustream-us.com
HEX11WP-TX
|
support@blustream.co.uk
QUICK REFERENCE GUIDE
#
01
Advertisement
Related Manuals for BluStream HEX11WP-TX
Summary of Contents for BluStream HEX11WP-TX
- Page 1 Our HEX11WP HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m at 4K 60Hz 4:2:0). The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European backboxes and can be powered locally or from compatible Blustream HDBaseT™...
- Page 2 Note: When powering the HEX11WP-TX locally and using PoC to power a compatible Blustream receiver device, power is only enabled when an active HDMI source device is connected to the HEX11WP-TX. This feature is used to trigger auto switching on the Blustream SW41HDBT HDBaseT™ Switcher.
- Page 3 HEX11WP-TX QUICK REFERENCE GUIDE Contact: support@blustream.com.au support@blustream-us.com support@blustream.co.uk...
- Page 4 Infrared Receiver The HEX11WP-TX features 2 x options for receiving of IR signals. The HEX11PW-TX has an in-built IR receiver on the front panel that will receive IR commands from line of sight IR remote controls, and a 3-pin Phoenix connection on the rear panel.
