Jeep 2018-19 jl 3.6l engine skid plate

Advertisement

Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.

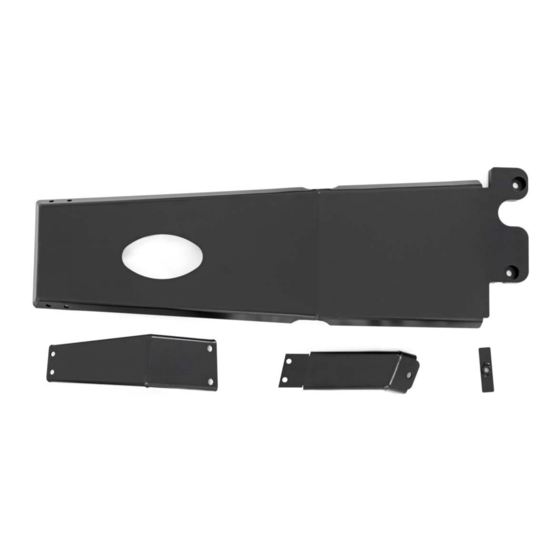

KIT CONTENTS:

Front Drivers Side Bracket x 1
Front Pass. Side Bracket x 1
Engine Skid Plate x 1

Torque Specs:

Size
Grade 5
5/16"
15 ft/lbs
3/8"
30 ft/lbs
7/16"
45 ft/lbs
1/2"
65 ft/lbs
9/16"
95 ft/lbs
5/8"
135ft/lbs
3/4"
185ft/lbs
Thank you for choosing Rough Country for all your vehicle needs.
18mm Wrench and Socket
19mm Wrench and Socket
9/16 Wrench and Socket
Grade 8
Size
20ft/lbs
6MM
35ft/lbs
8MM
60ft/lbs
10MM
90ft/lbs
12MM
130ft/lbs
14MM
175ft/lbs
16MM
280ft/lbs
18MM
JEEP 2018-19 JL 3.6L Engine Skid Plate

TOOLS NEEDED:

3/4 Wrench and Socket
Class 8.8
Class 10.9
5ft/lbs
18ft/lbs
32ft/lbs
55ft/lbs
85ft/lbs
130ft/lbs
170ft/lbs
*10609BAG*
10609BAG

HARDWARE INCLUDED:

3/8-16 x 1 Hex Head Bolt x 4
3/8 Flat Washer x 8
3/8 Nylock Nut x 4
1/2-13 x 1 1/4 Hex Head Bolt x 3
1/2-13 Nylock Nut x 3
1/2 Flat washer x 8
12mm-1.5 x 40 Hex Head Bolt x 2
12mm Flag Nut x 1
9ft/lbs
23ft/lbs
45ft/lbs
75ft/lbs
120ft/lbs
165ft/lbs
240ft/lbs
921106090

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 921106090 and is the answer not in the manual?

Questions and answers

Summary of Contents for rough country 921106090

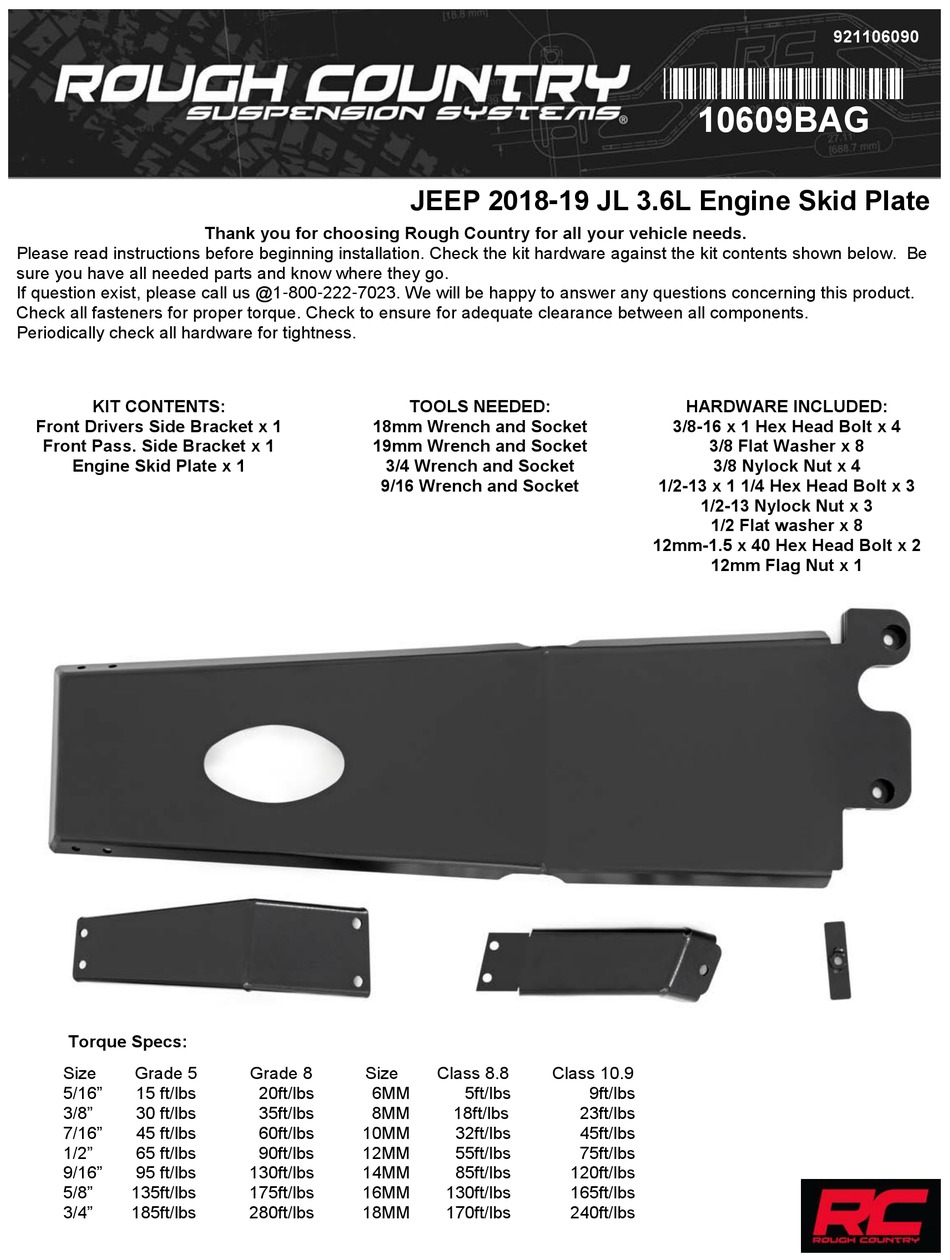

  • Page 1 10609BAG JEEP 2018-19 JL 3.6L Engine Skid Plate Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
  • Page 2 INSTALLATION INSTRUCTONS 1. Jack up the front of the vehicle. Place jack stand under the frame and lower the vehicle down. 2. Remove the wheels and tires from the vehicle 3. Locate the 3 bolts in the front cross brace under the oil pan. See Photo 1. 4.
  • Page 3 See Photo 7. 10. If you are installing the Rough Country transfer case skid plate kit skip to step 13. 11. View photo 8 for the location of the mount on the passengers side of the cross brace that needs to be trimmed. See Photo 8.
  • Page 4 17. Tighten the front upper bracket 1/2” bolts using a 3/4 socket and wrench. 18. Tighten the front 3/8” bracket to skid plate bolts using a 9/16 wrench and socket. 19. If installing the Rough Country transferase skid plate follow the instructions with that skid plate if not skip to the next step.
