Thank you for choosing Rough Country for all your lighting needs.
Please read instructions before beginning installation. Check the kit hardware against the kit contents
shown below. Be sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning the design,
function, and correct use of our products.
Tools Needed:
7mm Socket
10mm Socket/Wrench
15mm Socket/Wrench
T15 Torx
Reciprocating Saw
By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all
applicable Federal, State, and Local laws and regulations regarding the purchase, ownership, and
use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws
governing the sales of any items listed, illustrated or sold. The buyer expressly agrees to indemnify
and hold harmless Rough Country, LLC for all claims resulting directly or indirectly from the purchase,
ownership, or use of the items.
2015-UP Colorado/Canyon 30" LED Bumper Mount
Kit Contents

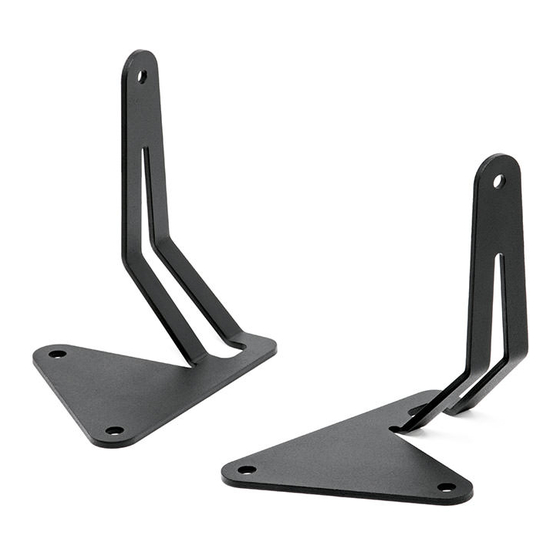

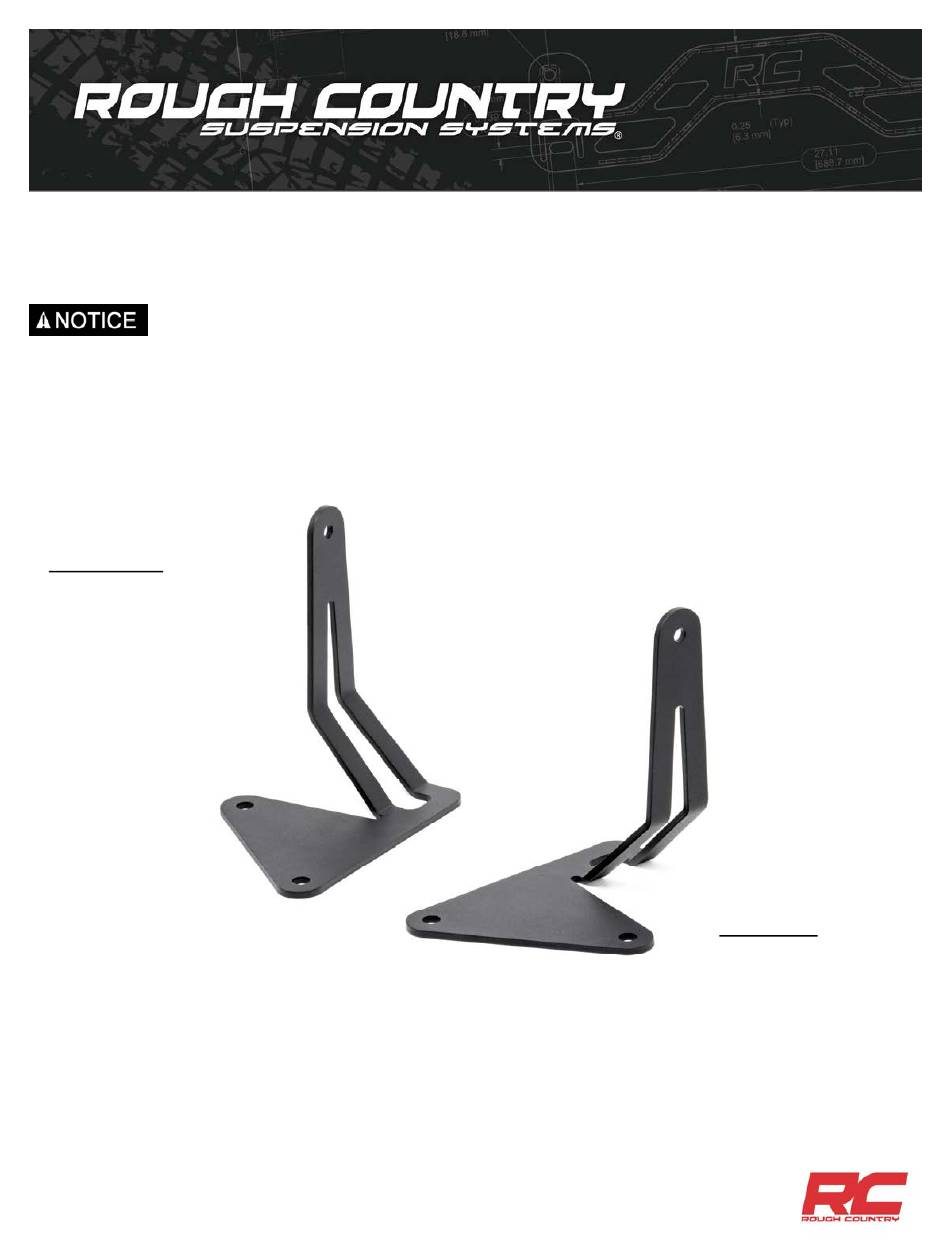

(1) Driver Light Bracket
(2) Passenger Light Bracket
92705360
Advertisement
Table of Contents
Related Manuals for rough country 92705360
Summary of Contents for rough country 92705360
- Page 1 (1) Driver Light Bracket (2) Passenger Light Bracket By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable Federal, State, and Local laws and regulations regarding the purchase, ownership, and use of the item.
- Page 2 1. Park the vehicle on a smooth level surface. 2. Remove the 6 bolts on the upper fascia with a T15 torx bit. See Photo 1. 3. Using a 7mm socket, remove the inner corner supports. See Photo 2. Photo 1 Photo 2 4.
- Page 3 8. Remove the 2 front fascia bolts with a 10mm socket. See Photo 7. 9. Using a 10mm socket remove the 2 lower fascia bolts from the frame . See Photo 8. 10. Now carefully remove the front bumper and fascia. Photo 7 Photo 8 11.
- Page 4 14. Place light bracket inside of air duct. See Photos 13-15. Photo 14 Photo 13 15. Align mounting holes with crash bar mounting holes. See Photo 16. Photo 15 Photo 16 16. Using factory hardware, install crash bar in factory location and tighten with a 15mm socket. See Photo 17. 17.
- Page 5 18. Pull the inner fender back and reinstall the 3 factory bumper bolts using a 7mm socket. See Photo 19. 19. Reinstall the front 2 fascia factory bolts with a 10mm socket. See Photo 20. Photo 19 Photo 20 20. Use factory hardware attach the fascia bracket to the frame support with a 10mm socket as shown in Photo 21. 21.
- Page 6 25. Install all of the upper fascia screws and tighten with a T15 torx bit. See Photo 25. 26. Using hardware supplied with Rough Country 30” LED light, install spacer between light and bracket and insert sup- plied bolt through bracket and spacer and into light. See Photo 26.
