Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be
sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning this product.
Check all fasteners for proper torque. Check to ensure for adequate clearance between all components.
Periodically check all hardware for tightness.
Fits Crew Cab Only.
KIT CONTENTS:
Driver Side Step x 1
Pass Side Step x 1
Driver Side Front Bracket x 1
Pass Side Front Bracket x 1
Driver Side Mid & Rear Bracket x 2
Pass Side Mid & Rear Bracket x 2
Torque Specs:
Size
Grade 5
5/16"
15 ft/lbs
3/8"
30 ft/lbs
7/16"
45 ft/lbs
1/2"
65 ft/lbs
9/16"
95 ft/lbs
5/8"
135ft/lbs
3/4"
185ft/lbs

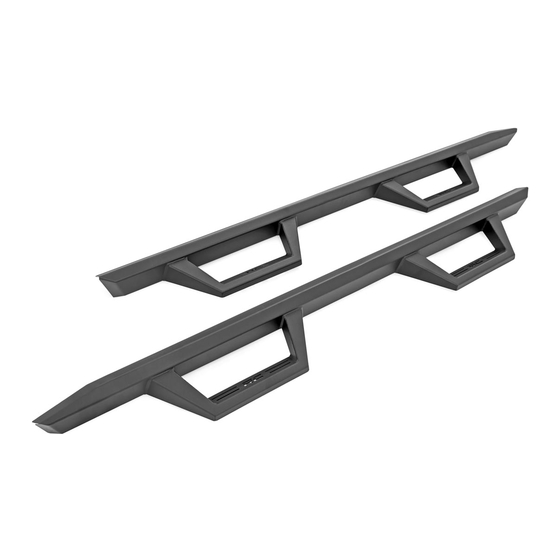

FORD 2019 Ranger Crew Cab Fabbed Steps
Thank you for choosing Rough Country for all your vehicle needs.
13mm Wrench and Socket
17mm Wrench and Socket
Grade 8
Size
20ft/lbs
6MM
35ft/lbs
8MM
60ft/lbs
10MM
90ft/lbs
12MM
130ft/lbs
14MM
175ft/lbs
16MM
280ft/lbs
18MM
TOOLS NEEDED:
Class 8.8
Class 10.9
5ft/lbs
9ft/lbs
18ft/lbs
23ft/lbs
32ft/lbs
45ft/lbs
55ft/lbs
75ft/lbs
85ft/lbs
120ft/lbs
130ft/lbs
165ft/lbs
170ft/lbs
240ft/lbs
*51009BAG*
51009BAG
HARDWARE INCLUDED:
8mm Nut Plate x 6
8-1.25 x 25mm Hex Bolts x 12
8mm Lock Washer x 12
8mm Flat Washer x 12
10-1.5 x 25mm Hex Head Bolts x 12
10mm Flat Washers
10mm Lock Washers
921510090
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for rough country 921510090
Summary of Contents for rough country 921510090

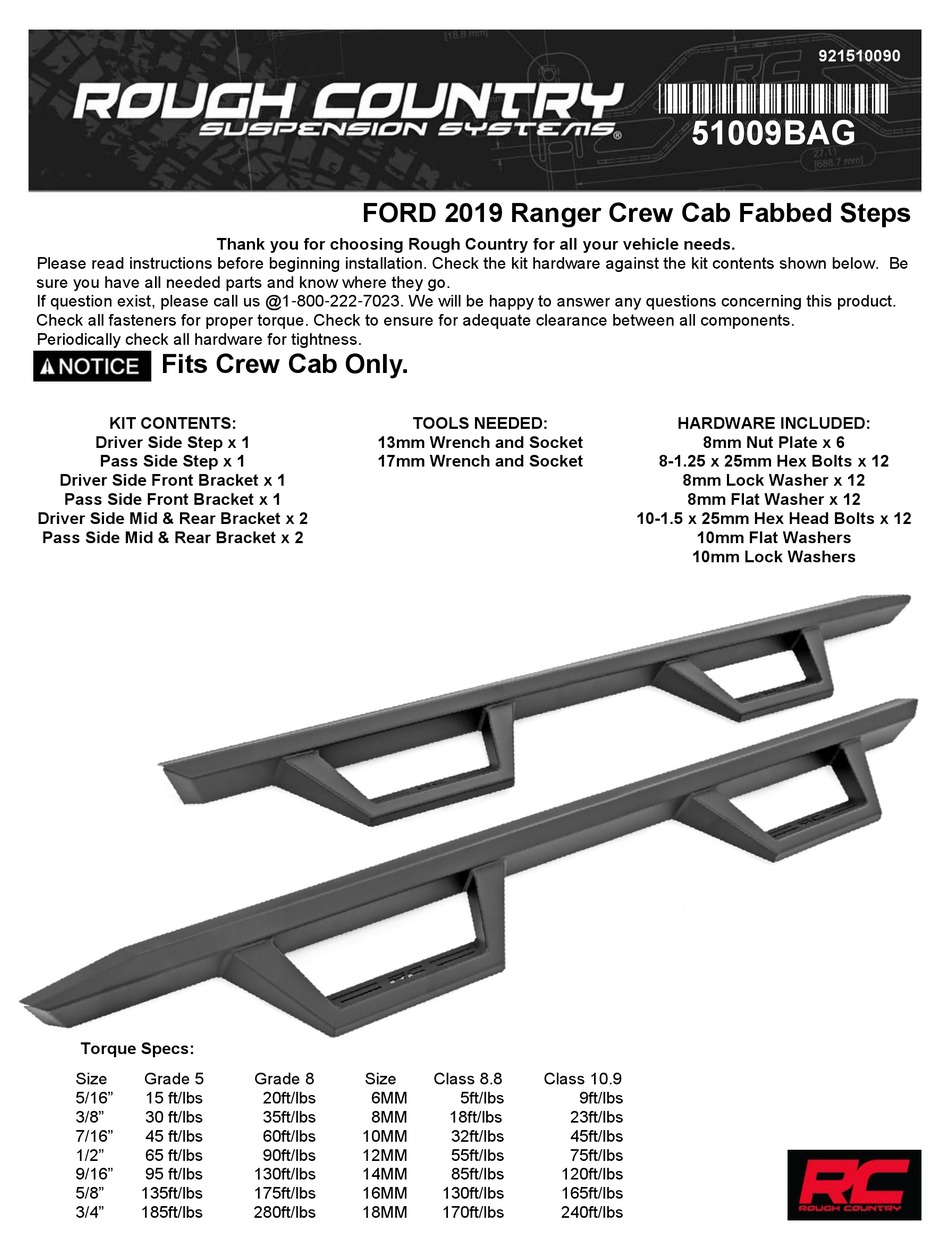

- Page 1 51009BAG FORD 2019 Ranger Crew Cab Fabbed Steps Thank you for choosing Rough Country for all your vehicle needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
- Page 2 1. Removal of the factory steps or the plugs covering the nutsert at the step mounting location are required before installation of the Rough Country Steps. Retain the factory hardware to install the brackets to the body if desired. 2. Remove the plugs in the nutserts at the step mounting location. See Photo 1.
- Page 3 8. Install the steps onto the vehicle using 6 of the supplied 10mm -1.5 x 25mm bolts (6) 10mm lock washers (6) 10mm flat washers. See Photo 7. 9. Tighten the mounting bracket hardware using a 17mm socket. See Photo 8. Photo 7 Photo 8 Install the step.
- Page 4 By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable , State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illustrated or sold.
