Please read instructions before beginning installation. Check the kit hardware against the kit contents
shown below. Be sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning the design,
function, and correct use of our products.
This kit will ONLY fit models with the grille shown.
Tools Needed:
5/32" Allen
7/16" Socket
Clip Removal Tool
Flat Screwdriver
10mm Socket
8mm Socket
Paint Pen
Reciprocating Saw
Ratchet
Dodge 2019 Ram 1500 Dual 6" Slimline Grille Mount
Thank you for choosing Rough Country for all your lighting needs.

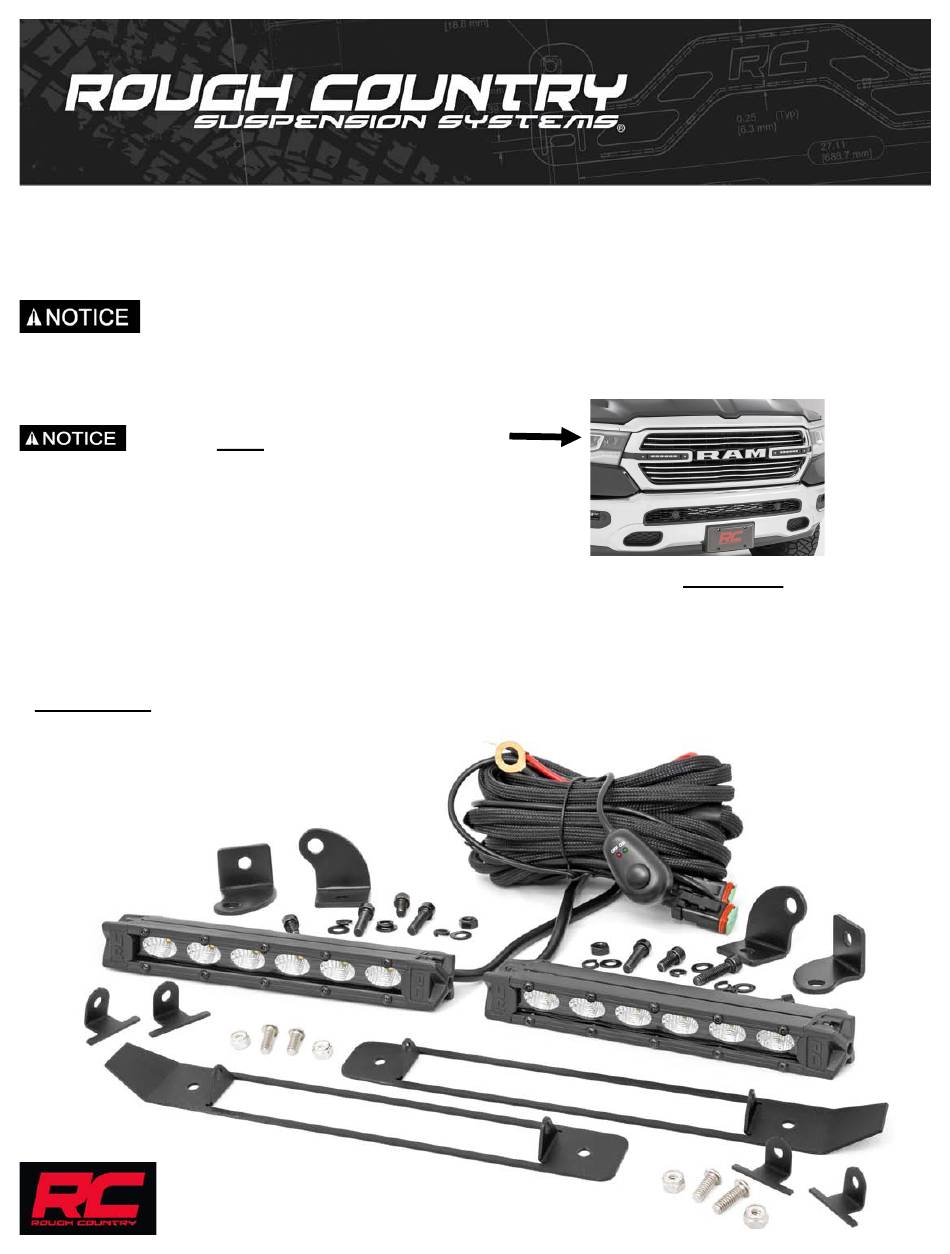

Kit Contents
(2) Slimline LED Grille Mount Trim Rings
(4) Slimline LED Grille Mount Brackets
(1) Instructions

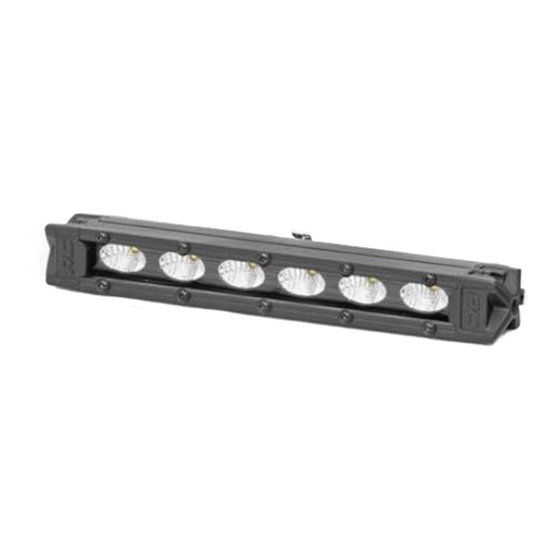

(2) 6" Slimline LED Lights
(1) 70782BAG
(4) 1/4" x 5/8" Button Head Allen Bolts
(4) 1/4" Lock Nuts
921707820
Advertisement
Related Manuals for rough country 921707820
Summary of Contents for rough country 921707820
- Page 1 921707820 Dodge 2019 Ram 1500 Dual 6” Slimline Grille Mount Thank you for choosing Rough Country for all your lighting needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
- Page 2 1. Park the vehicle on a smooth level surface. 2. Locate the 12 push pins that attach the radiator cover to the radiator support. See Photo 1. 3. Using a clip removal tool or flat screwdriver, remove the 12 push pins. Retain hardware for reuse. See Photo 2. Photo 1 Photo 2 Remove the radiator cover.
- Page 3 9. Locate the 4 bolts that attach the top grille brackets to the radiator support. See Photo 7. 10. Using a 10mm socket, remove the 4 bolts from the upper grille brackets. Retain hardware. See Photo 8. Photo 7 Photo 8 Locate the 4 upper grille bolts.
- Page 4 16. Lay the grille face down. 17. Using an 8mm socket, remove the 7 bolts that attach the inner grille to the grille shell. Retain hardware. See Photo 18. Using a flat screwdriver, unclip the grille frame from the grille shell. See Photo 14. Photo 13 Photo 14 Remove grille frame hardware.
- Page 5 23. Using a reciprocating saw, trim the inner grille where marked in step 22. See Photo 19. 24. Remove the cut portion and sand the cut edges smooth. See Photo 20. Photo 19 Photo 20 Sand cut edges smooth. Trim inner grile. 25.
- Page 6 31. Repeat steps 27-30 for the 2nd light. 32. Install the grille frame using the factory hardware. Tighten using a 10mm socket. 33. Wire lights according to instructions included with the lights. 34. Plug in the lights while installing the grille assembly using the factory hardware. Tighten using a 10mm socket. See Photos 26 &...
- Page 7 38. Attach the upper grille trim using the factory hardware. Tighten using a 10mm socket. See Photo 31. 39. Install the factory push pins into the upper grille trim. See Photo 32. Photo 31 Photo 32 Attach upper grille trim. Attach upper grille trim.
- Page 8 By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable , State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illustrat- ed or sold.
