rough country 70101 Instructions Manual

Gm 2014-15 chevy 1500 mesh grille

Advertisement

Please read instructions before beginning installation. Check the kit hardware against the kit contents
shown below. Be sure you have all needed parts and know where they go.
If question exist, please call us @1-800-222-7023. We will be happy to answer any questions concerning the design,
function, and correct use of our products.
Only fits 2014-15 Chevrolet 1500 models.
Will not fit Z71 model grilles.

Tools Needed:

7mm Socket/Wrench
10mm Socket/Wrench
Flat Screwdriver
Reciprocating Saw
11/64" Drill
Drill Motor
7/16" Socket/Wrench
11/32" Socket/Wrench
3/32" Allen
5/32" Allen Wrench
Ratchet
Thank you for choosing Rough Country for all your lighting needs.

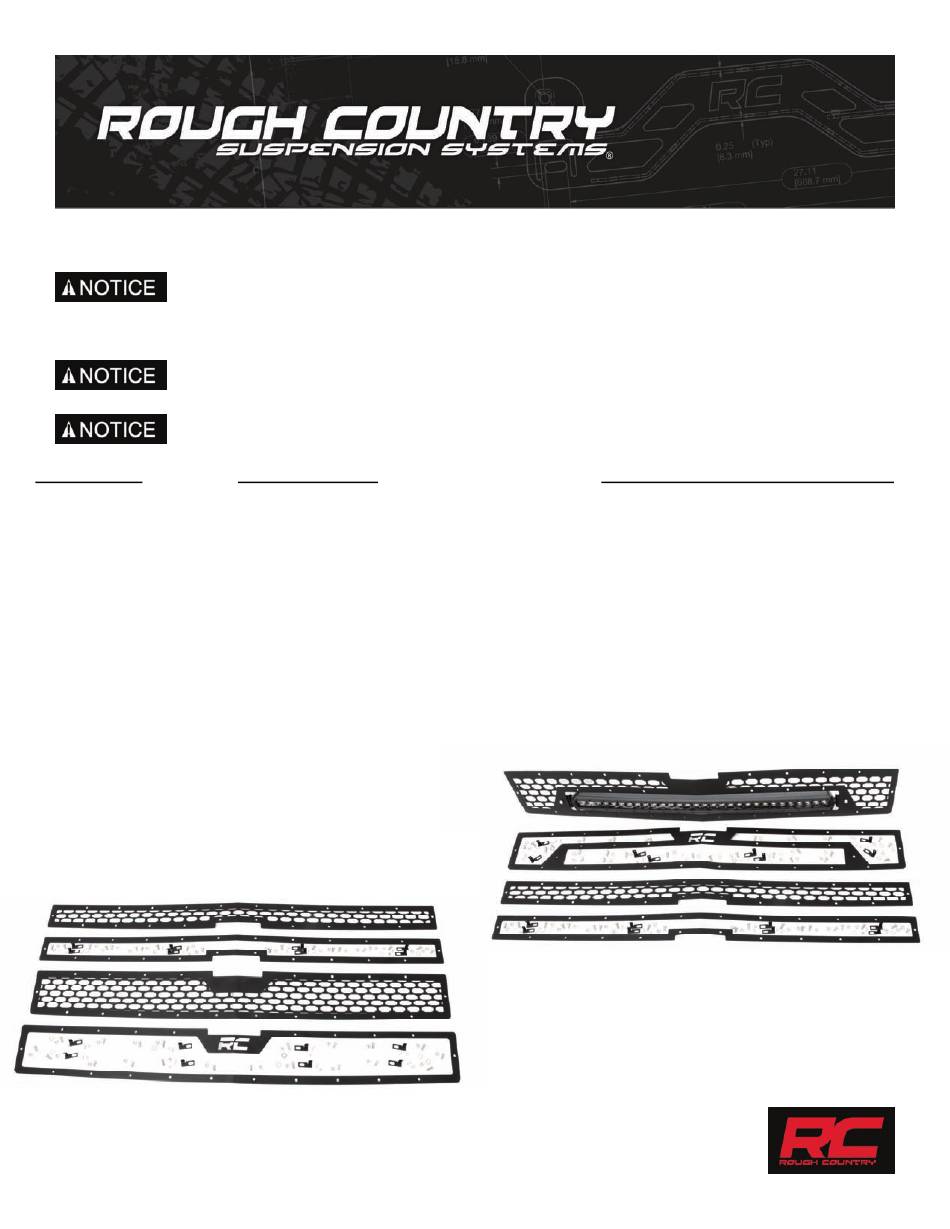

Kit Contents 70101

(2) Grille Trim Ring
(2) Mesh Grille
(1) Instructions
(1) 70101BAG1
(8) LH Mounting Brackets
(8) RH Mounting Brackets
(1) 70101BAG
(16) 1/4" x 5/8" Button Head Allen Bolts
(26) 1/4" x 1/2" Button Head Allen Bolts
(42) 1/4" Nylock Nuts
(16) #8 x 1/2" Button Head Allen Bolts
(16) #8 Lock Nuts
70101
GM 2014-15 Chevy 1500 Mesh Grille
Kit Contents 70103 w/ Black Series LED
(2) Grille Trim Ring
(2) Mesh Grille
(1) Instructions
(1) 30" Single Row Curved LED
(2) Light Mounting Brackets
(1) 70101BAG1
(1) 70102BAG
921701010A
(8) LH Mounting Brackets
(8) RH Mounting Brackets
(18) 1/4" x 5/8" Button Head Allen Bolts
(32) 1/4" x 1/2" Button Head Allen Bolts
(50) 1/4" Nylock Nuts
(16) #8 x 1/2" Button Head Allen Bolts
(16) #8 Lock Nuts
70103

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 70101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for rough country 70101

  • Page 1 921701010A GM 2014-15 Chevy 1500 Mesh Grille Thank you for choosing Rough Country for all your lighting needs. Please read instructions before beginning installation. Check the kit hardware against the kit contents shown below. Be sure you have all needed parts and know where they go.
  • Page 2 1. Park the vehicle on a smooth level surface. 2. Open the hood and using a flat screwdriver, remove the push pins and radiator cover and save for reuse. See Photo 1. 3. Using a 7mm, remove the bolts from inside the fender well, holding the upper fascia. Retain for reuse. See Photos 2 &...
  • Page 3 6. Gently pull the fascia from the front of the vehicle. See Photo 6. 7. Using a 10mm socket, remove the grille mounting bolts and save for reuse. See Photo 7. Photo 6 Photo 7 Remove bumper fascia. Remove grille mounting bolts. 8.
  • Page 4 12. Using a reciprocating saw, cut the inner grille mesh along the horizontal lines of the grille. See Photo 12. 13. Using a reciprocating saw, cut the inner grille mesh along the vertical lines of the grille. See Photo 13. 14.
  • Page 5 19. Tighten the 1/4” bolts using a 5/32” Allen and a 7/16” wrench. Do not rotate the head of the bolt when tightening. See Photo 18. 20. If installing grille with no light, skip to step 23. 21. If installing the mesh grille with the 30” LED, install the light mounting brackets using the supplied 1/4” x 5/8” bolts and nuts.
  • Page 6 27. Using the supplied #8 x 1/2” bolts and nuts, attach the mounts to the grille and tighten using a 3/32” Allen and a 11/32” wrench. See Photo 24. 28. Tighten the 1/4” bolts using a 5/32” Allen and a 7/16” wrench. Do not rotate the head of the bolt when tightening. See Photo 25.
  • Page 7 By purchasing any item sold by Rough Country, LLC, the buyer expressly warrants that he/she is in compliance with all applicable , State, and Local laws and regulations regarding the purchase, ownership, and use of the item. It shall be the buyers responsibility to comply with all Federal, State and Local laws governing the sales of any items listed, illus- trated or sold.

This manual is also suitable for:

70103
