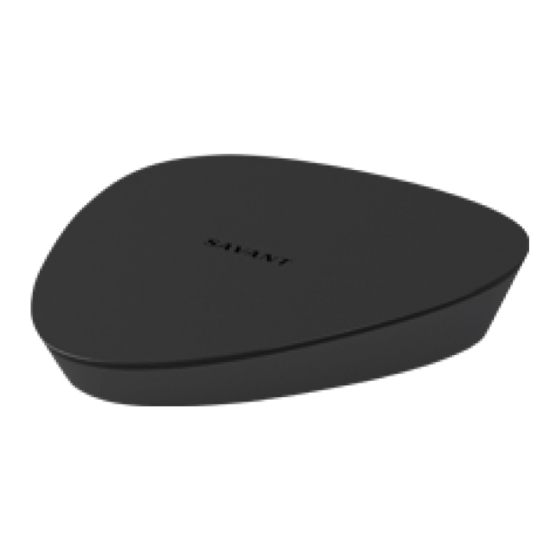

Savant® Smart Host with Control
Quick Reference Guide
Box Contents
(1) Savant® Smart Host with Control (SHC-2000-00)
(1) 5V DC 3A Power Supply
with 4 Quick Change AC Adapters (025-XXXX-xx)
(2) M3x6 mm Flathead Philips Screw Black (039-00101-xx)
(1) Wall Mount Bracket (074-0585-xx)
(1) Host Mount Bracket (074-0584-xx)
(2) 6-pin Screw Down Plug-in Connector Black (028-0664-xx)
(2) 3-pin Screw Down Plug-in Connector Black (028-0665-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Environmental
Temperature
32° to 104° F (0° to 40° C)
10% to 90% Relative Humidity (non-
Humidity
condensing)
Cooling
10 CFM
Maximum BTU
51.15 BTU/hr
Dimensions and Weight
Dimensions and Weight
Height
1.58 in (4 cm)
Width
7.86 in (19.9 cm)
Depth
7.65 in (19.4 cm)
Net: 1.3 lb (0.58 kg)
Weight
Shipping: 2.1 lb (0.95 kg)
Rack Space
1U
Power
Power
Input Power
5V DC 3A
Maximum Power
15 watts
Standards
Standards
Wi-Fi® (802.11 b/g/n dual band 2.4 GHz and 5.0
Wireless
GHz)
Compliance
Compliance
Safety and
FCC Part 15 | CE Mark | C-Tick | UL |
Emissions
ICES-003 | Wi-Fi Alliance
RoHS
Compliant
Minimum Supported Release
Minimum Supported Release
Savant OS
da Vinci 7.2
Chassis Installation
The Smart Host can be installed on a solid, flat, level surface such as a
table, cabinet or shelf, or wall mounted using the included bracket.
The location should be dry, well ventilated, and out of direct sunlight.
Rack Installation
The optional RCK-3000-xx provides a ventilated shelf for mounting up
to 2 Smart Hosts.
Wall Bracket Installation
A wall bracket is included that can be used to mount the Smart Host
to a wall or back of a cabinet. This bracket consists of two pieces, one
for the host and one for the wall.
1.
Attach the host bracket to the rear of the host using the included
M3x6 mm Flathead Philips Screws.
2.
Attach the wall bracket to the wall. Screws to attach are not
included.
3.
Position the host over the wall bracket and gently slide into place.
See
Wall Bracket Diagram
on pg 2.
SHC-2000-00 | 009-1326-00 | 150327
SHC-2000-00 | 009-1326-00 | 150327
Copyright © 2015 Savant Systems, LLC

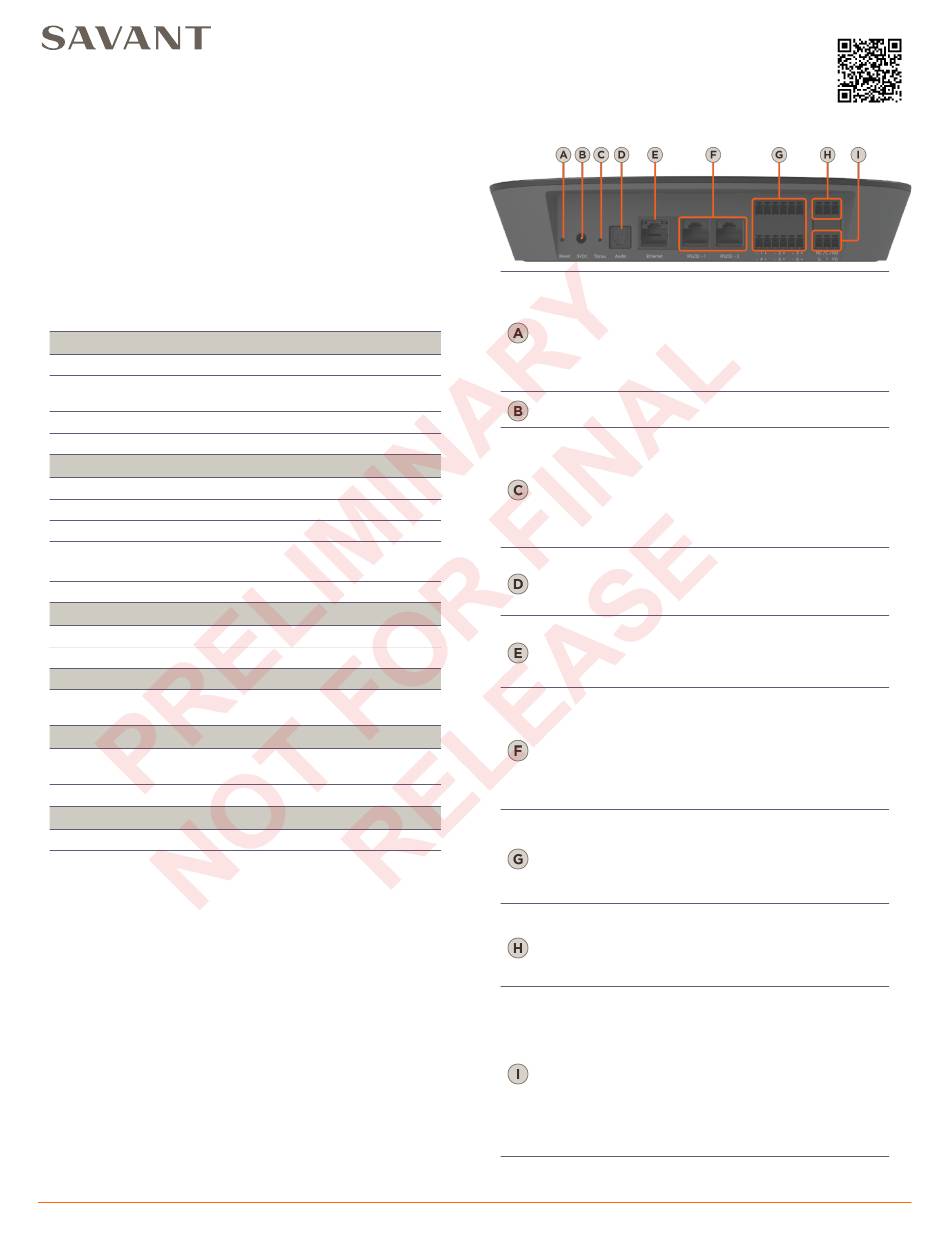

Rear Panel
Press and hold for 5 seconds while powered
On to clear Wi-Fi or wired Ethernet settings.
Status LED will blink rapidly when reset is
complete.
Reset (hole)
Note: This will reset the network settings back
5V DC 3A - Connect to included power
Power Input
supply.
Off: Disconnected from power supply.
Amber: Controller is booting/rebooting and is
disconnected from the network.
Amber Blinking: Smart Host is not connected
Status LED
to a wired Ethernet network and has not
joined a Wi-Fi network.
Green: Connected to wired Ethernet or Wi-Fi
Network.
TOSLink (Optical) digital audio output.
Digital Audio
Connect to digital optical audio input on
Output
switcher for using the Audio Interrupt Service
(AIS).
8-pin RJ-45 female.
10/100/1000 Base-T auto-negotiating port.
Ethernet
Connection to this port will disable Wi-Fi
settings.
8-pin RJ-45 female.
Used to transmit and receive serial binary
data to and from serial controllable devices.
RS-232
Ports 1-2 RS-232 - CTS/RTS handshaking.
CTS/RTS Handshaking availability based on
component profile.
See
6-pin Screw Down Plug-in Connector.
Used to send IR signals to control devices
with an IR input or IR receiver via an IR flasher
IR
(5V tolerant only). See
important precautions regarding IR
functionality before making any connections.
3-pin Screw Down Plug-in Connector.
See
Relay
Normally Open (NO) Normally Closed (NC)
to control devices requiring basic on/off
operation. DC Voltage Max: 30V DC 1A.
3-pin Screw Down Plug-in Connector.
See
GPIO Input: When configured as an input,
the processor will look for a low (<0.8V DC)
GPIO
or a high (>2.4V DC ) state.
Minimum 0V DC / Maximum 12V DC
GPIO Output: When configured as an output,
the port provides a binary output of 0-12V
DC 150mA max.
1
of 2
to factory defaults. Any static IP
Addresses or Wi-Fi settings will be lost.
RS-232 Wiring
for pinouts.
IR Wiring
for
Relay Wiring
for pinouts.
GPIO Wiring
for pinouts.
45 Perseverance Way, Hyannis, MA 02601
savant.com
| 508.683.2500
For Product Info
