Savant Smart Host Quick Reference Manual

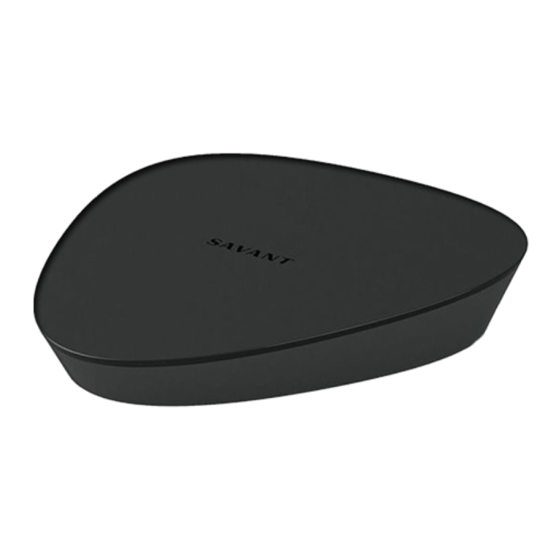

Savant® Smart Host with Control
Quick Reference Guide
Box Contents
(1) Savant® Smart Host with Control (SHC-2000-05)
(1) 5V DC 3A Power Supply
with Quick Change AC Adapters (025-0153-xx)
(2) M3x6 mm Flathead Phillips Screw Black (039-0001-xx)
Wall Bracket:
(1) Wall Mount Frame (074-0585-xx)
(1) Host Mount (074-0584-xx)
(2) 6-pin Screw Down Plug-in Connector Black (028-0664-xx)
(2) 3-pin Screw Down Plug-in Connector Black (028-0665-xx)
(1) Product and Regulatory Insert (009-1715-00)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 10 CFM
Maximum BTU 51.5 BTU/hr
Dimensions and Weights
Height 1.58 in (4.0 cm)
Width 7.86 in (19.9 cm)
Depth 7.65 in (19.4 cm)
Net: 1.3 lb (.58 kg)
Weight
Shipping 2.1 lb (.95 kg)
Rack Space 1U
Power
Input Power 5V DC 3A
Maximum Power 15 watts
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 8.6
Network Configuration
To ensure the IP Address will not change due to a power outage, a
static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
Refreshing the IP Connection
After connecting to a new network, changing routers, or if the IP
Address range in the router was changed, the IP connection should be
refreshed. To refresh the IP connection, do one of the following:
– Hot Plug the Ethernet (LAN) Connection
– Cycle power
SHC-2000-05 | 009-1616-02 | 181018
Copyright 2018 Savant Systems, LLC
CE C-Tick ICES-003

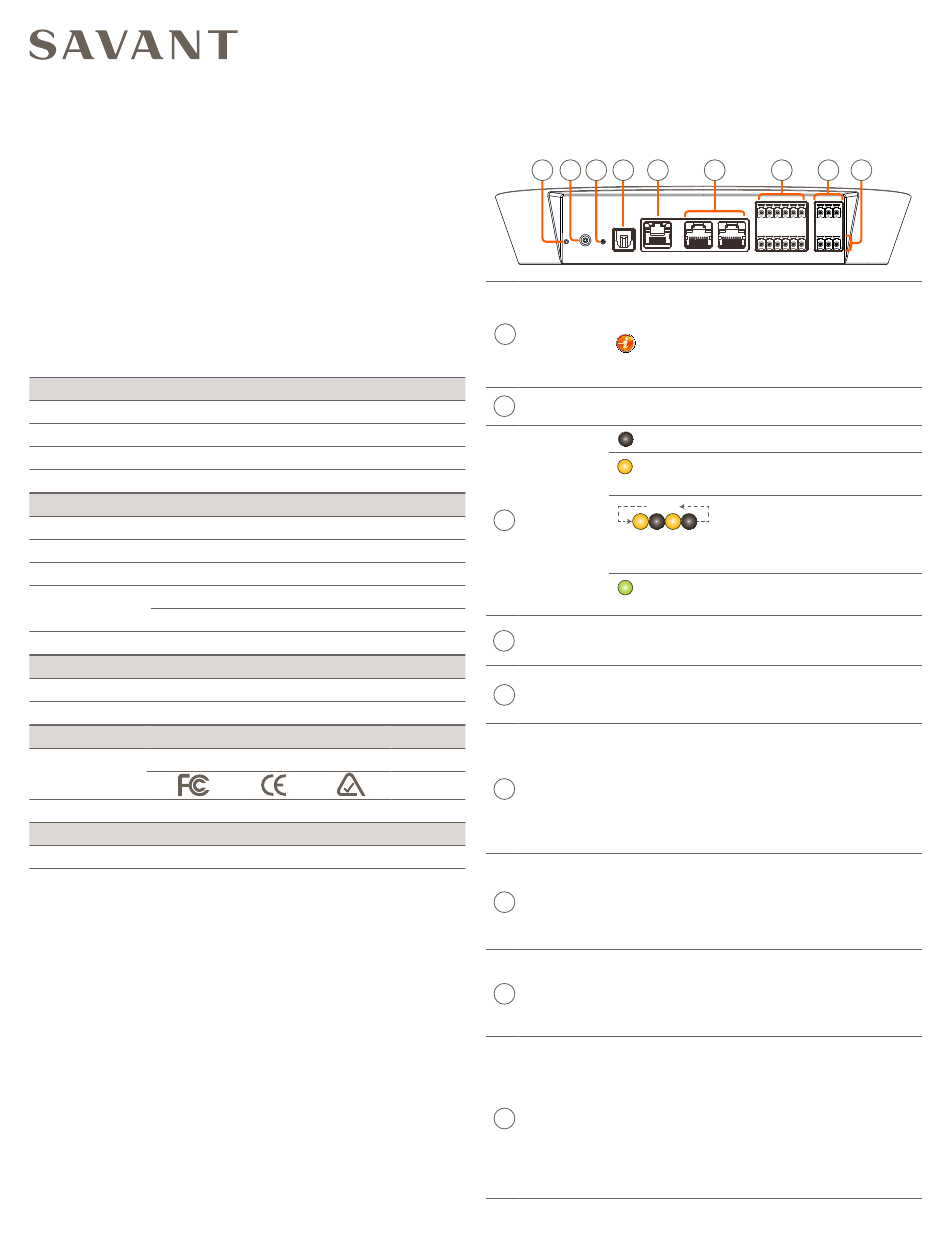

Rear Panel
A B C D
Audio
Reset 5VDC Status
To clear the Ethernet settings, press and hold
the reset button for five seconds until the LED
blinks red rapidly; then release.
A
Reset (hole)
B
Power Input 5V DC 3A - Connect to included power supply.
disconnected from the network.
C
Status LED
provisioning mode and ready to be added to a
network. Host is not assigned an IP Address.
is assigned an IP Address.
TOSLink (Optical) digital audio output. Connect
Digital Au-
D
to digital optical audio input on switcher for
dio Output
using the Audio Interrupt Service (AIS).
8-pin RJ-45 female.
E
Ethernet
10/100/1000 Base-T auto negotiating port. Con-
necting to this port will disable Wi-Fi settings.
8-pin RJ-45 female.
Used to transmit and receive serial binary data
to and from serial controllable devices.
F
RS-232
Ports 1-2 RS-232 - CTS/RTS handshaking. CTS
RTS handshaking availability is based on the
component profile.
See
6-pin Screw Down Plug-in Connector. Used to
send IR signals to control devices with an IR
input or IR receiver via an IR flasher (5V toler-
G
IR
ant only). See
precautions regarding IR functionality before
making connections.
3-pin Screw Down Plug-in Connector. See
Wiring
H
Relay
Normally Open (NO) / Normally Closed (NC) to
control devices requiring basic on/off operation.
DC Voltage Max: 30V DC 1A
3-pin Screw Down Plug-in Connector. See
Wiring
GPIO Input - When configured as an input, the
processor will look for a low (<0.8V DC) or a
high (>2.4V DC) state.
I
GPIO
Minimum 0V DC / Maximum 12V DC.
GPIO Output - When configured as an output,
the port provides a binary output of 0-12V DC
150mA max.
1 of 2
E F G
- 1 + - 2 + - 3 +
Ethernet RS232-1 RS232-2
- 4 + - 5 - 6
+ +
HELPFUL! This clears all IP addresses and
reverts the network settings back to
their factory defaults.
Off - Disconnected from power supply.
Amber - Host is booting/rebooting and is
Repeat
Amber Flashing - Host is in
1s 1s 1s 1s
Green - Connected to the local network and
RS-232 Wiring section for pin-outs.
IR Wiring section for important
section for pin-outs.
section for pin-outs.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
H I
NC C / / NO
G 1 PD
Relay
GPIO
| 508.683.2500
