Chapter 5 – Setting Up Hardware

If your device has a SIM slot, you'll need a micro (3FF) SIM card from your network provider.

To install the SIM card:

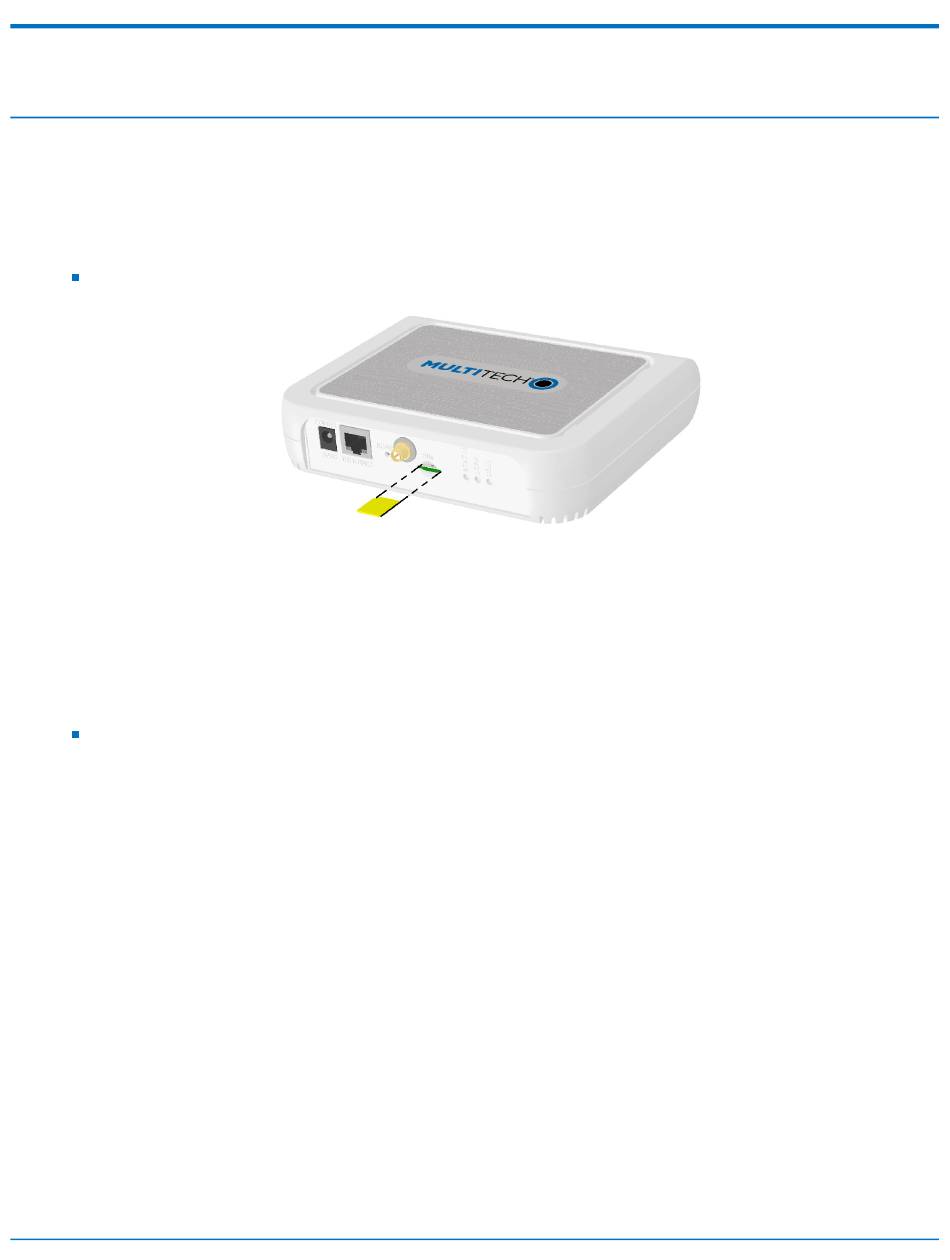

With the contact side facing down, align the notched edge as shown on the following image and slide the

SIM card completely into the SIM holder.

To remove the SIM card, push the SIM card in. The device ejects the SIM card.

To connect the antenna:

Finger-tighten the antenna to the SMA antenna connector on your device.

To cable the device:

Note:

If using PoE to power your device, refer to

Step 2.

Connect the Ethernet cable to the Ethernet port on the device.

Connect the power supply to the MTCAP's power jack and plug it into an electrical outlet.

When the operating system is fully loaded, the STATUS LED blinks.

Power over Ethernet (PoE)

Conduit

AP MTCAP2-LSP3-915x-042-POE and MTCAP2-915x-042-POE User Guide

for additional information and skip
