WeatherTRAK ET Pro2 SWM to WeatherTRAK ET Pro3
Upgrade Installation Instructions
Step 8 - Reconnect the Valve Wires and Rain Sensor
Reconnect the valve wires to their appropriate outputs.
Reconnect the rain sensor if applicable.

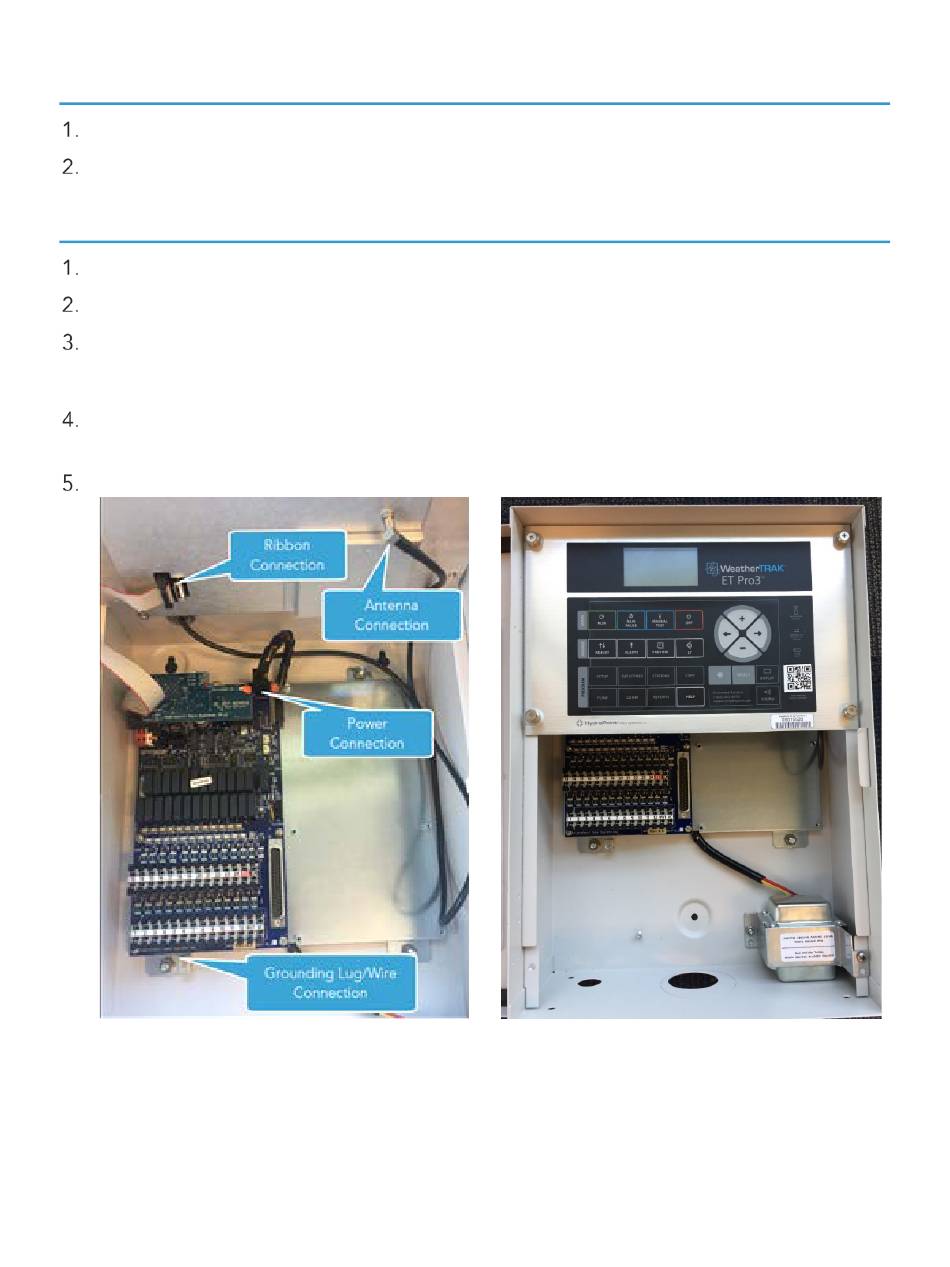

Step 9 - Install the WeatherTRAK Pro3 Command Module
Connect the ribbon cable from the back of the command module to the mini-chassis.
Connect the antenna cable to the back of the command module.
Connect the power cord to the mini-chassis.
Note: Make sure the ribbon cable and the antenna are undamaged and properly connected.
Place the Pro3 command module over the 4 pre-drilled screw holes at the top of the
cabinet.
Hand tighten the four corner screws. Be careful not to overtighten
ET Pro 3 Mini-Chassis
©2018 HydroPoint Data Systems, Inc. All Rights Reserved
ET Pro 3 Command Module
7
800.362.8774 • hydropoint.com
