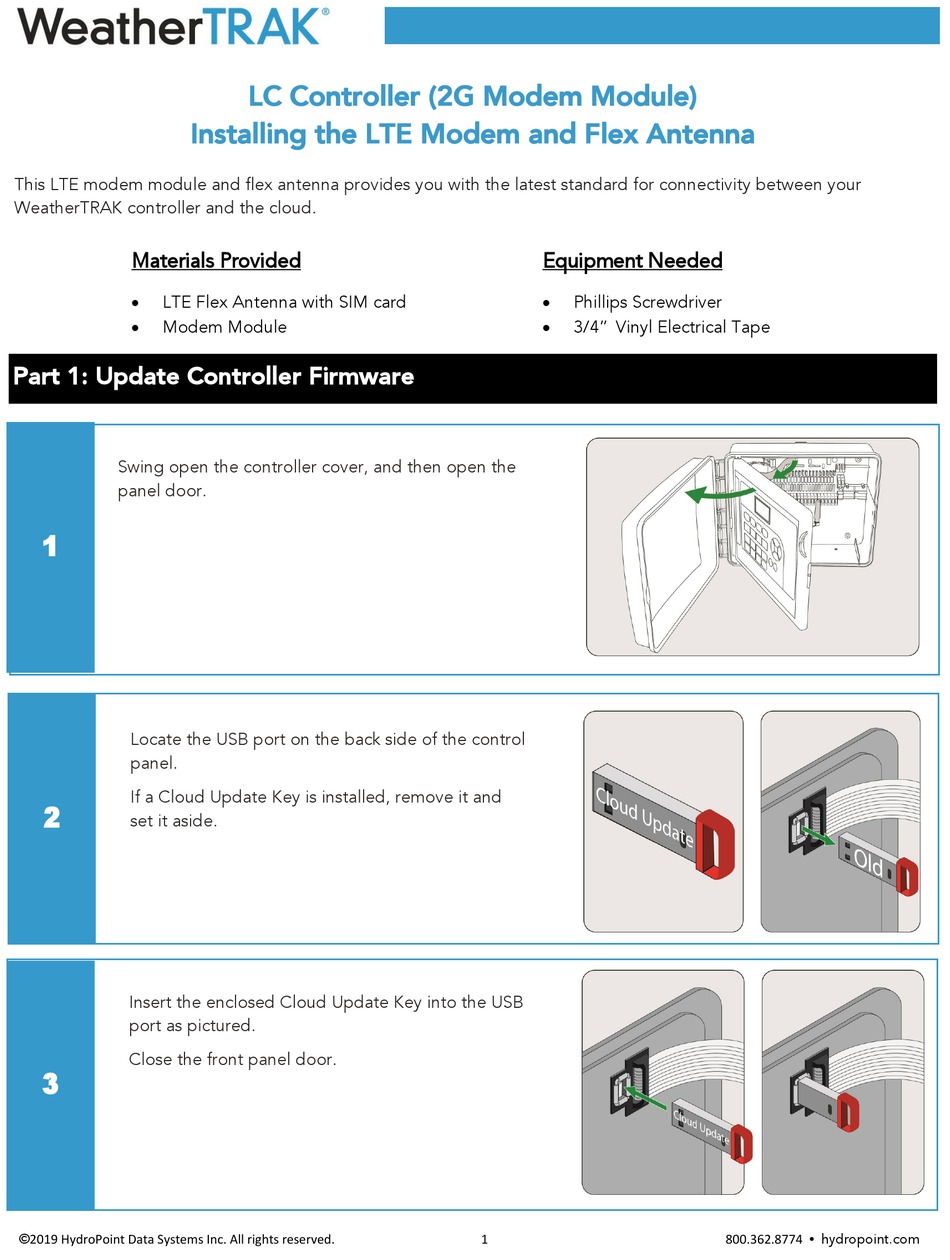

Installing the LTE Modem and Flex Antenna
This LTE modem module and flex antenna provides you with the latest standard for connectivity between your
WeatherTRAK controller and the cloud.
Materials Provided
LTE Flex Antenna with SIM card
Modem Module

Part 1: Update Controller Firmware

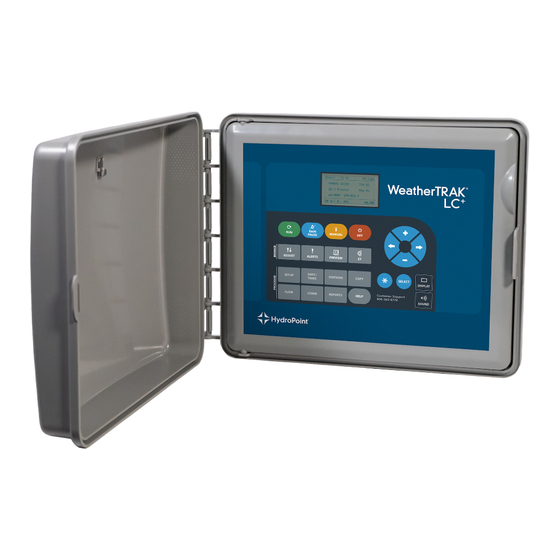

Swing open the controller cover, and then open the
panel door.
1
Locate the USB port on the back side of the control
panel.
If a Cloud Update Key is installed, remove it and
2
set it aside.
Insert the enclosed Cloud Update Key into the USB
port as pictured.
Close the front panel door.
3
©2019 HydroPoint Data Systems Inc. All rights reserved.
LC Controller (2G Modem Module)
Equipment Needed
Phillips Screwdriver
3/4" Vinyl Electrical Tape
1
