Trotec TA400 Operating Manual page 4

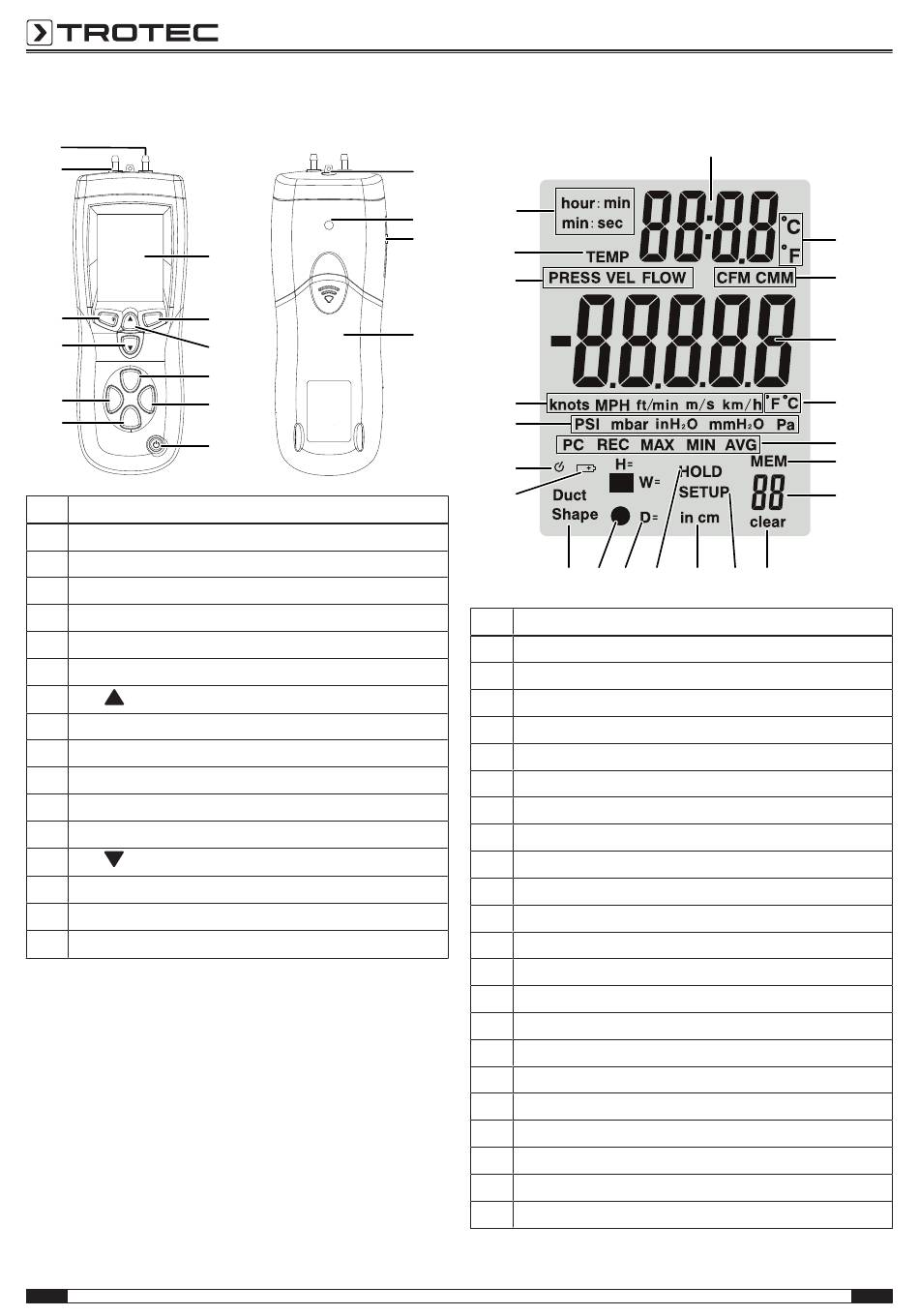

Device depiction
16
15
14
Setup Avg
Rec
Unit
Unit
13
SAVE
CLEAR
12 HOLD
MAX
ZERO
MIN
11
P/V/F
No. Designation
1 Temperature sensor
2 Tripod thread
3 USB port
4 Battery compartment cover
5 Display
6 AVG/REC button
7
Unit button
8 SAVE/CLEAR button
9 HOLD/ZERO button
10 Power button
11 P/V/F button
12 MAX/MIN button
13
Unit button
14 Setup/illumination button
15
- input
16 + input
4
5
6
7
8
9
10
Display
1
38
2
3
37
36
4
35
34
33
32
31
No. Designation
17 Temperature/time display
18 °C/°F indication for display 17
19 Indication of the units CFM/CMM
20 Measurement value indication
21 °C/°F indication for display 20
22 REC, MAX, MIN, AVG indication
23 MEM indication (memory)
24 Memory space indication
25 Clear memory indication
26 Setup active indication
27 Length unit indication
28 HOLD function active indication
29 Height (H) / width (W) / diameter (D) indication
30 Air duct shape indication (round / angular)
31 Air duct cross-section selection mode active indication
32 Battery status indication
33 Automatic switch-off active indication
34 Indication of the pressure unit
35 Indication of the velocity unit
36 Measuring mode indication
37 TEMP indication
38 Time format indication
dynamic pressure anemometer TA400
17
26
27 25
30 29 28
18
19
20
21
22
23
24
EN
