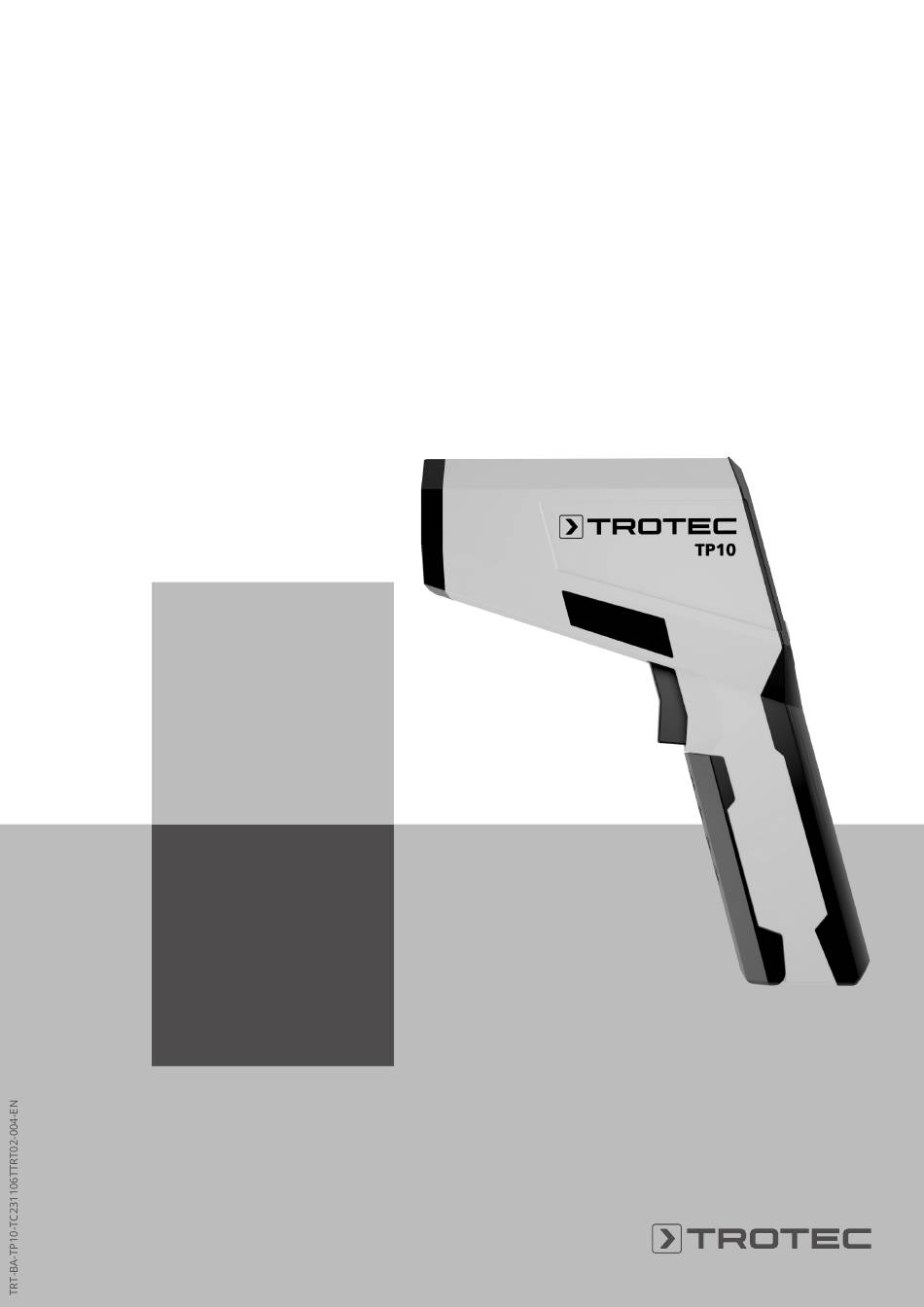

- Page 1 TP10 INSTRUCTIONS PYROMETER...
-
Page 2: Table Of Contents
• Remove discharged batteries from the device. Batteries contain materials hazardous to the environment. Dispose of the batteries according to the national regulations. • Remove the batteries from the device if you will not be using the device for a longer period of time. pyrometer TP10... - Page 3 Warning Risk of suffocation! Do not leave the packaging lying around. Children may use it as a dangerous toy. Warning The device is not a toy and does not belong in the hands of children. pyrometer TP10...
-
Page 4: Information About The Device
Nevertheless, entering an emissivity as appropriate as possible is indispensable for a precise measurement. pyrometer TP10... - Page 5 0.90 to 0.95 Inconel, electro-polished 0.15 Inconel, oxidized 0.70 to 0.95 Inconel, sand-blasted 0.3 to 0.6 Limestone 0.95 to 0.98 Carborundum Ceramics 0.88 to 0.95 Gravel 0.95 Carbon, graphite 0.70 to 0.85 Carbon, not oxidized 0.8 to 0.9 pyrometer TP10...
- Page 6 Scale indication Menu Min/Dif indication Measured value indication Max/Avg indication Emission value indication Designation Display F3 button Mode button F1 button F2 button Laser pointer Infrared sensor Measurement button Battery compartment with cover Miniature contact pin connection USB connection pyrometer TP10...
-
Page 7: Transport And Storage
Resolution 0.1 °C / °F Accuracy ± 1.5 %, ± 3 °C (5 °F) Repeatability ± 1.5 % Operating conditions 0 °C to 50 °C (32 °F to 122 °F), 10 to 90 % RH Storage conditions -10 °C to 60 °C (-2 °F to 140 °F), < 80 % RH pyrometer TP10... -
Page 8: Operation
Settings known emissivity. Lower alarm threshold • Note the 75:1 ratio of the distance to the measuring spot diameter. For accurate measurements the measuring object should be at least twice as large as the measuring spot. pyrometer TP10... - Page 9 ð The menu will be displayed. previously set by hand. 3. Either press the F3 button (2) or the F1 button (4) to view the saved values. 4. Press the F2 button (5) to select Del. ð The Yes All Esc menu is displayed. pyrometer TP10...
- Page 10 Continuously Surface temperature is in normal range. The measurement button (8) or activate continuous illuminated in display will only be illuminated in green if the measurement. green display illumination is activated. pyrometer TP10...
- Page 11 3. Connect the USB cable to a PC. value display. ð Wait for a few seconds until the connection is ð The setting for the upper alarm threshold is saved. established. Info The selected setting will be saved when the device is switched off. pyrometer TP10...
-
Page 12: Maintenance And Repair
2. Connect the contact sensor to the miniature contact pin connection (10) of the device. ð It takes a few seconds until the sensor is detected. ð During the measurement the contact sensor's measured value is indicated in the lower measurement value display (20). pyrometer TP10... -
Page 13: Disposal
You can also find out about other return options that apply for many EU countries on the website https://hub.trotec.com/?id=45090. Otherwise, please contact an official recycling centre for electronic and electrical equipment authorised for your country. - Page 14 Trotec GmbH Grebbener Str. 7 D-52525 Heinsberg +49 2452 962-400 +49 2452 962-200 info@trotec.com www.trotec.com...
