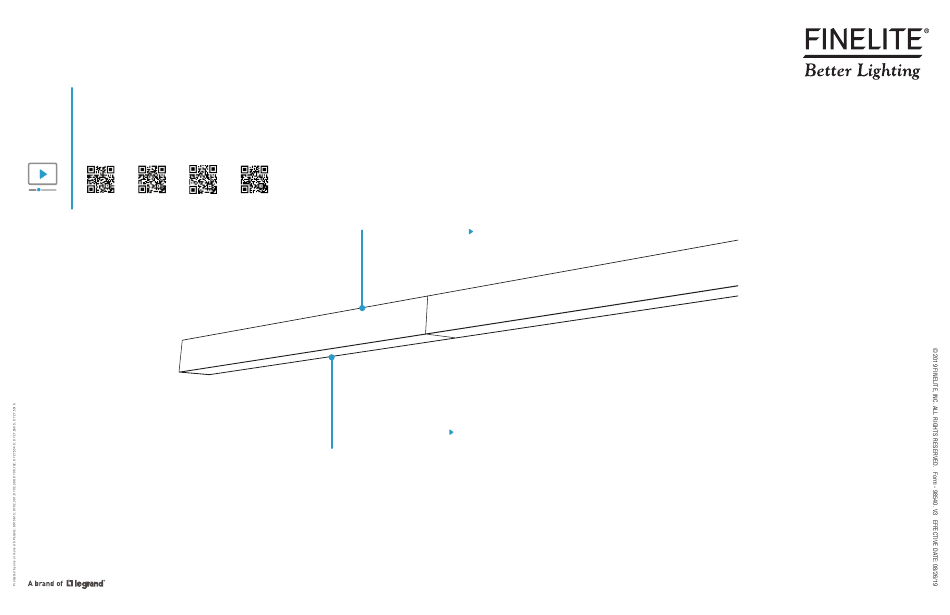

HP-2 / HP-4 / HP-6 Driver Replacement Instructions
Overview
NOTES
All power connections should be installed according to
•
local/national codes by a Certified Electrician.
This installation requires proper support as each luminaire
•
is being installed.
DO NOT attempt to join luminaires together on the floor.
•
Damage may result when lifted.
HELPFUL
Louver
Effortless
0-10V
VIDEOS
Removal
Access
Dimming
This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.
Driver
Replacement
Uplight Driver Replacement
Pages 4-5
Downlight Driver Replacement
Pages 2-3
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
1 of 5
Advertisement
Related Manuals for Finelite HP-2
Summary of Contents for Finelite HP-2
- Page 1 This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary. Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com...
- Page 2 HP-2 / HP-4 / HP-6 Downlight Driver Replacement Instructions Step 1 - Opening Luminaire A. Remove Diffuser or Louver B. Release Backplate Remove Diffuser Putty Knife Option Backplate Backplate Clip Putty Knife Diffuser Remove Louver (HP-2 & HP-4 ONLY) Flathead Screwdriver Option...
- Page 3 HP-2 / HP-4 / HP-6 Downlight Driver Replacement Instructions Step 2 - Replace Driver A. Release Driver B. Replace Driver NOTE : For White Cross Blade Baffle, refer to Baffle Tether Addendum before installing. Screw Washer Driver Electrical Connectors Driver Harness...
- Page 4 HP-2 / HP-4 Uplight Driver Replacement Instructions Step 1 - Opening Luminaire A. Remove Diffuser B. Release Backplate For Indirect Only Uplight Backplate Harness Diffuser Putty Knife Clip Backplate To release backplate, use a putty knife to slip behind backplate edges and release them from clips.
- Page 5 HP-2 / HP-4 Uplight Driver Replacement Instructions Step 2 - Replace Driver A. Release Uplight Driver B. Replace Uplight Driver Screw Driver Washer Driver Electrical Connectors Driver Harness WIRING LEGEND Black Line Voltage White Neutral Line Voltage Green Ground Release driver from luminaire by removing mounting screws.
