Finelite HP-4 Installation Instructions

FINELITE

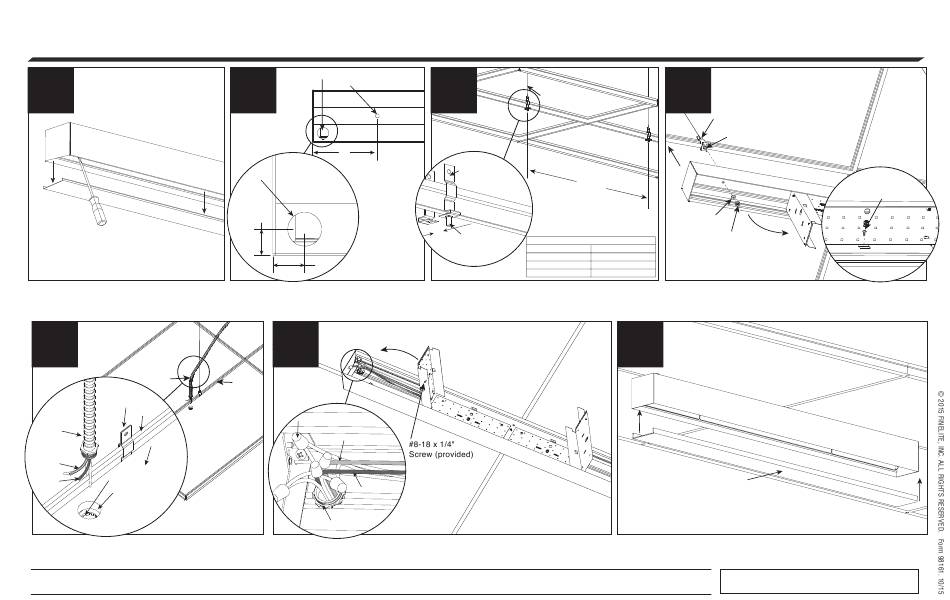

Step 1
Remove lens and set aside to prevent it from getting dirty
or damaged.
Step 5
Conduit
Caddy Clip
T-Bar
Conduit
Ceiling Tile
Dimming
(Gray)
Feed Hole
Dimming
(Purple)
Hole Cut
In Ceiling Tile
Cut hole in ceiling tile for conduit to pass through. Insert wires
and conduit through ceiling tile and into fixture feed hole.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • 510 / 441-1100 • Fax: 510 / 441-1510 • www.finelite.com
HP-4 Surface Mount T-Bar Starter/Independent Installation Instructions
New Feed Hole
1/4"-20 Thread Hole
Step 2
6"
1.00"
0.67"
2.00"
Note new feed hole on fixture as indicated above.
Step 6
T-Bar
Wire Nut
Dimming
(Gray)
Dimming
(Purple)
Jam Nut
Insert wires through jam nut and install jam nut onto conduit connector. Make wiring connections.
Replace trap door and fasten with #8-18 x 1/4" screws (provided).
Step 3
Secure to Structure
(by others)
Caddy Clips
A"
1/4"-20 Threaded Stud
MOUNTING HOLE LOCATION TABLE
FIXTURE LENGTH
4'
8'
12'
Install caddy clips accordingly. Secure fixture to structure using
tie-wire (supplied by others) according to code.
Protected by one or more US Patents: 8915613; D702,391; D702,390; D700,732
Step 4
Caddy Clips
1/4" - 20 Threaded Stud
1/4" Washer
1/4"-20 Nut
'A'
36"
84
132"
Remove #8-18 x 1/4" screw (provided) to open trap door and install fixture
onto caddy clips with 1/4"-20 Nut and 1/4" washer onto 1/4"-20 threaded
stud. Repeat this step on the other end of the fixture.
Step 7
Lens
Reinstall lens. Turn power on to fixture.
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
#8-18 x 1/4"
Screw (provided)
