Finelite HP-2 Recessed Installation Instructions

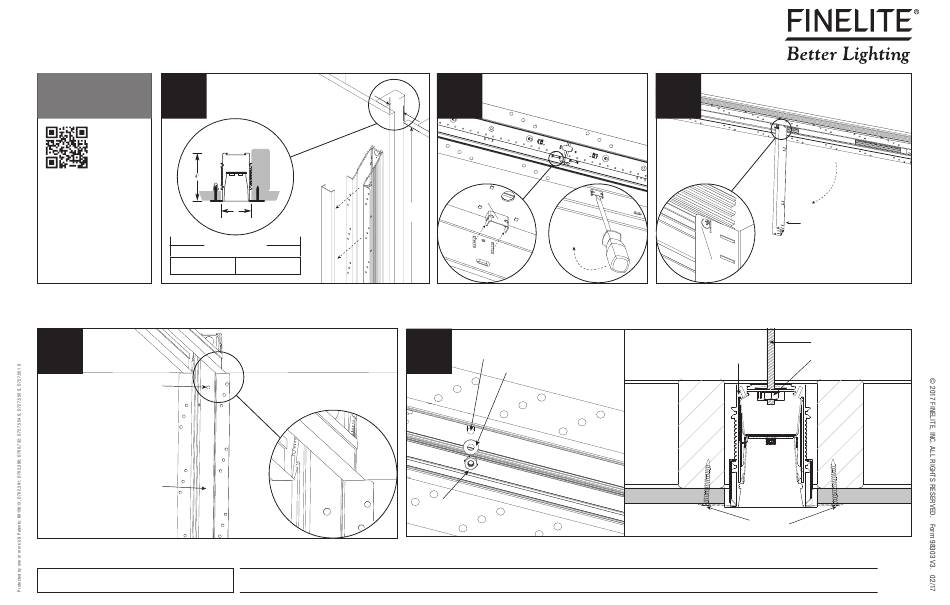

HP-2 Recessed 1" T-Bar to Spackle Flange Installation Instructions
Scan QR code for
Step 1
helpful video(s)
0 - 10V
Cutout Dimension
Dimming
A + 3/4" +/- 1/16"
Starter
Remove diffuser from corner joiner luminaire and set it aside to prevent it from
getting dirty or damaged. Add 3/4" to body/row length (A), +/- 1/16" to simplify
installation. Luminaire needs to be installed next to support blocking.
Step 4
Ceiling
1/4"-20 Threaded Rod Hole
Wall
Corner Joiner
Insert corner joiner luminaire into wall rough opening. Use proper support blocking (by others). Make sure
spackle flange is flush with ceiling T-Bar.
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
3"
Corner Joiner
Diffuser
A
3"
Joiner/Ender
ower Wires
Step 5
A. Secure corner joiner by installing 1/4" washers (by others) and 1/4"-20 nuts (by others) onto 1/4"-20 threaded rod (by others).
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 2
Back Plate Clip
Remove back plate clips (provided) to release back plates.
We recommend using a flat head screwdriver to get them
loose. CAUTION: Do not lose these pieces.
1/4"-20 Threaded Rod
(by others)
1/4" Washer
(by others)
1/4"-20 Nut
(by others)
Step 3
Back Plate
Pivot Point
Slowly swing down back plates from all luminaires. CAUTION: Do not twist
back plate when swinging down - it will come out of the support extrusion.
Note that the screw shown is the pivot point and the back plate can be slid a
few inches either way for ease of access to the driver space.
1/4"-20 Threaded
Rod (by others)
Luminaire
1/4"-20 Nut
(by others)
Support Support
Blocking Blocking
(by others) (by others)
Drywall
Drywall Screws
(by others)
Drywall
1
