Finelite HP-6 Recessed Installation Instructions

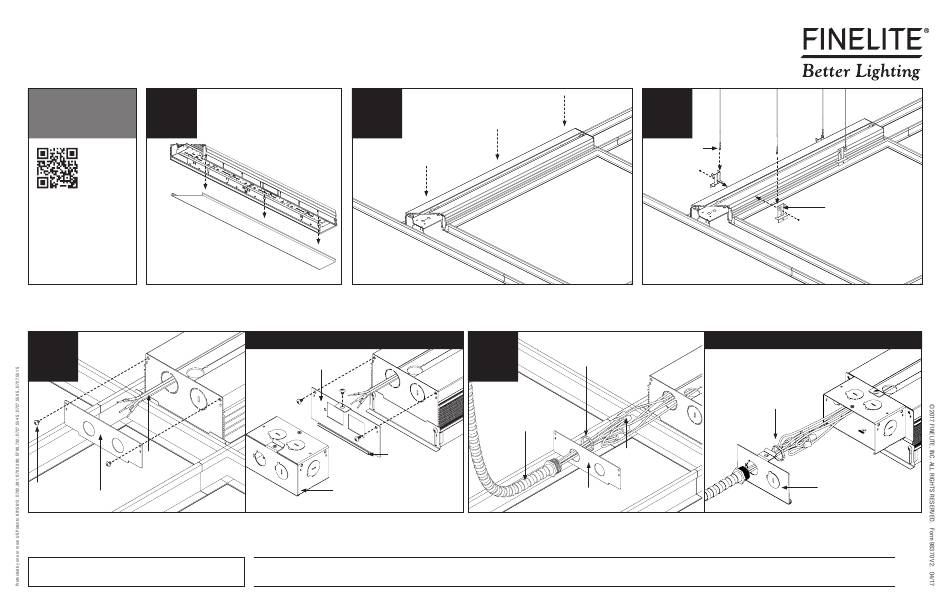

HP-6 Recessed 1" T-Bar Mitered Corner Installation Instructions
Scan QR code for
Step 1
helpful video(s)
0 - 10V
Dimming
Remove diffusers and set aside to prevent it from getting dirty
or damaged. NOTE: If part of a longer run, diffuser will be
reinstalled back into original luminaire section as lengths vary.
Step 4
Wires
Screws
Conduit Plate
Remove conduit plate from luminaire. NOTE: Purple
and gray wires are for Low Voltage Control.
Note: All power connections to be installed to local/national codes
by a Certified Electrician.
Step 2
Starter
Diffuser
Install starter luminaire on to T-Bar.
OPTIONAL SPLICE BOX
Conduit Plate
Splice Box
Bracket
Splice Box
Attach optional splice box to conduit plate by hooking onto
splice box bracket. Insert wires through feed hole.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Starter
Step 5
Jam Nut
Conduit
Wires
Conduit Plate
Run power cables through conduit plate and jam nut. Make electrical
connections. Secure conduit onto conduit plate with jam nut, and
reinstall conduit plate carefully not to damage any wiring.
Step 3
Secure to Structure
(by others)
Starter
#8-18 x 1/4" Screws (provided)
Install T-Bar bracket onto luminaire. Secure with #8-18 x 1/4" screws (provided). Secure
luminaire to structure using tie-wire (by others), as per code.
OPTIONAL SPLICE BOX
Jam Nut
Conduit Plate
Run power cable through knock-out. Make electrical connection.
Secure conduit on to splice box with jam nut and close conduit plate.
T-Bar Bracket
