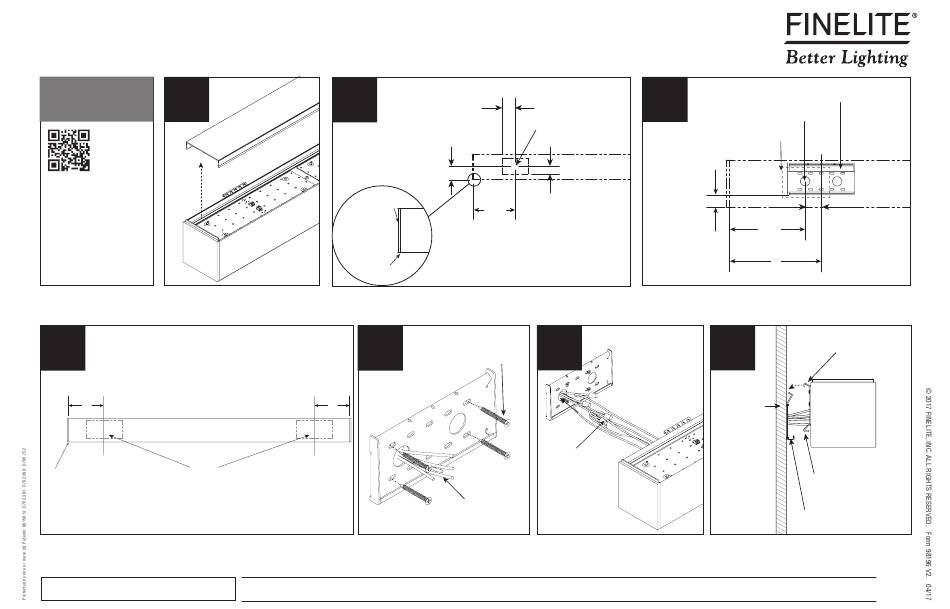

HP-4 Wall Mount Indirect Starter/Independent
Installation Instructions
Scan QR code for
Step 1
helpful video(s)
Diffuser
0 - 10V
Dimming
Remove Top Glow™ diffuser and set aside to
prevent it from getting dirty or damaged.
Step 3B
6"
Feed
Starter/Independent
End
.
Wall Rail
Point A
B) Center of mounting rail for independent is 6" from Point A as indicated. Make sure rail has
proper backing (by others).
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
Step 2
End Cap
.
Starter
Point A
Position luminaire on wall in desired location. Mark the bottom corner of the luminaire, do
not include end cap. This will be Point A. Use Point A to find and mark feed location.
Step 4
6"
Level wall rail to ensure proper mounting. Install
#10 screws (by others) through rail and into
backing.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
2"
Junction Box
(Feed Location)
.
2-5/16"
1-1/4"
4-1/2"
Step 5
#10 Screws (by others)
Electrical
Connections
Wiring
Make electrical connections and push completed
wiring into junction box.
Wall Mount Rail
Step 3A
Feed Location
Junction Box
.
1-1/16"
4-1/2"
6"
A) Use feed location to center and install junction box. Position and install
starter wall rail.
Step 6
Wall
Bottom Hook
Wall Rail
Install luminaire onto wall rails then slide it straight down to
engage hooks on top and bottom of wall rail.
1-1/2"
Top Hook
Luminaire
