Finelite HP-2 Recessed Installation Instructions

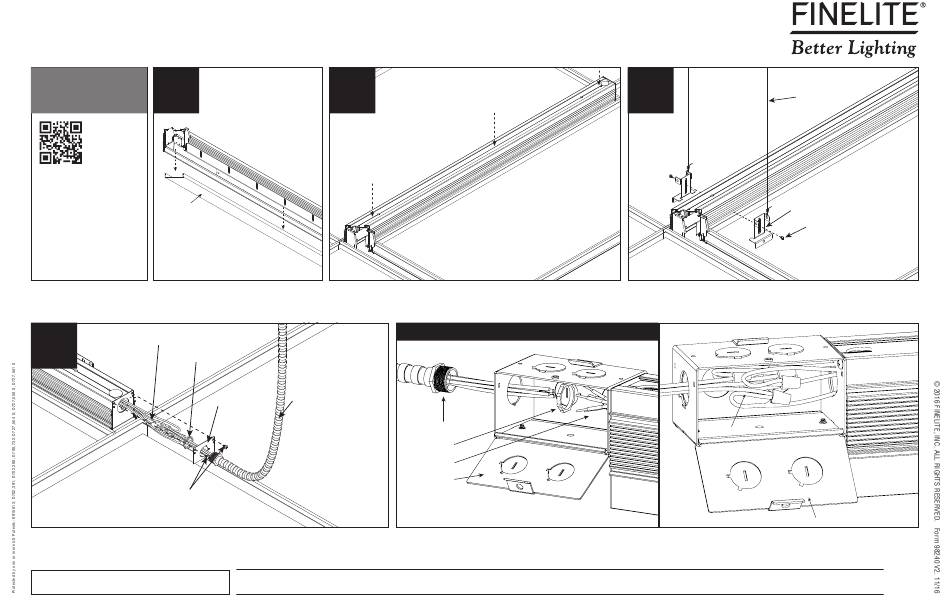

HP-2 Recessed T-Bar Mitered Corner Installation Instructions
Scan QR code for
Step 1
helpful video(s)
0 - 10V
Dimming
Diffuser
Remove diffuser and set aside to prevent it from
getting dirty or damaged.
Wiring Connections
Step 4
Jam Nut (by others)
#8-18 x 1/4" Screws
(provided)
Remove conduit plate then install wiring through conduit plate and through jam nut. Secure jam nut onto
conduit. Make wiring connections and then reinstall conduit plate.
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
Step 2
Starter
Install starter luminaire on to T-Bar.
Conduit
Conduit Plate
(by others)
(provided)
Open optional splice box door to access wiring.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Starter
OPTIONAL SPLICE BOX
Conduit
Jam Nut
Wires
Splice Box Door
Step 3
Tie-wire
(by others)
Starter
T-Bar Bracket (provided)
Attach T-Bar bracket (provided) to luminaire with #8-18 x 1/4" screw (provided).
Secure luminaire to structure using tie-wire (by others), as per code.
Wires
Run power cable through knock-out. Make electrical connections. Secure
conduit on to splice box with jam nut and close splice box door.
#8-18 x 1/4"
Screws (4) (provided)
Splice box door
1
