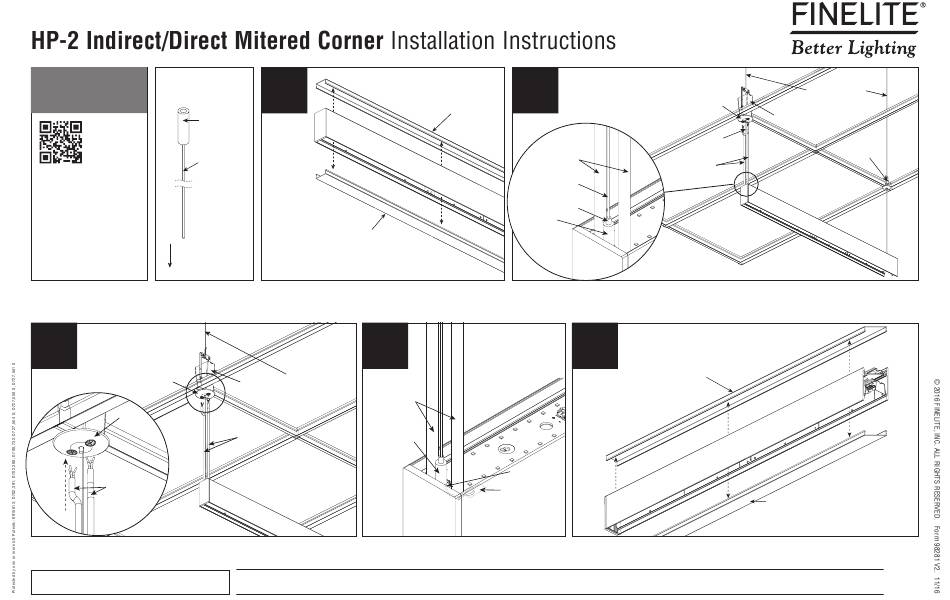

Finelite HP-2 Indirect Installation Instructions

Scan QR code for
Ceiling
helpful video(s)
Cable Bushing
0 - 10V
Dimming
Aircraft Cable

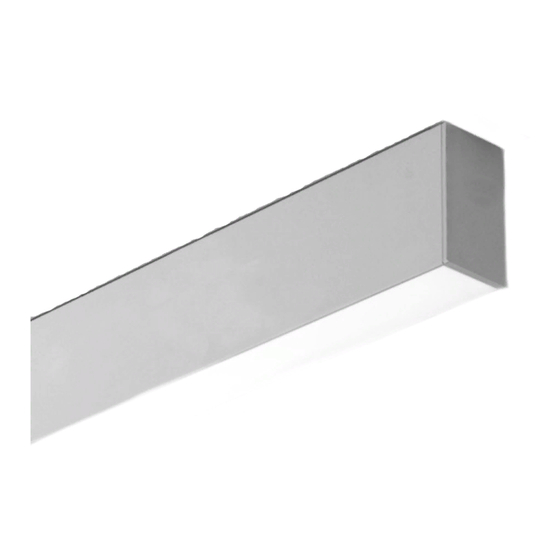

Luminaire
Locate aircraft cables.
Step 3
Canopy
Canopy
Power Cords
Install power cable through canopy and into GridBox. Make electrical connections in GridBox.
Note: All power connections to be installed to
local/national codes by a Certified Electrician.
Step 1
Bottom Diffuser
Remove diffusers from starter and set aside to prevent it from getting
dirty or damaged.
Step 4
Secure To Structure
GridBox™ (by others)
Power Cords
Power Cords
Gripper
Starter
Slide safety stop and safety crimp up to the aircraft cable
within 9" of cable gripper. Trim excess cable and insert safety
bar assembly through feed hole.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 2
Top Glow™ Diffuser
Power Cords
Starter
Aircraft Cable
Press Here To Release
Gripper
Install GridBox™ and caddy clip onto ceiling grid, then canopies and aircraft cable assemblies. Align aircraft cables to grippers
and insert on both ends of the luminaire. Adjust pendant to proper height and level. Press down on top of gripper to release
locking mechanism if needed. Secure luminaire to structure using tie-wire (by others) according to code.
Step 5
Starter
Feed Hole
Safety Stop
Remove diffusers from joiner/ender and set aside to prevent it from getting dirty or damaged.
Secure To Structure
(by others)
Canopy
GridBox™
Aircraft Cable
Caddy Clip
Power Cords
Starter
Top Glow™ Diffuser
Joiner/Ender
Bottom Diffuser
1
