Finelite HP-6 Recessed Installation Instructions

HP-6 Recessed Flush Diffuser 1" Tegular T-Bar
Starter/Independent
Scan QR code for

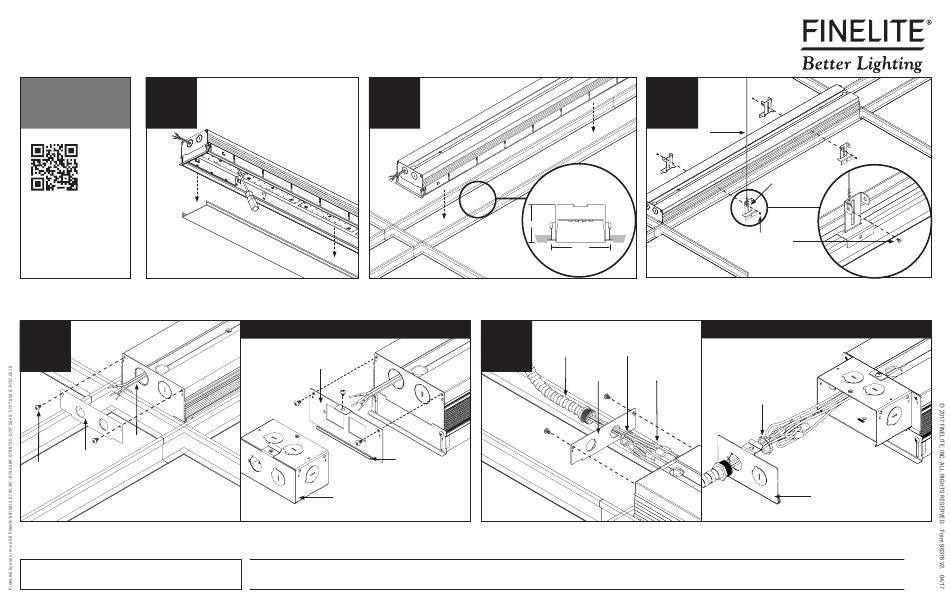

Step 1
helpful video(s)
0 - 10V
Dimming
Diffuser
Remove diffuser and set aside to prevent it from getting dirty or dam-
aged. NOTE: If part of a longer run, diffuser will be reinstalled back
into original luminaire section as lengths vary.
Step 4
Wires
Conduit Plate
Screws
Remove conduit plate from luminaire. NOTE: Purple and gray wires
are for Low Voltage Control.
Note: All power connections to be installed to local/national codes
by a Certified Electrician.
Installation Instructions
Step 2
Configure T-Bar to luminaire size and leave an opening for luminaire as noted above.
Make sure T-Bars are aligned at 90 degrees. Place luminaire on T-Bar.
OPTIONAL SPLICE BOX
Conduit Plate
Splice Box
Attach optional splice box to conduit plate by hooking onto splice box
bracket. Insert wires through feed hole.
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Starter
Center-to-Center
T-Bar Spacing
4"
6-3/8"
1" Tegular
Step 5
Conduit
Splice Box
Bracket
Run power cables through conduit plate and jam nut. Make electrical
connections. Secure conduit onto conduit plate with jam nut, and
reinstall conduit plate carefully not to damage any wiring.
Step 3
Secure to
Structure
(by others)
#8-18 x 1/4" Self Drilling
Screws (Provided)
Install T-Bar bracket onto luminaire. Secure with #8-18 x 1/4" screws (provided).
Secure luminaire to structure using tie-wire (by others), as per code.
OPTIONAL SPLICE BOX
Jam Nut
Conduit Plate Wires
Jam Nut
Run power cable through knock-out. Make electrical connection.
Secure conduit on to splice box with jam nut and close conduit plate.
T-Bar Bracket
Conduit Plate
