Connecting The Tubeset; Disconnecting The Tubeset; System Operation - Getinge Arjohuntleigh NIMBUS 3 Instructions For Use Manual

Connecting the
Tubeset
Disconnecting the
Tubeset
System Operation The system is now ready for use. Refer to
Make sure the mains power cord and tubeset are positioned to
avoid causing a hazard.
Make sure the mains power cord and tubeset are clear of moving
bed mechanisms or other possible entrapment areas.

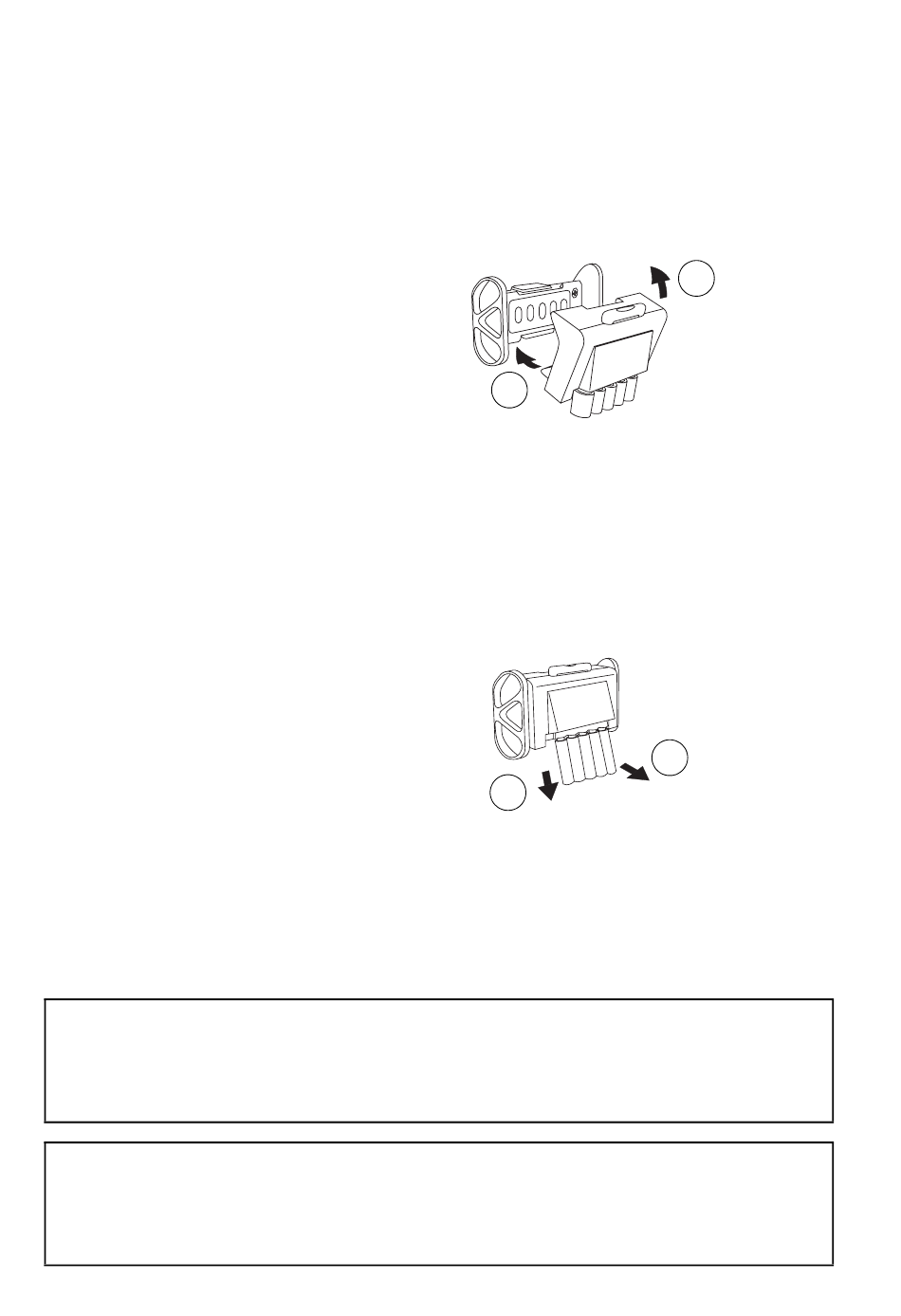

To connect the tubeset to the mattress and pump:
1. Locate the bottom of the tubeset connector onto the
bottom of the pump/mattress connector.
2. Pull the top of the tubeset connector up and over the
top of the pump/mattress connector, until the
tubeset connector "clicks" into position.
3. Make sure both connections are secure.
To disconnect the tubeset from the mattress and pump:
1. Move the tubeset connector down by pulling the
tubeset extrusion downwards, and then pull the
bottom of the tubeset connector away from the
bottom of the pump/mattress connector.
2. Lift the top of the tubeset connector off the top of
the pump/mattress connector.
Section 4, Page 11 "Controls, Alarms and Indicators"
and Section 5, Page 16 "Operation" for day-to-day
operating instructions.
