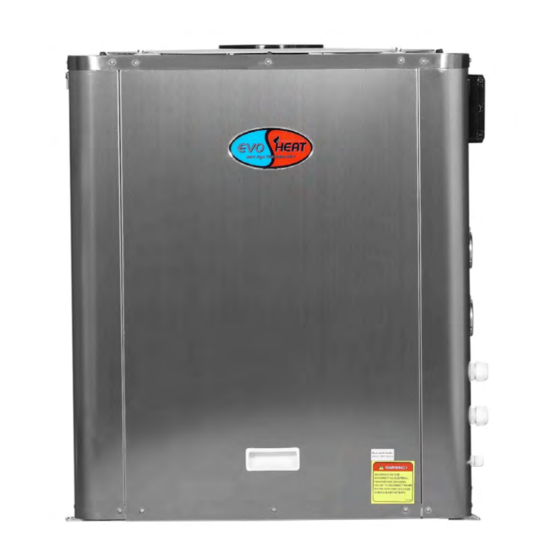

evoheat DHP20-R Installation And Operation Manual
Dhp r series swimming pool heat pump
Hide thumbs
Also See for DHP20-R:
- Installation & operation manual (25 pages) ,
- Installation & operation manual (22 pages) ,
- Installation and operation manual (23 pages)
Related Manuals for evoheat DHP20-R
Summary of Contents for evoheat DHP20-R

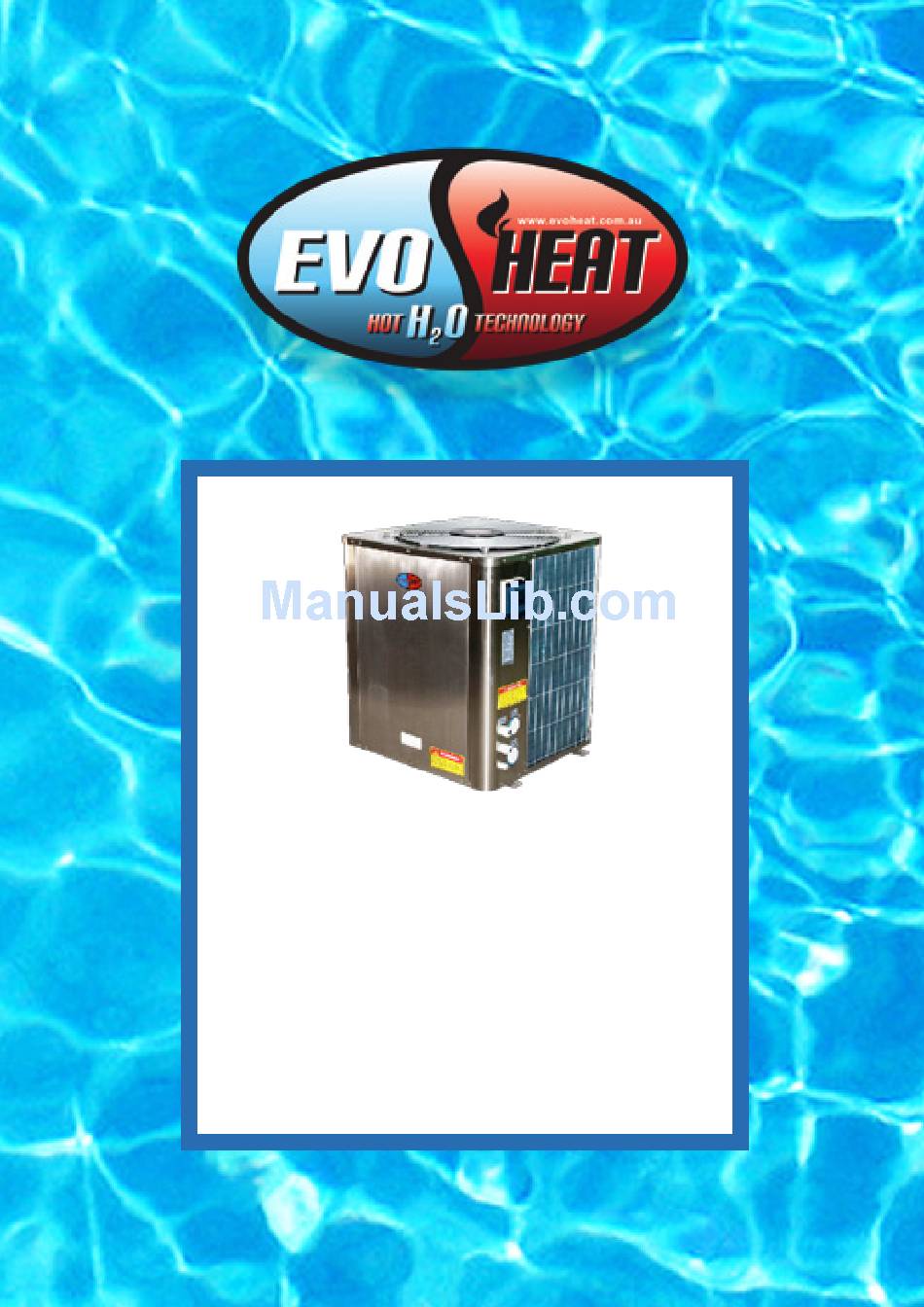

- Page 1 DHP R SERIES SWIMMING POOL HEAT PUMP INSTALLATION AND OPERATION MANUAL PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR OPERATING THE UNIT...
- Page 2 CHAPTER 1: Installation Chapter 1 deals with installation of your Evoheat pool heater and is predominately for use by your installer/ technician. Evo recommends however that owners make themselves familiar with this chapter. CHAPTER 2: Operation Chapter 2 covers operation of your Evoheat pool heater including basic and advanced operation modes and maintenance/ troubleshooting.
-
Page 3: Table Of Contents
3.8 Remote Controller Connection Troubleshooting Guide CHAPTER 2 Operation Appendix Temp Sensor Probes Display Explanation Appendix A – Wiring Diagrams 1. Controller Operation Appendix B – Technical Data Control Panel Explanation EVOHEAT Warranty Operation Instructions Warranty Registration a) On-off Operation... -
Page 4: General Information
Heat Output at max ambient (43 11.5 17.0 22.5 27.5 and operation of your heater. Consult your EVOHEAT Distributor with any questions regarding deg air) 27 water (kw) this equipment. Heat Ouput at 24 deg air 27 deg 14.0 19.0... -
Page 5: Dimensions
Use an accurate pool thermometer. A difference of 2°C , between 26°C and 28°C, DHP603-R will significantly increase energy consumption. Carefully monitor the water temperature of your pool in the summer time. You can reduce heat pump usage due to warmer air temperatures. When the pool is not to be used for long periods, turn off the heat pump. -
Page 6: Chapter 1 Installation
Inspect the packaging, the heater and other items after receipt for possible damage in Evoheat sales brochure and in this manual on page 5. It is imperative that water flow is kept transportation. Please contact your EVOHEAT dealer immediately should you suspect any as close as possible to these flow rates. -
Page 7: Location
Correct installation is required to ensure safe and efficient operation of your pool heater. Clearances Installation requirements for EVOHEAT heat pumps include the following: Minimum required clearances The unit needs continuous fresh air whilst running. The heater Appropriate site location and clearances. -
Page 8: Water Pump Connection
Water Pump Connection Advantages Typical Plumbing Layouts • Easy to use – set and forget the heater operation and leave your chlorinator to How do I connect up my new work as normal EVO heater to my pool or spa? •... -
Page 9: Electrical Connection
Condensate Drain Barb Evo strongly recommends the installation of a Residual Current Device. Fit these into the 2 holes under the unit if you need to direct water away from the heater. The unit must be well earthed. Put in hot water if stiff. Remove the front panel to access the electrical connection terminals of the heater. -
Page 10: Chapter 2 Operation
Up key C H A P T E R 2 O p e r a t i o n Select higher item inside the programming environment; Increase parameter value Down key Display Explanation Select lower item inside the programming environment; Decrease parameter value;... -
Page 11: B) Mode Selection
Mode selection Keyboard lock and unlock The unit has three operation modes: Cooling mode, Heating mode, Auto mode. When parameter "H01=0", there is only "cooling mode" to choose; When parameter "H01=1", Press “mode” to select modes of heating, cooling, automatic; When parameter "H01=2", there is only "heating mode"... -
Page 12: E) Clock Setting
Clock setting Timer on and off setting Timer on setting Attention: After the final step,“OFF”will flash. You can press“clock” to go on to set the timer off value. If you only want to set the timer on, then after the final step just press “on/off”... - Page 13 Timer off setting The operation of canceling timer on /off Notes: At the main interface, press “clock" until the "off" is flashing- you can set the timer off. After the last step of timer-on, pressing “clock" will go to timer off setting interface. If there is no operation for 5 seconds, the system will remember the clock setting and go back to the main interface.
-
Page 14: G) Parameter Setting
Parameter Setting Factory Parameter Setting The parameters are divided into 2 different types, according to their level of access by the user (password) and their function. Factory parameters Accessible with the 66 "factory" password - allows the configuration of all the unit’s parameters. - Page 15 User Parameter Setting The download operation Press “mode” for 10s, and input password 66/22, pressing “mode” to enter parameter setting interface as following: Upload: Press “UP” for 2s; Download: Tap “DOWN”. During upload/ download process, the dash will flashing. When it has been done, system enter next interface.
-
Page 16: Pcb I/O Ports Description
PCB I/O Ports description Fan parameter Coil temp. in high speed fan mode -15-60°C (Cooling) Coil temp. in low speed fan mode -15-60°C (Cooling) Coil temp. when the fan stop (Cooling) -15-60°C Coil temp. in high speed fan -15-60°C mode(Heating) Coil temp. -
Page 17: Description Of The Parameters
Description of the parameters EEV parameter EEV mode Defrost parameter Start defrost temperature E01=0: EEV is running by manual operation; To start the defrost cycle; the condition must be valid for the time d03. E01=1: EEV is running by automatic operation; End defrost temperature Target Super heat Establishes the temperature above which the defrost cycle ends. - Page 18 This represents the temperature in reference to F03 below which the fans are stopped. H02=1: heating, cooling and automatic; H02=2: only heating. Temperature unit of measure H03=0: Centigrade unit; (Other area) H03=1: Fahrenheit unit.( For North America area) Water pump parameters Water pump model P01=0, water pump will always on except on standby and alarm.
-
Page 19: Wireless Controller Operation
Wireless Controller Operation This represents the difference between R01 and stop cooling point. Installing the Wireless Antenna Start differential of heating The wireless antenna needs to be screwed into the antenna fitting on the side of the heater This represents the difference between R02 and start heating point. and should be pointing up. -
Page 20: Turning The Controller On And Off
5. The controller usage Avoid damaging the charger jack, be careful when you connect or disconnect the charger cable or removing and replacing the controller in the docking station. Unlock controller Drag to the right edge of the screen to unlock controller. Malfunction icon Displays when the heater has a problem Signal strength... -
Page 21: Setting The Desired Target Temperature
Setting the desired target temperature (2). Setting the Timer to enter the menu for timer on/off control. This operation is the same as time setting to change the target temperature value. shown above. Heating mode Highlighted icon shows Green tick means the current mode timer is set. -
Page 22: Maintenance And Troubleshooting
Temp. Difference between inlet Temp. Difference>13 Temp. Difference<13, power off and outlet a. Is the fan functioning? If not contact EVOHEAT for service information Antifreezing protection Antifreezing temp. <2 Check flow and water system b. Is the air discharged from the top of the fan noticeably cooler than the ambient temperature? Primary Antifreezing protection Ambient temp. -
Page 23: Appendix Temp Sensor Probes
Appendix Temp Sensor Probes Appendix A – Wiring Diagrams Resistance/Temp Table R25=5KΩ B25/50=3470K AT：Ambient temperature T( ) R(KΩ) T( ) R(KΩ) T( ) R(KΩ) COMP：Compressor CT：Coil temperature EEV：Electronic expand valve -30.0 63.7306 14.0 7.7643 58.0 1.5636 COMP FM：Fan motor FS：Flow switch HL：Indicator -29.0 60.3223... -
Page 24: Appendix A - Wiring Diagrams
Appendix A – Wiring Diagrams Appendix B – Technical Data COMP RED BLU AI06 OUT3 OUT1 OUT2 AI05 OUT4 AI04 OUT5 TO POWER AI03 TO PUMP SUPPLY AC-N 240V~/50Hz AI02 AT：Ambient temperature CH：Compressor heater AI01 COMP：Compressor CT：Coil temperature FM：Fan motor FS：Flow switch HL：Indicator 1 2 3... - Page 25 Appendix B – Technical Data Appendix B – Technical Data...
- Page 26 Appendix B – Technical Data Appendix B – Technical Data...
-
Page 27: Evoheat Warranty
When a unit is installed by an unqualified person Email: * Where a unit is incorrectly installed Please tell us about which EvoHeat product you bought, who you bought it from and what When failure occurs due to improper or faulty installation you will be using it for. - Page 28 www.evoheat.com.au...
