Summary of Contents for evoheat DHP-R Series

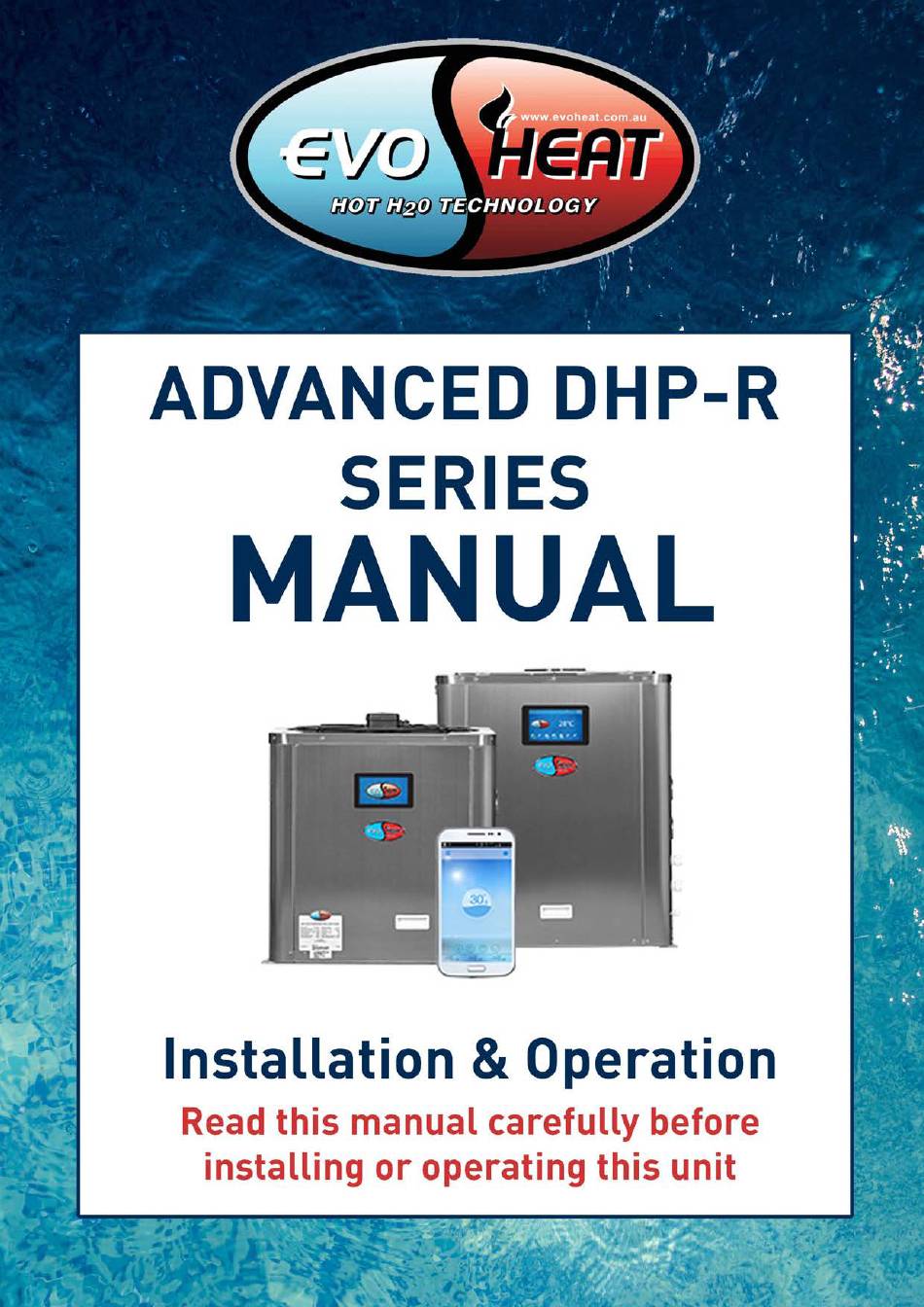

  • Page 1 P a g e...
  • Page 2: Table Of Contents

    4.4.1 Wire Control Interface Diagram and Definition ......................18 4.4.2 Controller Interface Diagram and Definition ........................18 5. Appendix ....................................20 5.1 Caution and Warnings ................................20 Cable Specifications..............................23 5.3 EvoHeat Warranty ................................24 Warranty Registration Form ............................25...
  • Page 3: Preface

    • Use genuine standard spare parts only. • Failure to comply with these recommendations will invalidate the warranty. • The EvoHeat DHP-R Advanced heats the swimming pool water and keeps the temperature constant. For split type unit, the indoor unit can be discretely hidden or semi-hidden to suit a luxury house.
  • Page 4: Specifications

    P a g e 2. Specifications 2.1 Dimensions for the DHP-R Advanced Units DHP20-R / DHP30-R / DHP40-R / DHP50-R DHP603-R...
  • Page 5: Installation And Connection

    P a g e 3. Installation and Connection 3.1 Installation of System Installation Items The factory only provides the main unit and the water unit; the other items in the illustration are necessary spare parts for the water system that are to be provided by users or the installer. Attention Please follow these steps when starting for the first time: 1.
  • Page 6: Location Of Installation

    The Evo pool heat pump should be installed with a minimum clearance of at least 3.5m to the water’s edge. Furthermore, EvoHeat recommend installing the heat pump no greater than 7.5 meters away from the water’s edge due to heat loss from the piping. If you do not have a location with these suggested clearances, please contact our EvoHeat Tech Support Specialist on 1300 859 933 to discuss appropriate installation locations.
  • Page 7: Plumbing Of The Unit

    P a g e 3.4 Plumbing of the Unit The Swimming Pool Heat Pumps exclusive rated flow titanium heat exchanger requires no special plumbing arrangements except bypass (please set the flow rate according to the nameplate). The water pressure drop is less than 10kPa at max flow rate. Since there is no residual heat or flame temperatures, the unit does not need copper heat sink piping.
  • Page 8: Electrical Wiring Of The Unit

    P a g e 3.5 Electrical Wiring of the Unit NOTE: Although the unit heat exchanger is electrically isolated from the rest of the unit, it simply prevents the flow of electricity to or from the pool water. Grounding the unit is still required to protect you against short circuits inside the unit.
  • Page 9: Usage And Operation

    P a g e 4. Usage and Operation 4.1 Controller Interface Introduction 4.1.1 Main Interface 4.1.2 Button Descriptions...
  • Page 10: Controller Functions

    | 10 P a g e 4.2 Controller Functions 4.2.1 Booting and Shutdown As shown in figure 4.1.1: In shutdown status, click (1) then the unit will be booted. In booting status, click (1) and the unit will shut down. 4.2.2 Mode Switch and Target Temperature Setting In the main interface, click mode button or inlet water temperature setting button, interface displays as follows:...
  • Page 11: Clock Setting

    | 11 P a g e 4.2.4 Clock Setting 4.2.5 Time Setting...
  • Page 12: Timing Settings

    | 12 P a g e 4.2.6 Timing Settings...
  • Page 13: Silent Setting And Silent Timing

    | 13 P a g e 4.2.7 Silent Setting and Silent Timing 4.2.8 The Silent Button (DHP40-R & 50-R Only)
  • Page 14: Timing Silent Function (Dhp40-R & 50-R Only)

    | 14 P a g e 4.2.9 Timing Silent Function (DHP40-R & 50-R Only)
  • Page 15: Fault History

    | 15 P a g e 4.2.10 Fault History 4.2.11 Colour Display Calibration Keep clicking quickly on the blank area at any interface until you hear a long beep. You will then enter the calibration interface. Click “+” to start calibration. When you hear the beep again, you will finish calibration and exit.
  • Page 16: Parameter List And Breakdown Table

    | 16 P a g e 4.3 Parameter List and Breakdown Table 4.3.1 Electronic Control Fault Table Protect/fault Fault Reason Elimination methods display Standby Normal boot Inlet Temp. Sensor Fault The temp. sensor is broken or short Check or change the temp. sensor circuit Outlet Temp.
  • Page 17 | 17 P a g e Frequency Conversion Board Fault Table Protection/fault Fault Display Reason Elimination Methods Drv1 MOP alarm MOP drive alarm Recovery after the 150S Inverter offline Frequency conversion board and main board Check the communication connection communication failure IPM Protection IPM modular protection Recovery after the 150S...
  • Page 18: Parameter List

    | 18 P a g e 4.3.2 Parameter List Meaning Default Remarks Refrigeration target temperature set point 27°C Adjustable Heating the target temperature set point 27°C Adjustable Automatic target temperature set point 27°C Adjustable 4.4 Interface Drawing 4.4.1 Wire Control Interface Diagram and Definition 4.4.2 Controller Interface Diagram and Definition...
  • Page 19 | 19 P a g e Main board of the input and output interface instructions below Number Sign Meaning OUT1 Compressor (output 220-230VAC) OUT2 Water pump (output 220-230VAC) OUT3 4-way valve (output 220-230VAC) OUT4 High speed of fan (output 220-230VAC) OUT5 Low speed of fan (output 220-230VAC) AC-L...
  • Page 20: Appendix

    | 20 P a g e 5. Appendix 5.1 Caution and Warnings The unit can only be repaired by qualified personnel or an authorised dealer. This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 21 | 21 P a g e...
  • Page 22 | 22 P a g e...
  • Page 23: Cable Specifications

    | 23 P a g e 5.2 Cable Specifications Single Phase Unit Nameplate Phase line Earth line Creepage Protector Signal line maximum current No more than 2 x 1.5mm 1.5mm 30mA less than 0.1 sec 10~16A 2 x 2.5mm 2.5mm 30mA less than 0.1 sec 16~25A 2 x 4mm...
  • Page 24: Evoheat Warranty

    | 24 P a g e 5.3 EvoHeat Warranty The titanium heat exchanger tubing is guaranteed against corrosion for a period of twenty-five (25) years from the date of purchase when used with chlorine, salt, bromine or sea water. (*25 year warranty on the titanium heat exchanger is valid for Evo heat pumps purchased post 15.05.2018.
  • Page 25: Warranty Registration Form

    Suburb: * Postcode: * State: * Email: * Please tell us about which EvoHeat product you bought, who you bought it from and what you will be using it for: Product & Model: * Serial Number: * Authorised Installer: *...

This manual is also suitable for:

Dhp 30-rDhp 20-rDhp 40-rDhp 50-r
