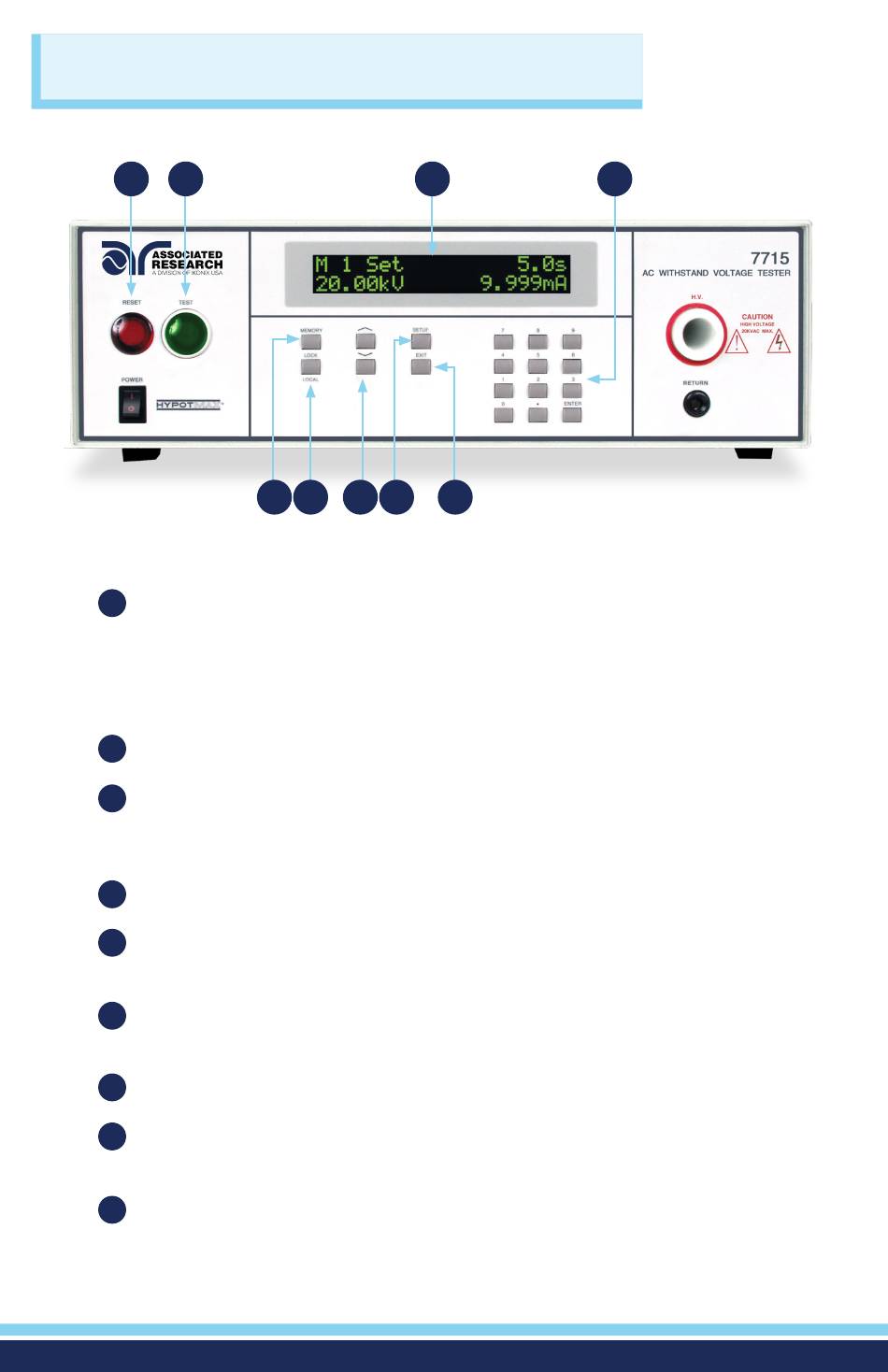

FRONT PANEL CONTROLS

1 2
1
RESET BUTTON: Resets the instrument. If a failure condition occurs during a
test, pressing this button will reset the system, shut off the alarm and clear
the failure condition. The Reset button must be pressed before performing
another test or changing any of the setup parameters. This button also
serves as an abort signal to stop any test in progress.
2 TEST BUTTON: Starts a test.
LCD DISPLAY: The 2x20-character display indicates test function, memory
3
location, test parameter and failure type as well as test measurements
during a test.
4
DATA ENTRY KEYS: Keys to input numeric parameters.
5
MEMORY KEY: Use this key to select one of the 50 memories to modify or
run stored test parameters.
6 LOCK/LOCAL KEY: Enters key lockout mode. Use this key when you wish to
go from the Remote operation of the instrument to the Local mode.
7
UP-DOWN ARROW KEYS: Keys to cycle through test parameter setup.
8
SETUP KEY: Use this key to enter the setup menu and view or change the
display contrast, alarm volume, and PLC remote settings.
9 EXIT KEY: Use this key to exit any menu or to clear an unwanted entry in a
parameter field.
3
5 6 7 8 9
2
4
