IKONIX ASSOCIATED RESEARCH HypotMAX 7705 Quick Start Manual page 3

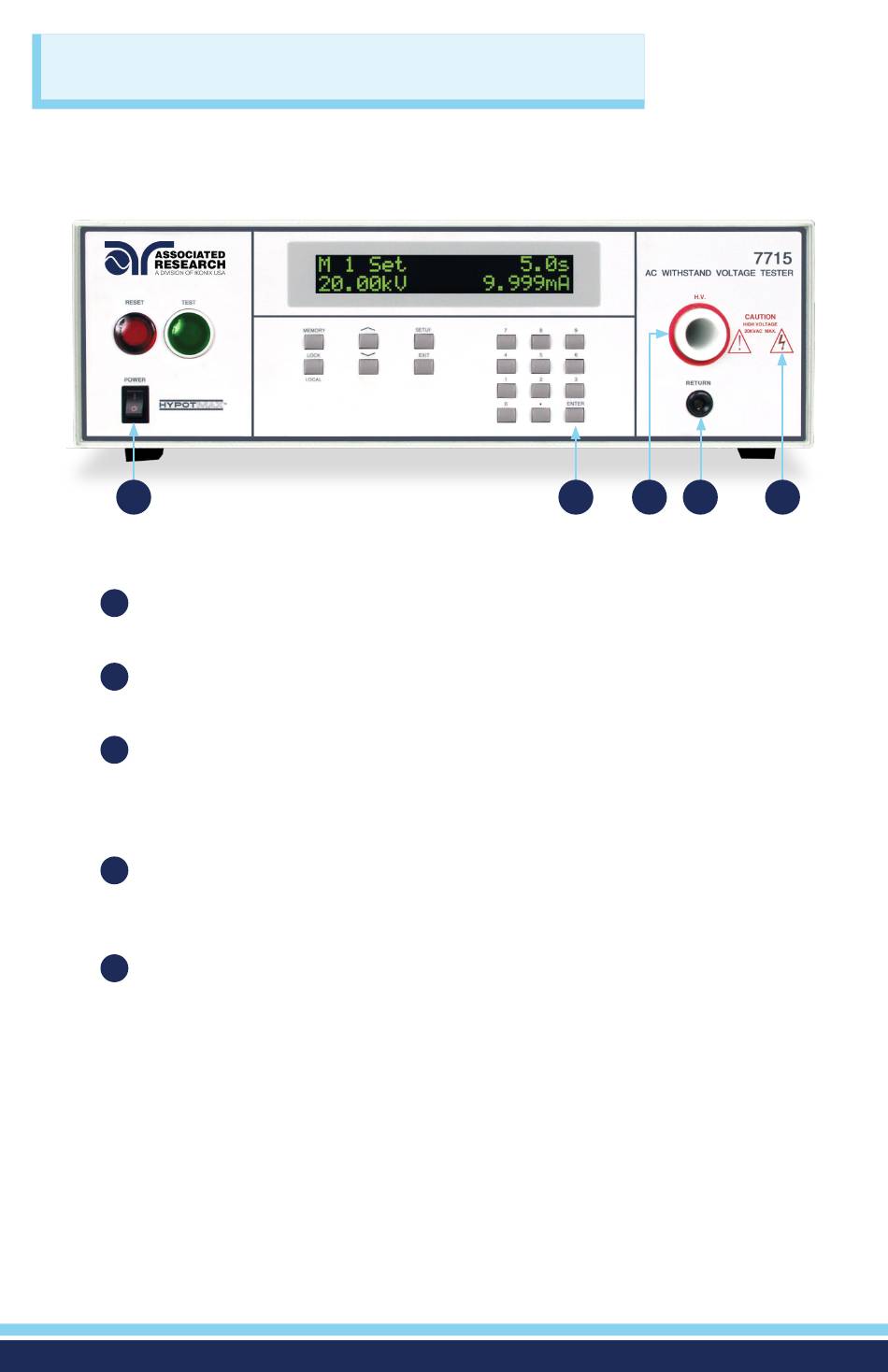

FRONT PANEL CONTROLS
10
10
POWER SWITCH: Rocker style power switch with international ON ( | )
and OFF (0) markings.
11 ENTER KEY: Use the ENTER key to accept numeric data for parameter
settings.
HIGH VOLTAGE OUTPUT TERMINAL: Connector used to attach the high
12
voltage test lead, adapter box high voltage lead or test fixture high voltage
lead to the instrument. This connection provides the high voltage used
during a Hipot test.
13 RETURN OUTPUT TERMINAL: Connector used to attach the return test lead,
adapter box return lead or test fixture return lead to the instrument. This
connection provides the return current path.
14 HIGH VOLTAGE INDICATOR: This indicator flashes to warn the operator
that high voltage is present at the high voltage output terminal.
11
3
12 13 14
