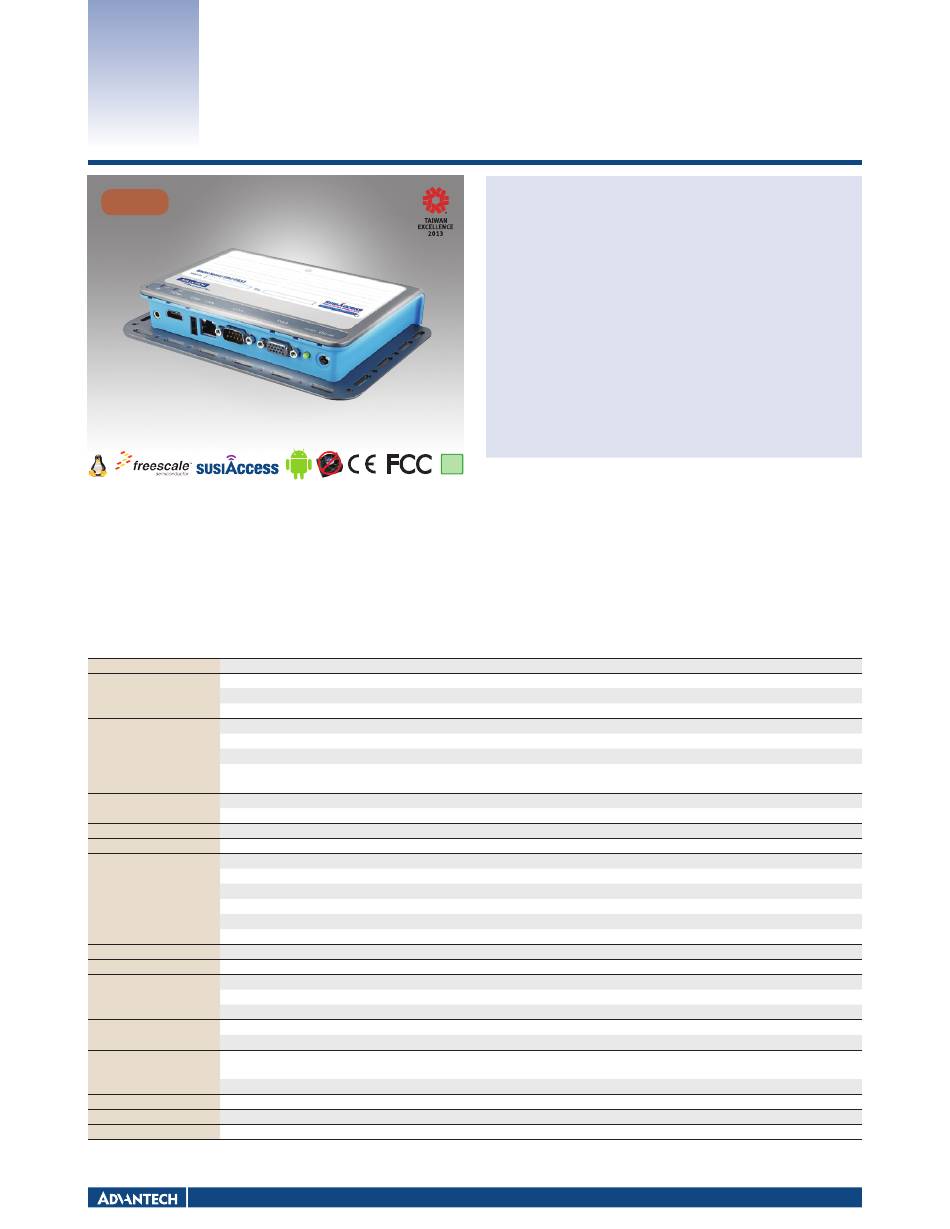

UBC-DS31
NEW

Introduction

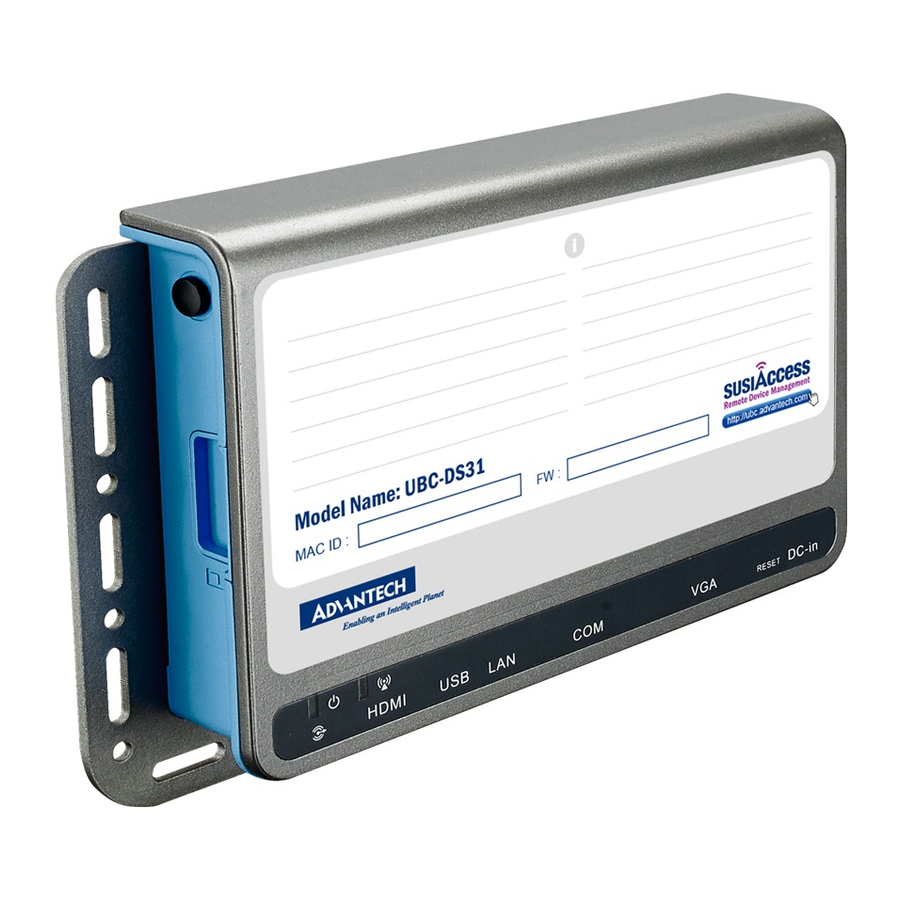

UBC-DS31 provides enough power for Full HD video, and is powered by a Freescale ARM Cortex-A9 i.MX6 dual-core high performance processor with built-in Gigabit Ethernet for
networking. It is easy to set up with its compact size and flexible mounting design, including wall mount, and VESA 75/100 mount. UBC-DS31 is easy to assemble in any application
environment and comes preloaded with SUSIAccess software for remote management and Signage Player control.
SUSIAccess for signage is based on the Linux QT framework, and integrates multiple functions including content production and device management. "Content Producer" includes
a content editor, layout editor and content description; "Device Conductor" supports status monitoring, content dispatch and firmware updates. Users can manage and control the
content of all devices through Ethernet from servers and management centers

Specifications

Processor System
CPU
Technology
Memory
Capacity
Flash
HDMI
VGA
Graphics
Graphics Engine
H/W Video Codec
Chipset
Ethernet
Speed
RTC
RTC
WatchDog Timer
WatchDog Timer
USB
Audio
SPDIF
I/O
SDIO
Serial Port
Button
Indicator
LED
Expansion
SD Socket
Power Supply Voltage
Power
Power Type
Power Consumption
Operational Temperature
Environment
Operating Humidity
Dimensions (W x D)
Mechanical
Mounting
Mechanical
Weight
Operating System
SUSIAccess
Certifications
RISC Computing Platforms
All product specifications are subject to change without notice

Features

ƒ Freescale i.MX6 Cortex-A9 Dual 1 GHz
ƒ On-board DDR3 1 GB & 4 GB Flash
ƒ Supports Full HD 1080P H/W video codec engine
ƒ Giga LAN networking capability
ƒ Low power, fanless design
ƒ Supports wall mount, VESA mount and a flexible mount with 2 screws
ƒ Removable cover for SD card
ƒ SUSIAccess for Signage
RoHS
COMPLIANT
2002/95/EC
Freescale ARM Cortex-A9 i.MX6 Dual 1 GHz
DDR3 1066 MHz
On-board DDR3 1 GB
4 GB eMMC NAND Flash for O.S. and 4 MB SPI NOR Flash for Advantech boot loader
1
1
2 IPUs. OpenGL ES 2.0 for 3D, BitBlt for 2D and OpenVG 1.1
Decoder: MPEG-4 ASP, H.264 HP, H.263, MPEG-2 MP
Encoder: MPEG-4 SP, H.264 BP, H.263
Freescale i.MX6 integrated RGMII
1 10/100/1000 Mbps
Yes
Yes
1
1 Line-out
-
1 x SD slot
1 x RS-232 (CTS,RTS,Tx, Rx)
1 Reset button
2 Green LED for the system power and RF status
1 SD slot
12 V
DC
DC-in
2.3 Watts
0 ~ 40° C
5%~95% Relative Humidity, non-condensing
191 x 129 x 30 mm with metal plate
166 x 117 x 30 mm without metal plate
Wall mount, VESA 75/100, Flexible mount with two screw holes on the metal plate
265g
SUSIAccess for Signage/ Android
CE/FCC Class B
Freescale ARM Cortex-A9 i.MX6
Full HD RISC Signage Box
Last updated : 15-Jan-2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UBC-DS31 and is the answer not in the manual?

Questions and answers

Summary of Contents for Advantech UBC-DS31

  • Page 1 UBC-DS31 provides enough power for Full HD video, and is powered by a Freescale ARM Cortex-A9 i.MX6 dual-core high performance processor with built-in Gigabit Ethernet for networking. It is easy to set up with its compact size and flexible mounting design, including wall mount, and VESA 75/100 mount. UBC-DS31 is easy to assemble in any application environment and comes preloaded with SUSIAccess software for remote management and Signage Player control.
  • Page 2 170203183C Power Code 3P Europe (WS-010+WS-083)183cm 170203180A Power Cord 3P UK 2.5A/3A 250V 1.83M 1700001524 Power Cord 3P UL 10A 125V 180cm 1990022422S000 Fixed rail 71.3Lx6.2W mm YJC-64C for UBC-DS31 1990022423S000 Fixed ring DIA:7.5-8.5 FWM-8K for UBC-DS31 Online Download www.advantech.com/products...
