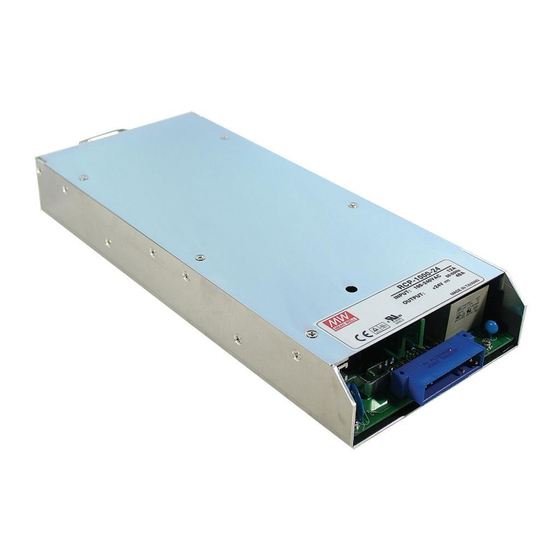

- Page 1 RCP-1000 / RCP-1U Instruction Manual...
-
Page 2: Table Of Contents
0. Safety Guidelines......................Introduction of Series Models ......................................1 Introduction ......................Features ....................... Order Information ...................... Main Specification Mechanical Specification and Input / Output Terminals ............................Mechanism of Single Unit ................. Mechanism of Whole Rack System Functions ........................ -
Page 3: Safety Guidelines
RCP-1000 or RCP-1U by yourself! ¡ · Please do not change any component on the RCP series by yourself or make any kind of modification on it. ¡ · Please do not install the RCP series in places with high moisture or near the water. -
Page 4: Main Specification
¡ · ¡ ¼ Rack (RCP-1U ): RCP-1UI RCP-1UT CN500 CN500 ON/OFF (A) ON/OFF (A) 100-240VAC 100-240VAC AC-OK (A) AC-OK (A) INPUT: 13A EACH INPUT DC-OK (A) INPUT: 13A EACH INPUT DC-OK (A) V-TRIM (A) V-TRIM (A) 50/60Hz 50/60Hz T-ALARM (A) T-ALARM (A) +5V-AUX +5V-AUX... -
Page 5: Mechanical Specification And Input / Output Terminals
¡ · Rack system ¡ ¼ ¡ ¼ ¡ ¼ MODEL RCP-3K1U -12 RCP-3K1U -24 RCP-3K1U -48 MODULE RCP-1000-12 RCP-1000-24 RCP-1000-48 RACK RCP-1UI or RCP-1UT OUTPUT VOLTAGE OUTPUT MAX. OUTPUT CURRENT 180A 120A MAX. OUTPUT POWER 2160W 2880W 3024W Note.6 VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC... -
Page 6: Mechanism Of Whole Rack System
Input / Output Connector Pin. No Assignment(CN501) : Postronic P CIB24W9M400A1 Pin No. Assignment Pin No. Assignment Pin No. Assignment Pin No. Assignment Mating Housing AC_OK +5V_AUX 1,2,4 3,5,6 DC_OK GND_AUX Postronic ON/OFF PCIB24W9F400A1 V_TRIM AC/ L T_ALARM AC/ N Mechanism of Whole Rack System Address CN500... -
Page 7: Functions
PFC function or even be damaged. ¡ · Since the RCP Series have built-in active PFC circuit, there will be lower efficiency and output derating is required when operating at lower input voltage (<100VAC). Inrush Current Limiting ¡... - Page 8 3.5.3 Wiring of output voltage adjustment (use voltage trimming function) V-TRIM-A RCP-1U V-TRIM-B V-TRIM-C Figure 3-1: Voltage trimming by using external resistors The resistors R1, R2 mentioned in Figure 3-1 should be added independently and the minimum wattage rating is 0.1W. Please refer to 3.5.4~3.5.6 about the selection of resistance.
-
Page 9: Fan Speed Control
Built-in fan malfunction protection circuit. When the DC fan stop operating (fan lock or wire broken), the output will be shut down. Please switch off the AC source and send back to our local distributor or MEAN WELL for repair. -
Page 10: Hot-Swap Operation
¡ · Notice: It is required to use the "Remote Sense" function to let the PSU work properly. If not, the "Local Sense" is still required that "+S" should be shorted to "+V" and "-S" to "-V" as Figure 3-5. Or the output voltage will be too high which may trigger the over voltage protection. -
Page 11: Series Operation
CN500 RCP-1U#1 ON / OFF-A ON / OFF-B ON / OFF-C CN500 RCP-1U#2 LOAD ON / OFF-A ON / OFF-B Twisted ON / OFF-C wires CN500 RCP-1U#3 Figure 3.7: Three racks connected in parallel ON / OFF-A ON / OFF-B ON / OFF-C ¡... - Page 12 3.20.1 Block diagram of I C data bus and related components AC Input Fail Output Power Good PCF8574 Temperature Waring Register Over Temperature Protection Fan Fail PCF8591 Converter AT24C02 EEPROM I C bus 3.20.2 Address of I C bus ¡ ¼ Address is set by a 9-pole DIP switch on the rack.
- Page 13 PCF8574 slave address: Value Read : 1 Write : 0 3.20.4 Analog status display function (Read Only) 1.Analog functions are provided by a single PFC8591, 4-channel 8-bit A/D converter. When this device is read by the serial bus controller, it provides an 8-bit word with the following information: A/D Channel Information Output voltage...
-
Page 14: Notes On Operation
RCP-1UT Address Input (C,B,A) Output CN500 Switch RCP-1UI Air flow direction Module C Module B Module A 10.6 DC OK AC OK DC OK AC OK DC OK AC OK 466.2 483.6 Figure 4-1: System assembly diagram of RCP series... -
Page 15: Derating
Warranty ¡ · Three years of global warranty is provided for RCP series under normal operation. Please do not change any component or modify the unit by yourself or MEAN WELL may reserve the right not to provide the complete...
